Foxfield 1U Tiles – Full DIY Kits

£10.50£21.00

A selection of 1U utility modules in the Pulp Logic / Erthenvar format. Not compatible with Intellijel cases.



EU Price does not include EU VAT

£16.50

In stock

£21.00

In stock

£16.50

In stock

£16.50

In stock

£10.50

In stock

SKU: Group_Foxfield Categories: , , , , ,

Description

We’re very pleased to offer five new DIY kits from Foxfield Instruments in the 1U format. All these kits are for the Pulp Logic / Erthenvar 1U format and are
NOT COMPATIBLE WITH INTELLIJEL 1U SYSTEMS.

Note: All of these kits feature SMD components apart from the Tile Tail Adaptor

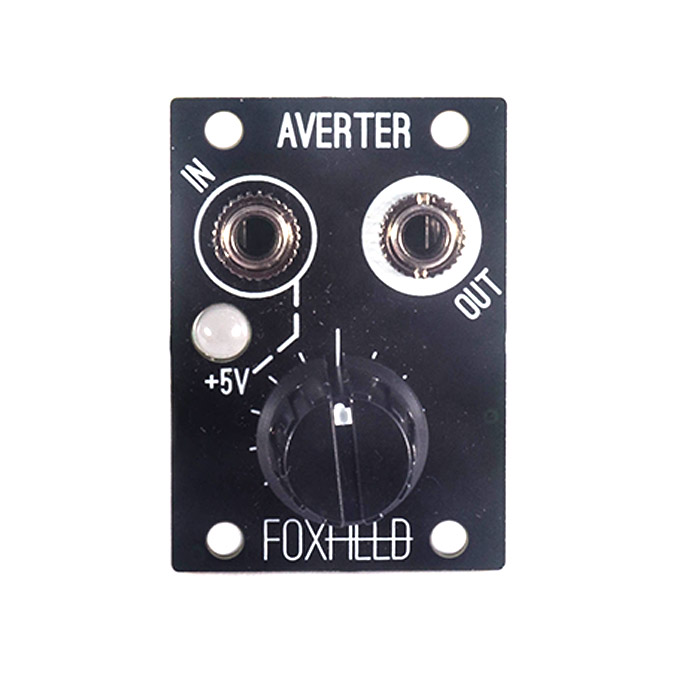

Averter

The Averter is an attenuverter that is normalised to +5 Volts. Use it to scale or invert voltage sources, or emit a fixed voltage from -5V to +5V. A bicolour LED indicates the voltage coming out of the OUT jack.

Averter Build Document

  • Power connector: Pulp Logic “Tile Tail”.
  • Width: 6HP
  • Power consumption: 16mA +12V, 13mA -12V

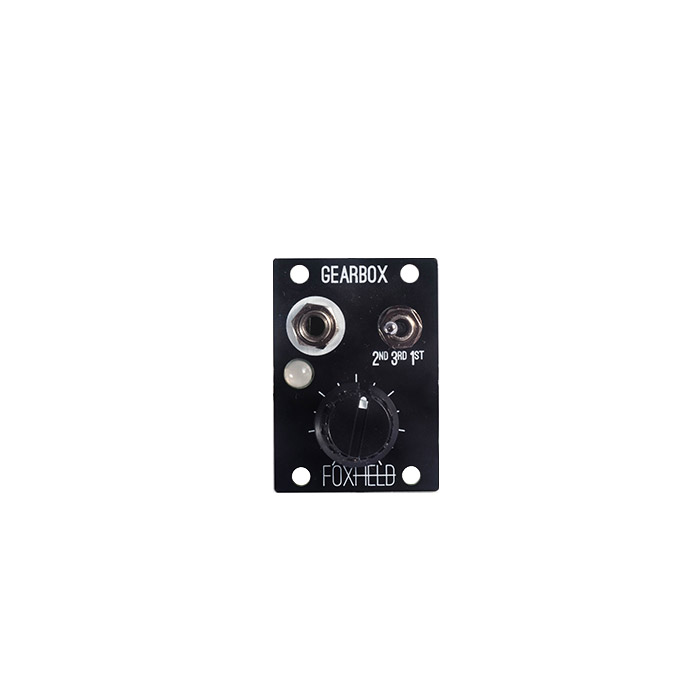

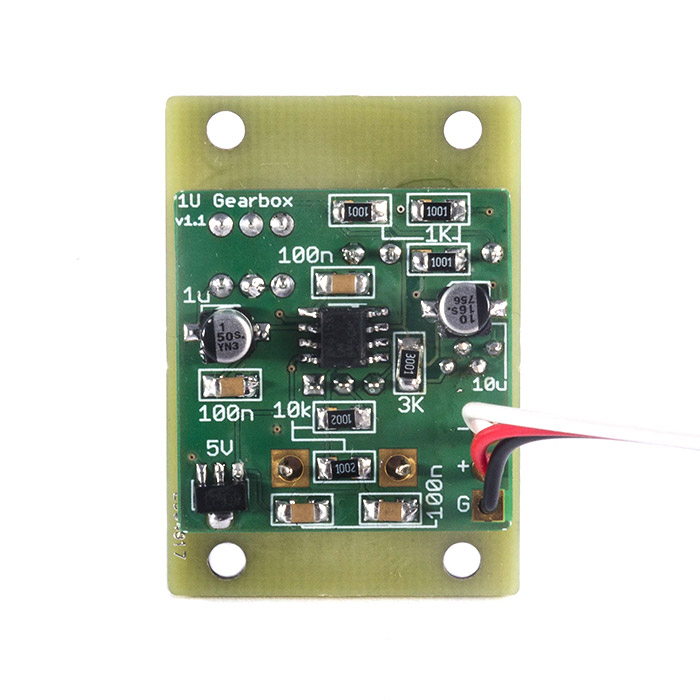

Gearbox

The Gearbox is a variable clock source. The output of the module produces a 0-5V square wave, at frequencies from around 100mhz up to 500hz, across three ‘gears’ or frequency ranges. An RGB LED blinks in time with the clock output, changing its colour to reflect which gear the Gearbox is in.

Gearbox Build Document

  • Power connector: Pulp Logic “Tile Tail”.
  • Width: 6HP
  • Power consumption: 12V: ~0.007a, -12V: 0a
  • Frequency:
    First Gear ranges from 0.13 Hz to 4.7 Hz
    Second Gear ranges from just over 1 Hz to ~45 Hz
    Third Gear ranges from ~14 Hz to 500 Hz

GT2

The GT2 is a Dual Gate-to-Trigger converter. With a gate signal inserted into an input, it will spit out a very brief trigger voltage from it’s output. The first input is normalised to the second, meaning that a gate at the left input (and nothing connected at the right) will emit a trigger from both left and right outputs.

GT2 Build Document

  • Power connector: Pulp Logic “Tile Tail”.
  • Width: 6HP
  • Power consumption: ~10ma

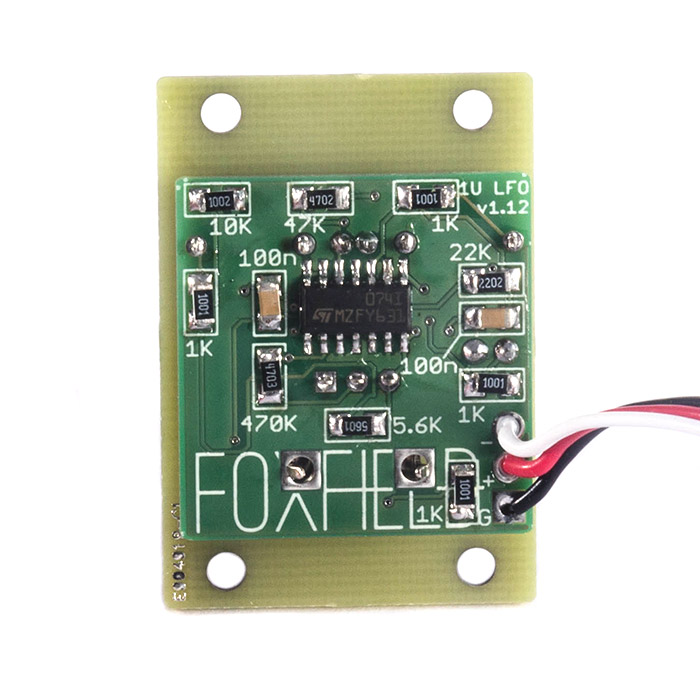

UtiLFO

The UtiLFO is a variable utility LFO, emitting synchronised Triangle and Square waves. The LFO rate can be adjusted via the knob on the front panel. A red/green LED indicates the current voltage of the Triangle output.

UtiLFO Build Document

  • Power connector: Pulp Logic “Tile Tail”.
  • Width: 6HP
  • Power consumption: ~10mA +12V, ~10mA -12V
  • Triangle Wave output: about +/-5V peak to peak
  • Square Wave output: about +/-8V peak to peak
  • Frequency: ~100mhz to ~20hz

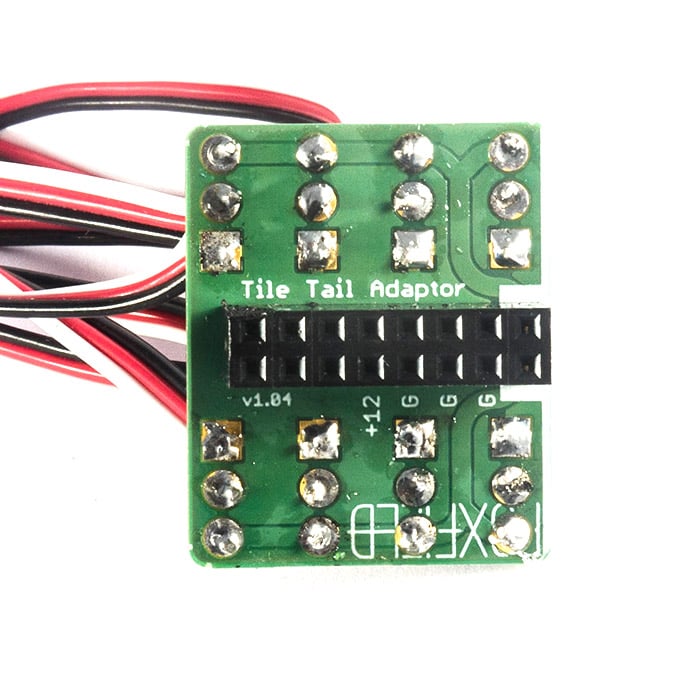

Tile Tail Adaptor

The Tile Tail Adaptor is a power converter for eight tile-tail power connectors from a single sixteen-pin Eurorack power connector. This allows you to power your Tiles from a regular Eurorack busboard or flying bus cable.

Tile Tail Adaptor Build Document
