Frogleg Synthesis – Beetle Power Supply PCB

£8.00

Small footprint power supply ideal for lunchbox cases

EU Price does not include EU VAT

Out of stock - Join the waitlist to be emailed when this product becomes available

Description

IDEAL FOR SMALL LUNCHBOX CASES AND STANDALONE INSTRUMENTS

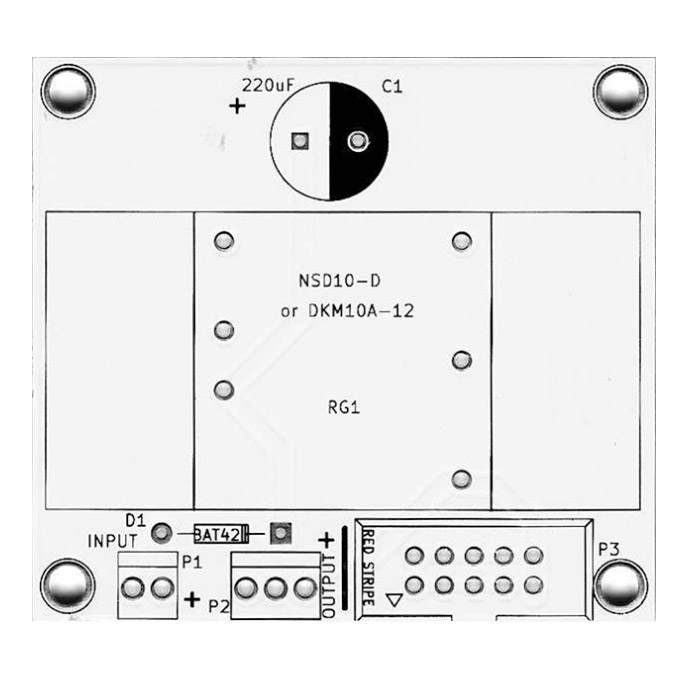

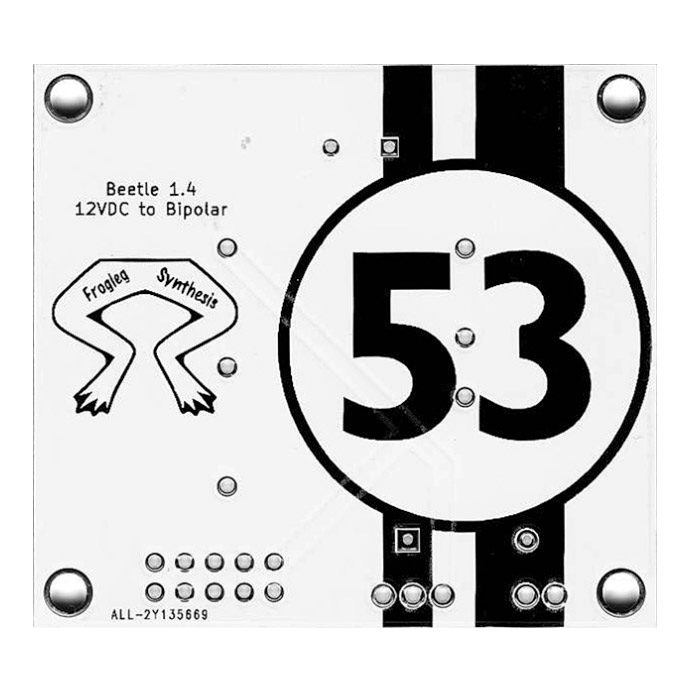

The “Beetle 1.4” provides a simple way to generate 12VDC bipolar power without the need for an AC wall wart.

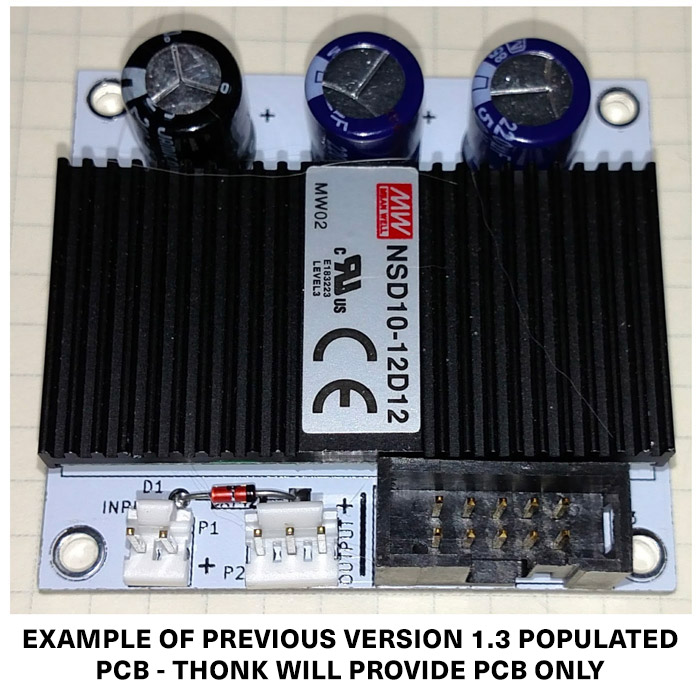

The PCB is designed for a Meanwell NSD10-12D12, which takes 12VDC and generates bipolar +/- 12VDC.  It is intended to be a small power supply for standalone projects – The Meanwell can supply 420mA per rail.

It can also be built with the better (but more expensive) Meanwell DKM10A-12.  It has the same footprint except it’s only 1” square instead of 1” x 2”. The Mouser BOM includes a few other alternative DC-DC converters at various price points that should also work.  DON’T blindly order the Mouser BOM or you WILL end up with several more DC-DC converters than you need.

Build Documention and BOM – Beetle 1.4 Build Doc
Note: This is NOT a full kit but a single PCB.
Dimensions: 51 mm x 46 mm

Additional information

Weight 0.009592 kg
