Music Thing Modular – Workshop Notebook

£10.00 (Excl. VAT)

The Music Thing Modular Workshop Notebook is a 100 page ring-bound A5 notebook made for designing electronics, in particular Eurorack synth modules. Includes free sticker. INCLUDES CODE TO GET 10 GBP OFF ANY MUSIC THING FULL KIT IN A FUTURE ORDER!

RESTOCK COMING DECEMBER 8th 2019

Out of Stock

SKU: Bundle_MTM_Notebook Categories: , Brand:

Description

The Music Thing Modular Workshop Notebook is a 100 page ring-bound A5 notebook made for designing electronics, in particular Eurorack synth modules.

The book includes:

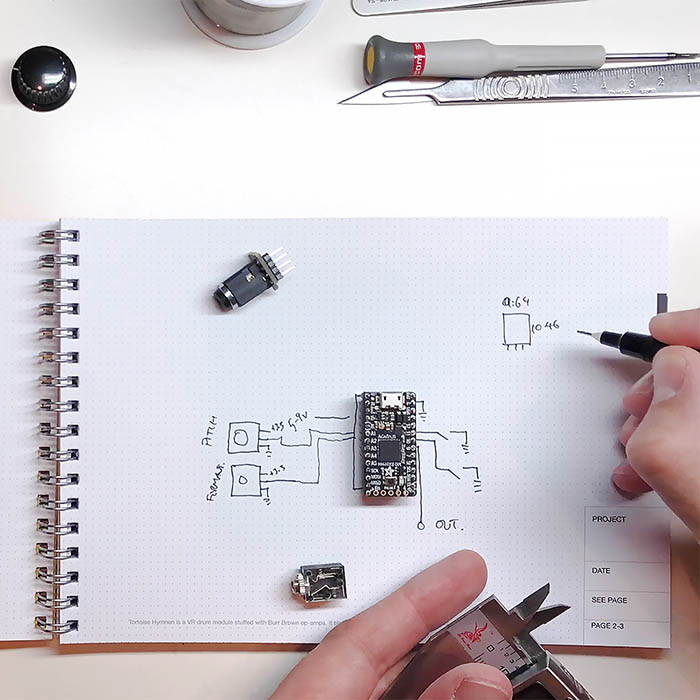

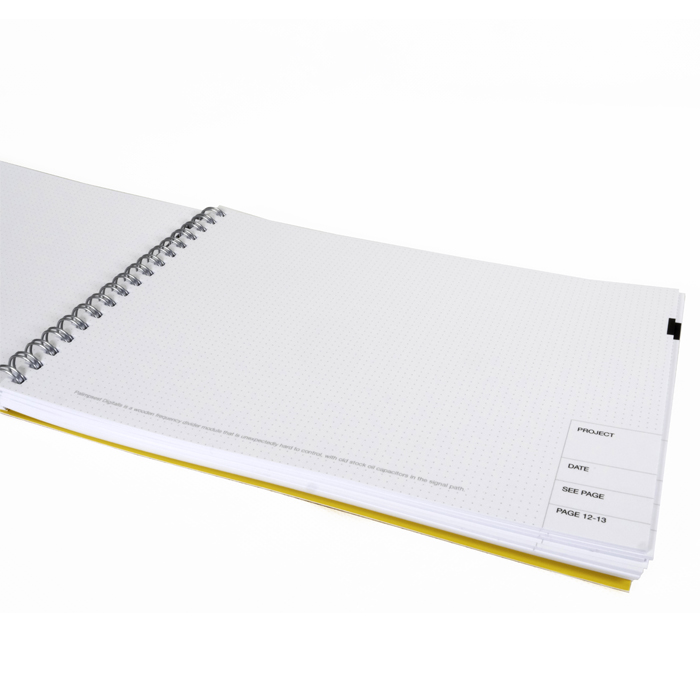

  • 40 pages of dotted notepad paper. The dots are on the 100mil / 2.54mm grid used by most thru-hole electronic components. It’s easy to sketch actual-size layouts, but also works fine drawing schematics, logos, comic strips or lists of ideas.

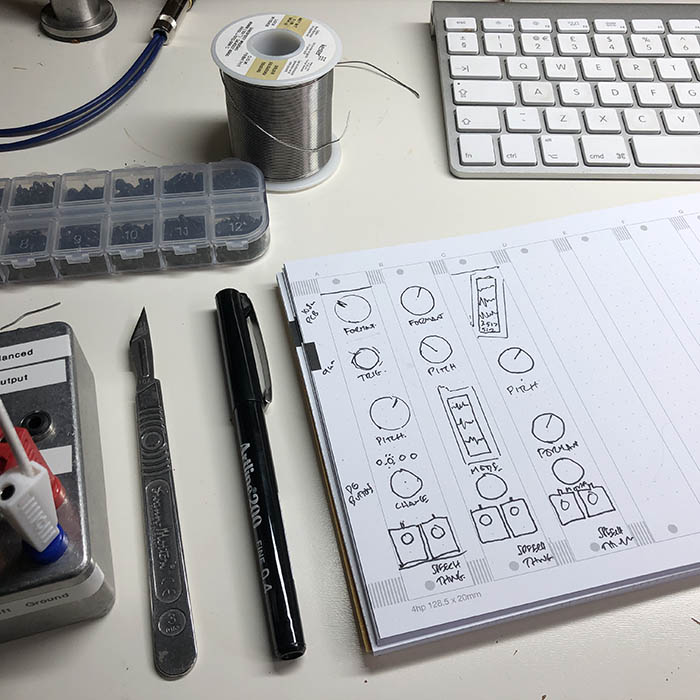

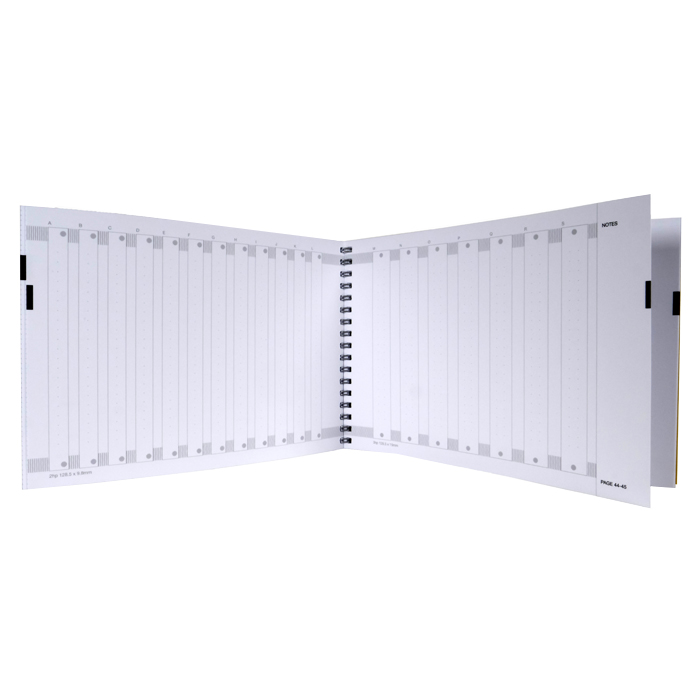

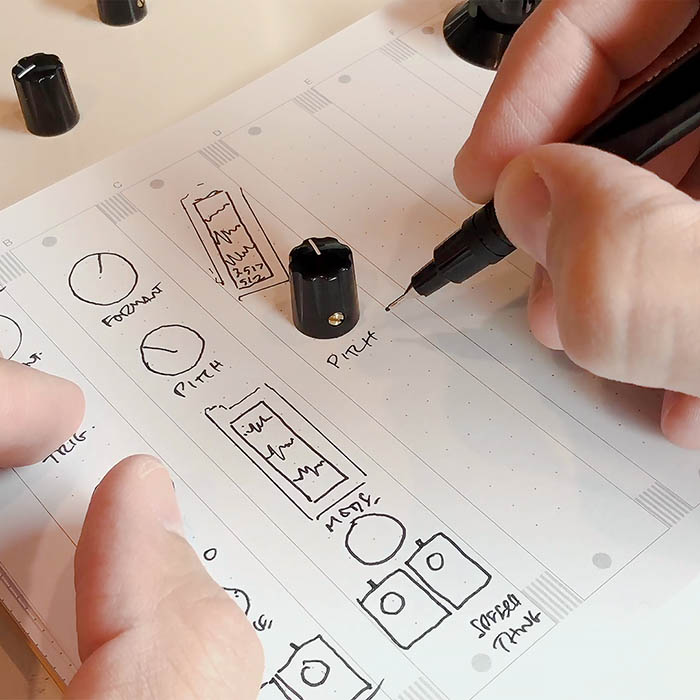

  • 40 pages of blank Eurorack panel layouts, from 2hp to 34hp. There are 145 blank panels in total, including 1U Intellijel and PulpLogic tiles.

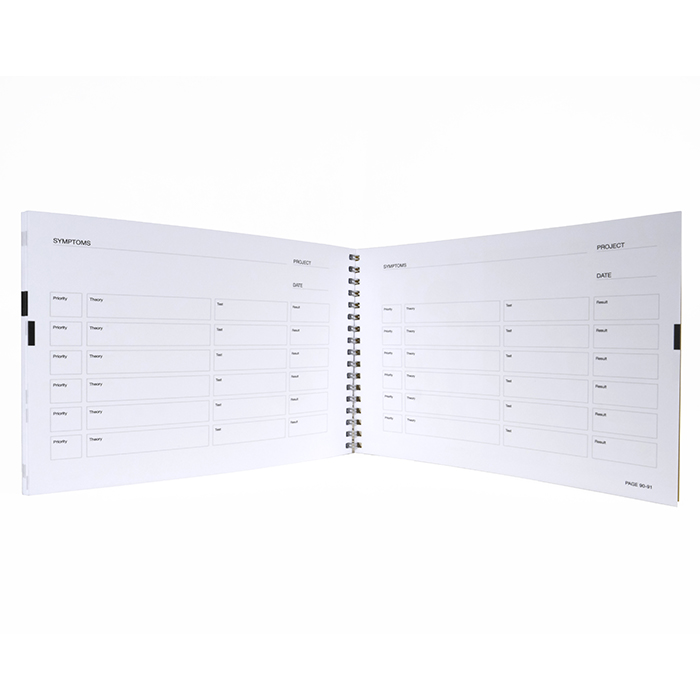

  • 10 pages of rational troubleshooting worksheets, with advice, tips and a structured method for calm troubleshooting when something doesn’t work first time.

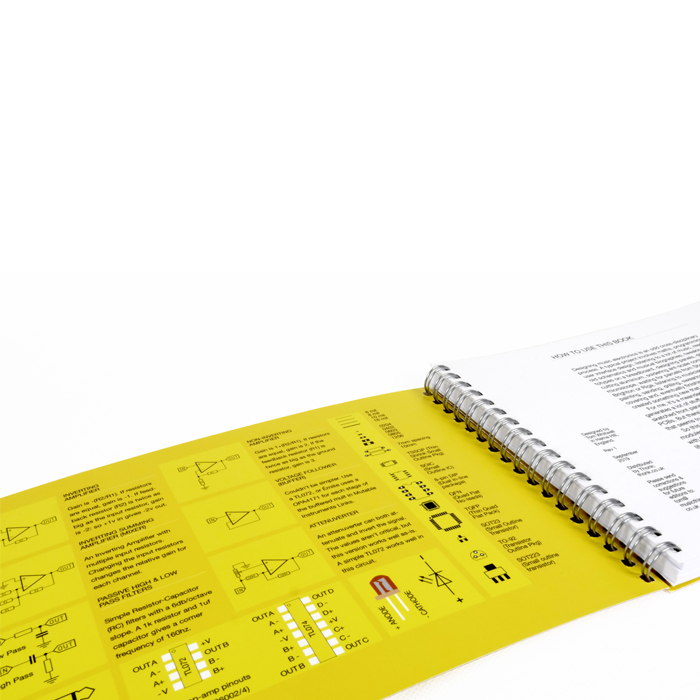

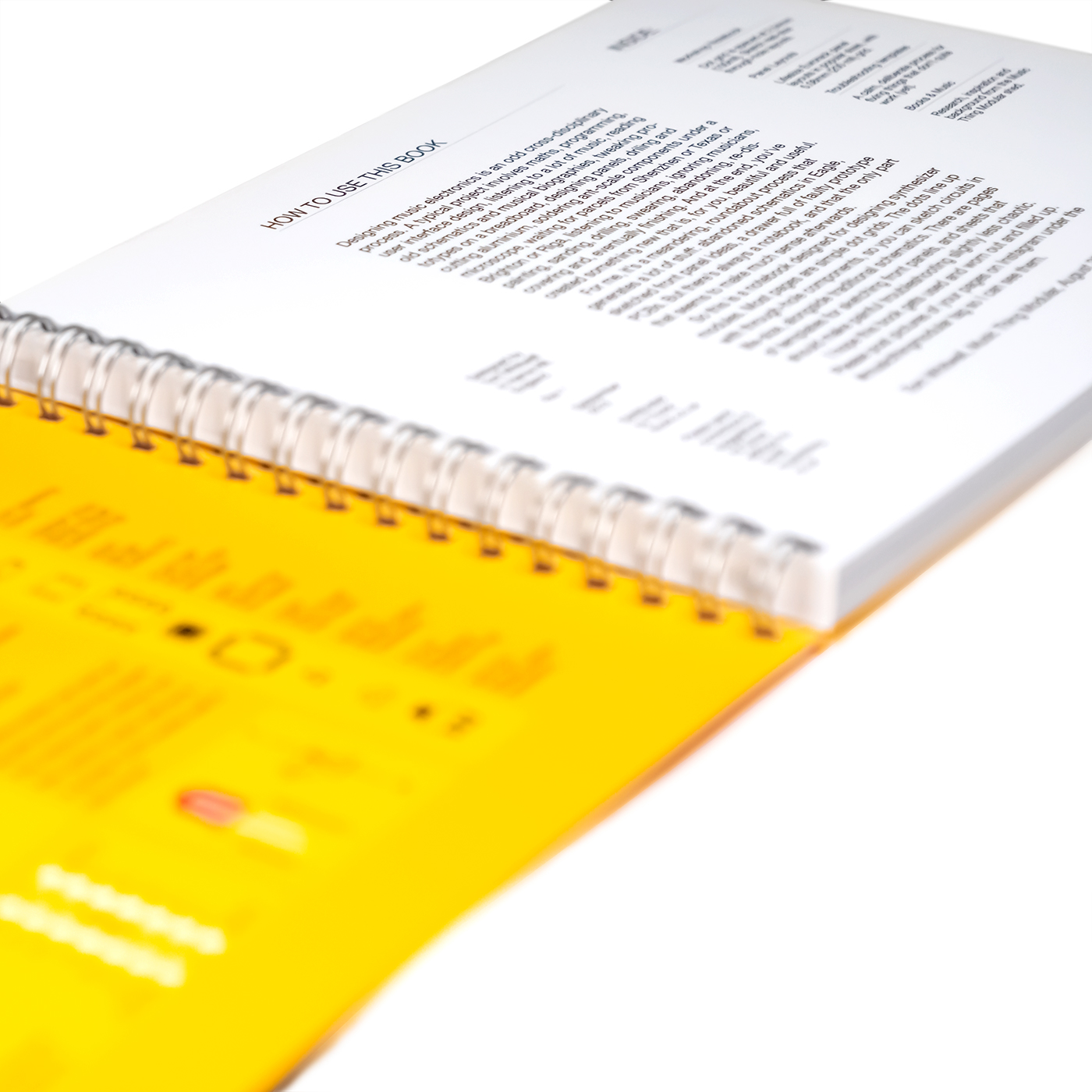

  • The inside book covers contain at-a-glance data and information; pinouts for common chips and sockets, musical frequency tables, standard op-amp configurations.

  • There are also lists of recommended reading, sources of ideas and records to listen to while soldering…



The book is printed on nice thick Sharpie-proof paper, and all the pages are numbered for easy cross-referencing as you build a project across the sections.

Please post pictures of your notebook in use on Instagram under the #musicthingmodular tag, and send corrections or suggestions for a future edition to tom[at]musicthing.co.uk
