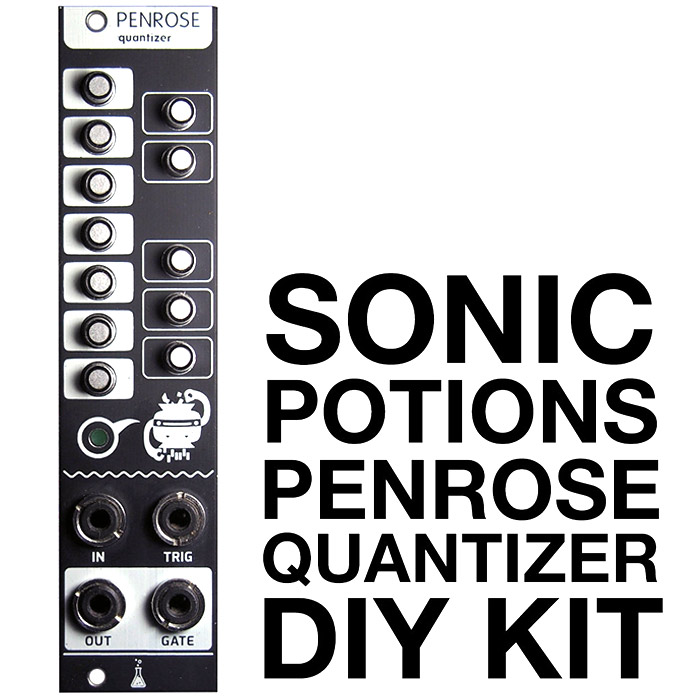

Black Frontpanel Edition

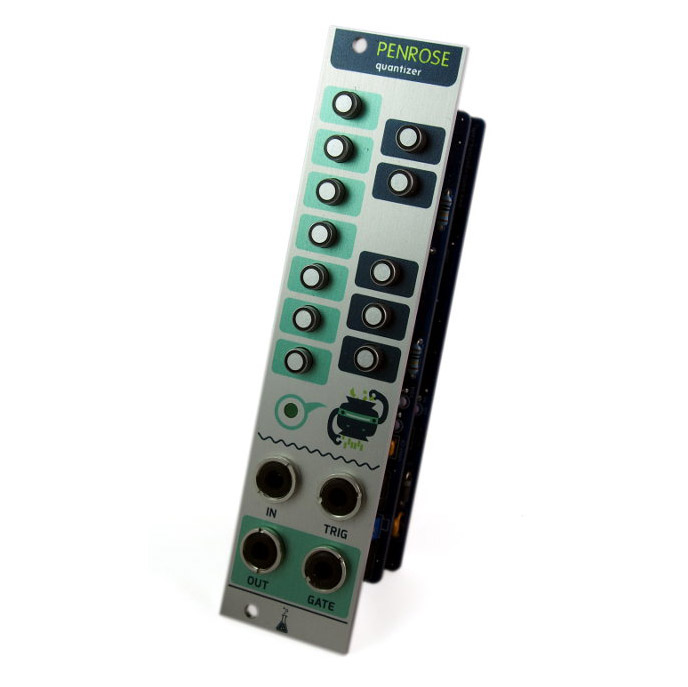

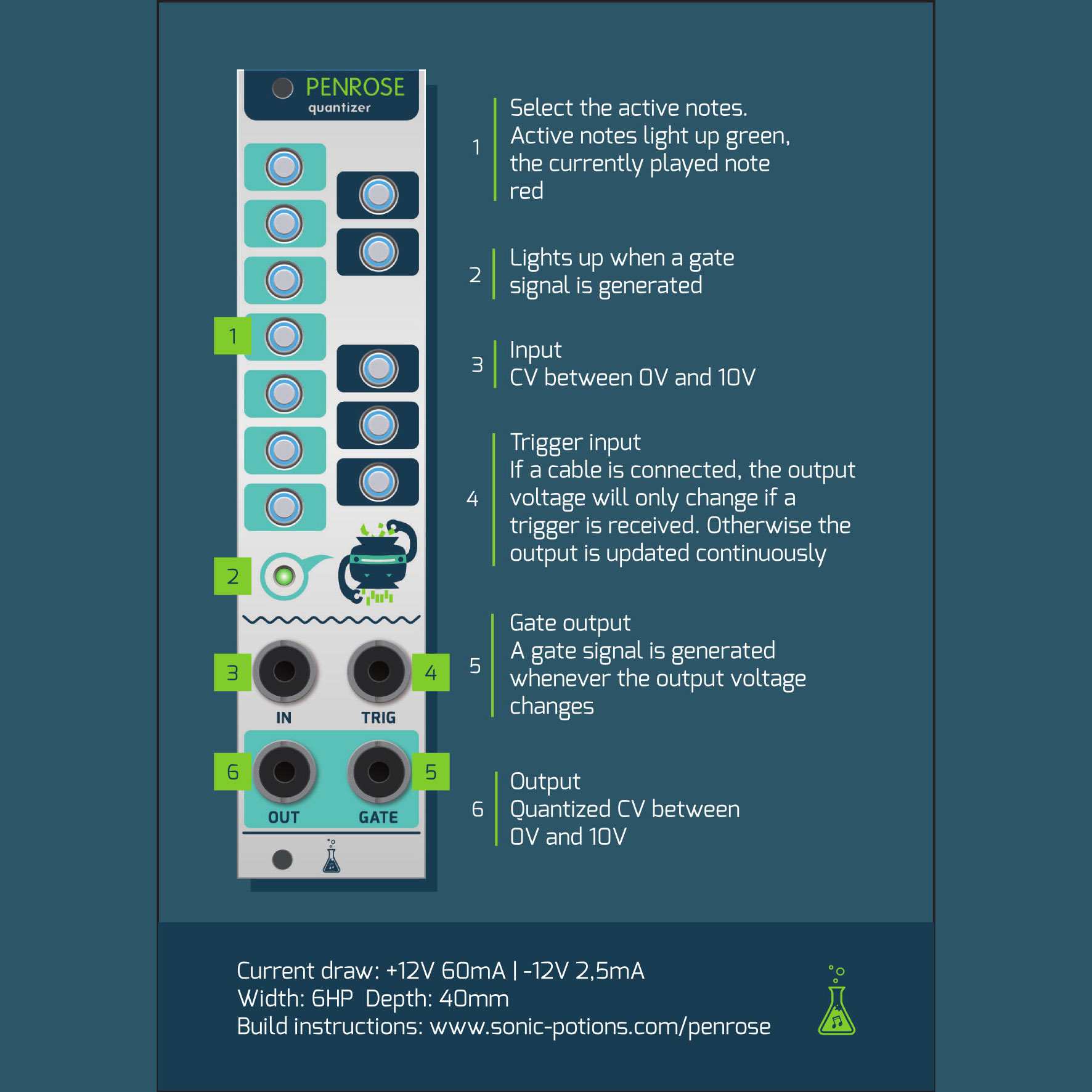

Penrose is a simple CV quantizer DIY kit for the eurorack format. It takes an incoming continuous CV voltage and converts it to the nearest note in a scale. Active notes can be selected with the 12 buttons. You can use it to tune the output of your analog sequencer, as a semi random melody generator, for fast chiptune arpeggios and much more.

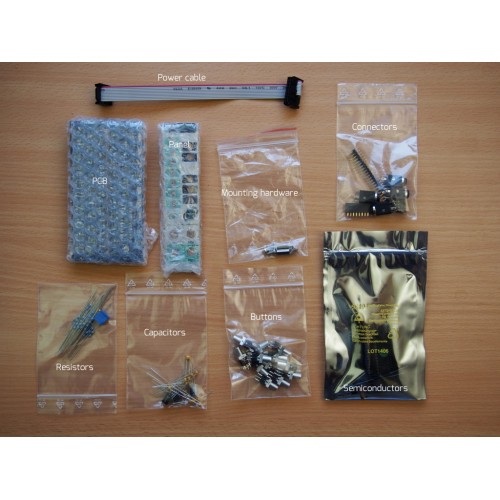

It comes as a complete kit with all needed parts to build it. That includes a multi colour aluminum frontpanel, high quality jacks and illuminated bi-color push buttons.
The project is open source, so the schematic and source code is available.
Current draw: +12V 60mA | -12V 2.5mA
Width: 6HP Depth: 40mm
CV input voltage: 0-10V
CV output voltage: 0-10V
