Eurorack Serge Resonant EQ Full DIY Kit

£221.50 (Excl. VAT)

Officially licensed Serge Resonant EQ in Eurorack

Full DIY Kit with Random Source build documentation.

SKU: Bundle_RS_ResEQ_FullKit Categories: , , , , , Brand: HP Size: 18 HP



We pack these kits with Polystyrene capacitors in the audio path until the higher ranges where we switch to red box Wima caps. Eletrolytics are Nichicon.
SERGE MODULAR FOR EURORACK – Under licence from Serge Tcherepnin

“Serge Modular” is an analogue modular synthesizer system developed by French composer and electronic designer Serge Tcherepnin in the 1970s at The California Institute of the Arts. Serge’s vision to create a “people’s synthesizers” led to a unique modular music system with an iconic design.

In collaboration with and under licence from Serge Tcherepnin, Random*Source offers a range of Serge modules, combining the original Serge circuits with the advantages of today’s technology. The modules on this page are in Eurorack (3U) format – modules in the classic Serge dimension (“4U” panel height) and the typical banana jacks can be found here.

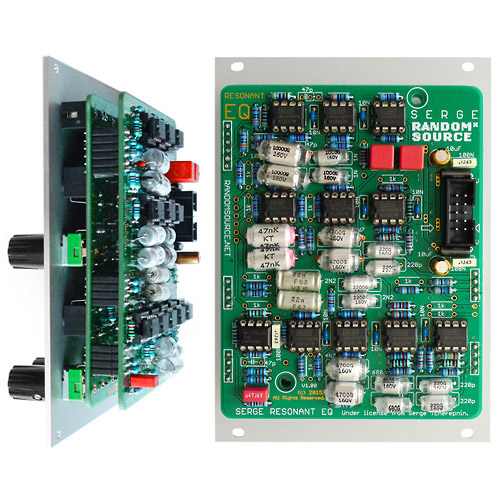

Serge_ResEQ_side_backThe RESONANT EQUALIZER (EQ) is a unique ten-band filter designed specifically for electronic sound synthesis and processing. Except for the top and bottom frequency bands, the bands are spaced at an interval of a major seventh. The Resonant Equalizer is designed to produce formant peaks and valleys similar to those in acoustic insstruments.

There are three equalized outputs: the two COMB outputs provide the sums of the two alternate filter bands, while the two top outputs are the (identical) mix of all filter bands. Please note that there is no sharp separation between the bands, moving any frequency knob will have an influence on both COMB outputs. This equalizer is special in that the bands can be set to be resonant: when the knobs are in the middle position, the response at the main EQ Output is flat. When the knobs are positioned between the 9 and 3 o’clock position, up to 12 db of boost or cut is set at the band. If the knob is set beyond the 3 o’clock position, the band will become resonant, simulating the natural resonance of acoustic instrument formant structures. Below the 9 o’clock position, increased band rejection is achieved.

The Random*Source version of the filter is a licensed and authorized adaption of the legendary Serge equalizer for Eurorack. It adds an input mixer with 2 inputs that can be built/used to attenuate or amplify/distort the input signal(s) before they are sent into the EQ and a Feedback section (knob and phase switch) which allows to feed back the output signal or the inverted output signal (depending on the Phase switch). Adding inverted feedback leads to phase cancellation effects – unlike the “normal” feedback, level decreases and the signal thins out.

Now – licenced by Serge – the legendary EQ is available as DIY kit for Eurorack.

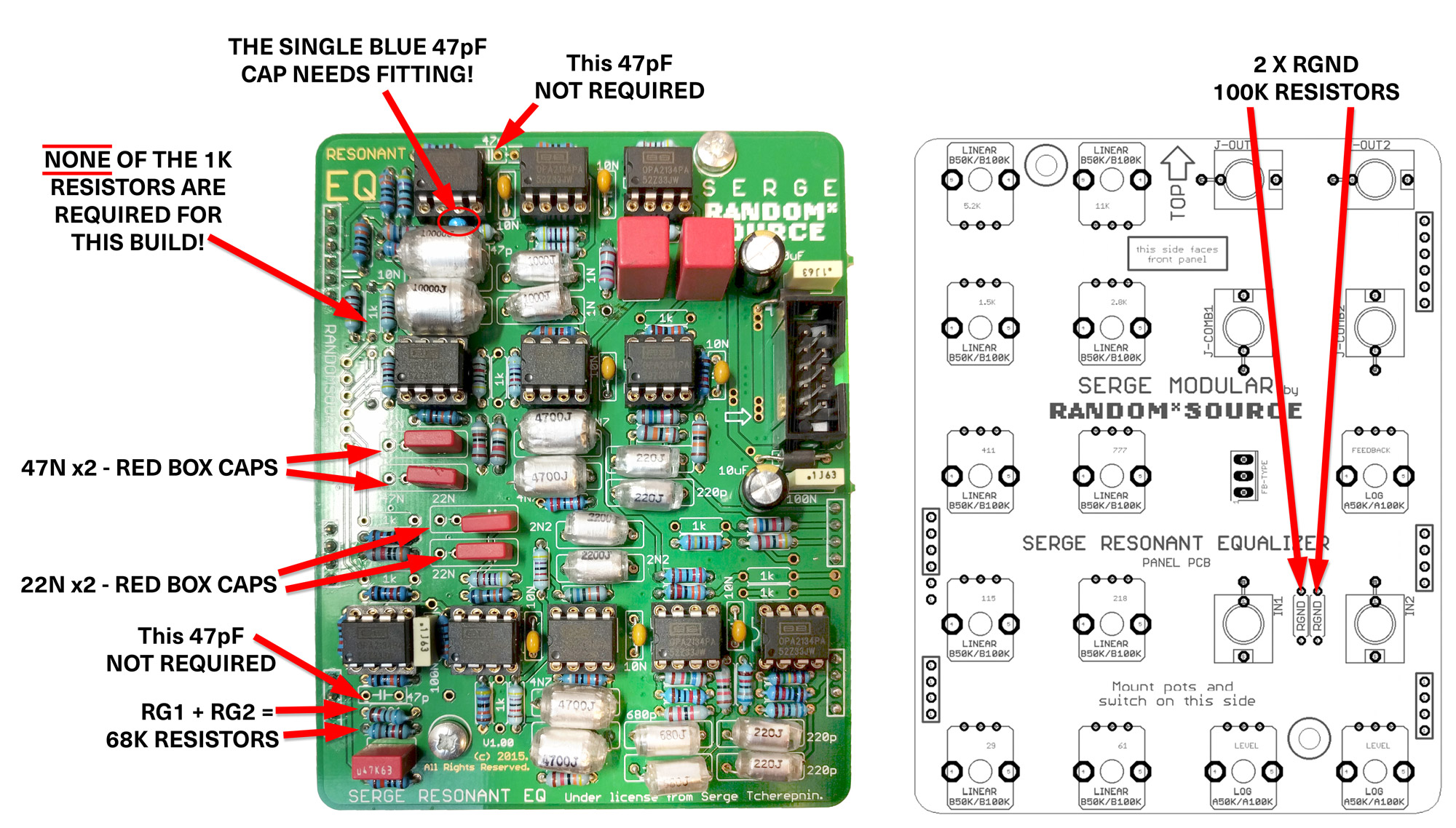

Build documentation and  Thonk Build Image HERE and ALSO HERE

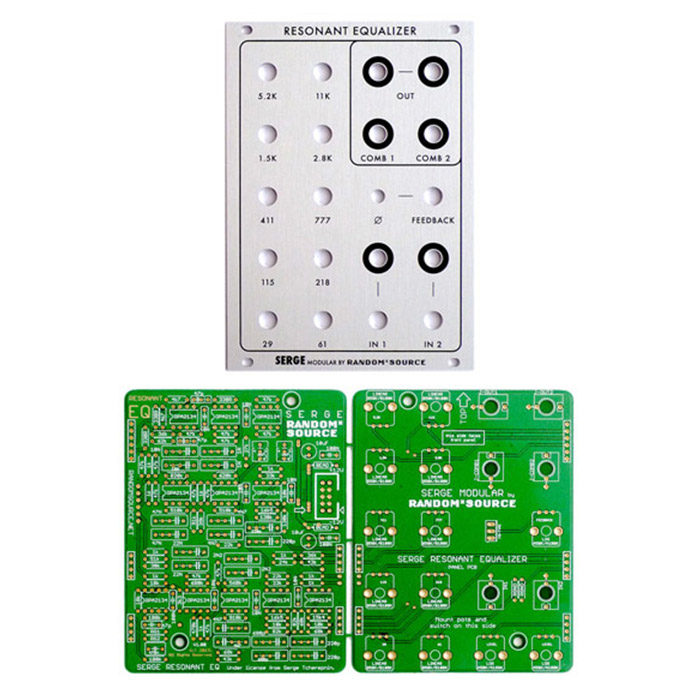

Some details of the Random*Source Serge Resonant EQ module kit:

  • Under licence from Serge Tcherepnin
  • Input mixer / attenuator / amplifier
  • Feedback knob and Phase-switch to add normal or inverted feedback
  • 100% through-hole
  • All parts included down to power cable and rack screws
  • No wiring needed
  • Eurorack format (3U), 18 hp
  • Power consumption: 100mA @ +12V, 100mA @ -12V
  • Module depth: < 38mm (1.5″)
