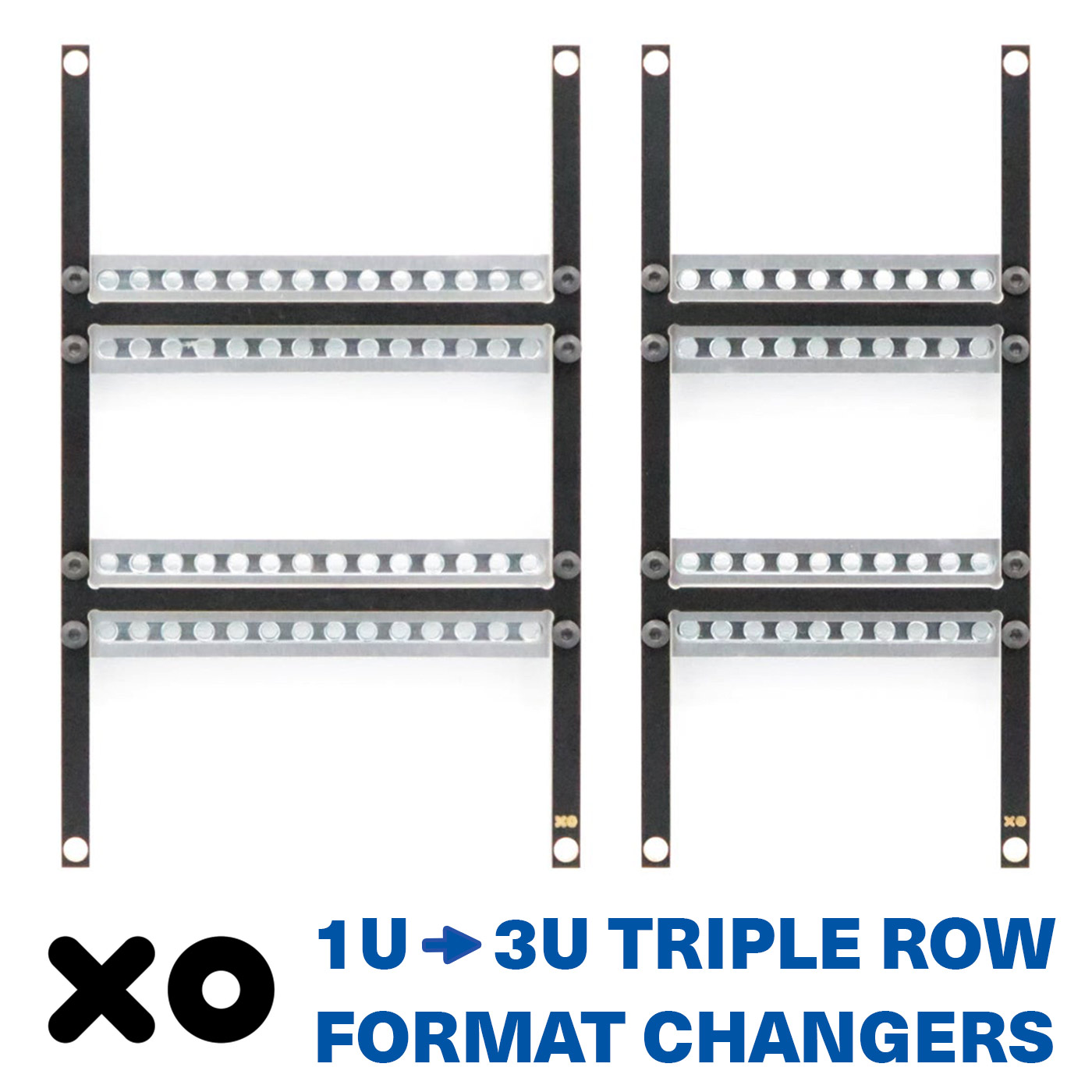

Introducing Xodes FC313 Eurorack 1U to 3U format changers! These clever adaptors mean the use of 1U modules in Intellijel format is no longer restricted to cases with dedicated 1U rows!

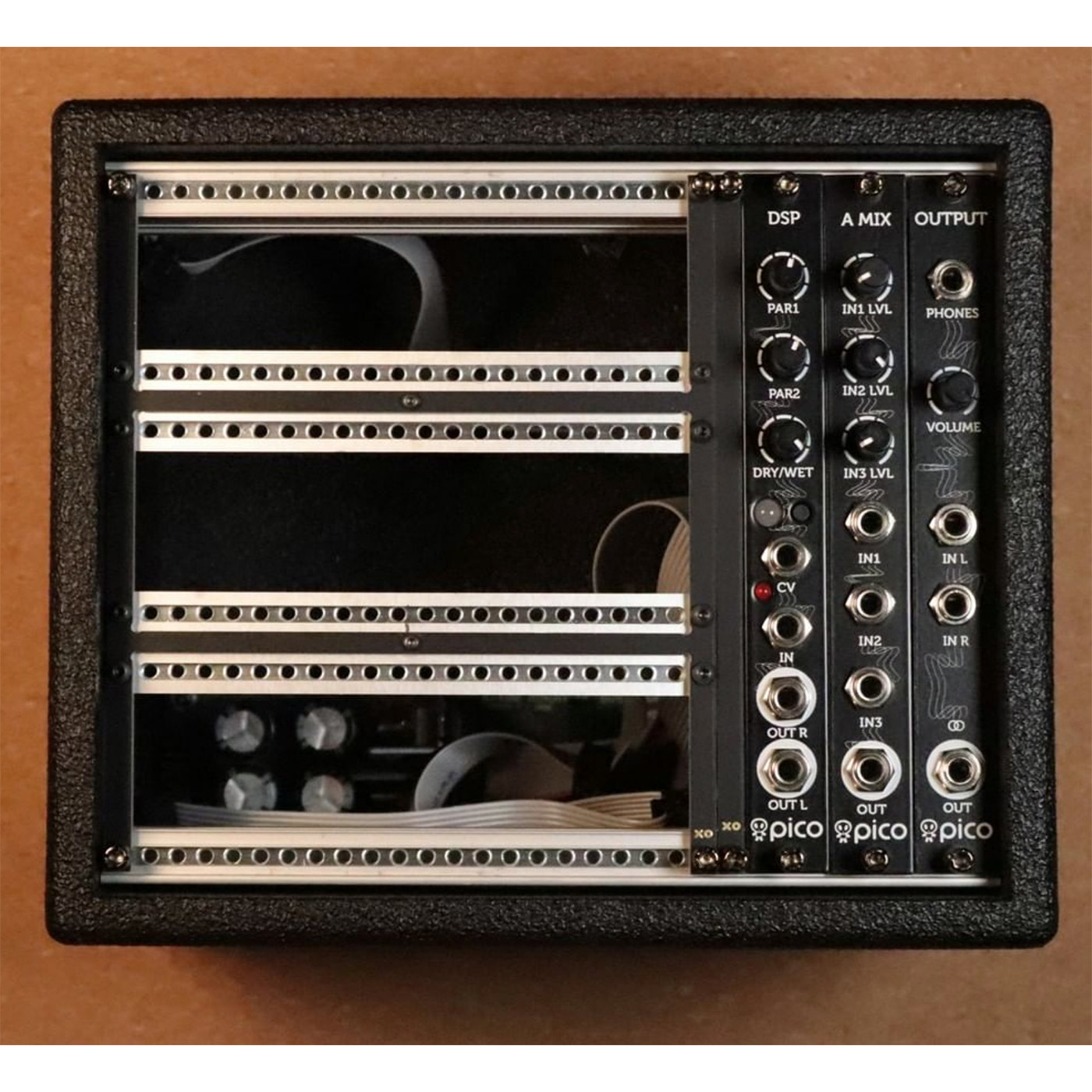

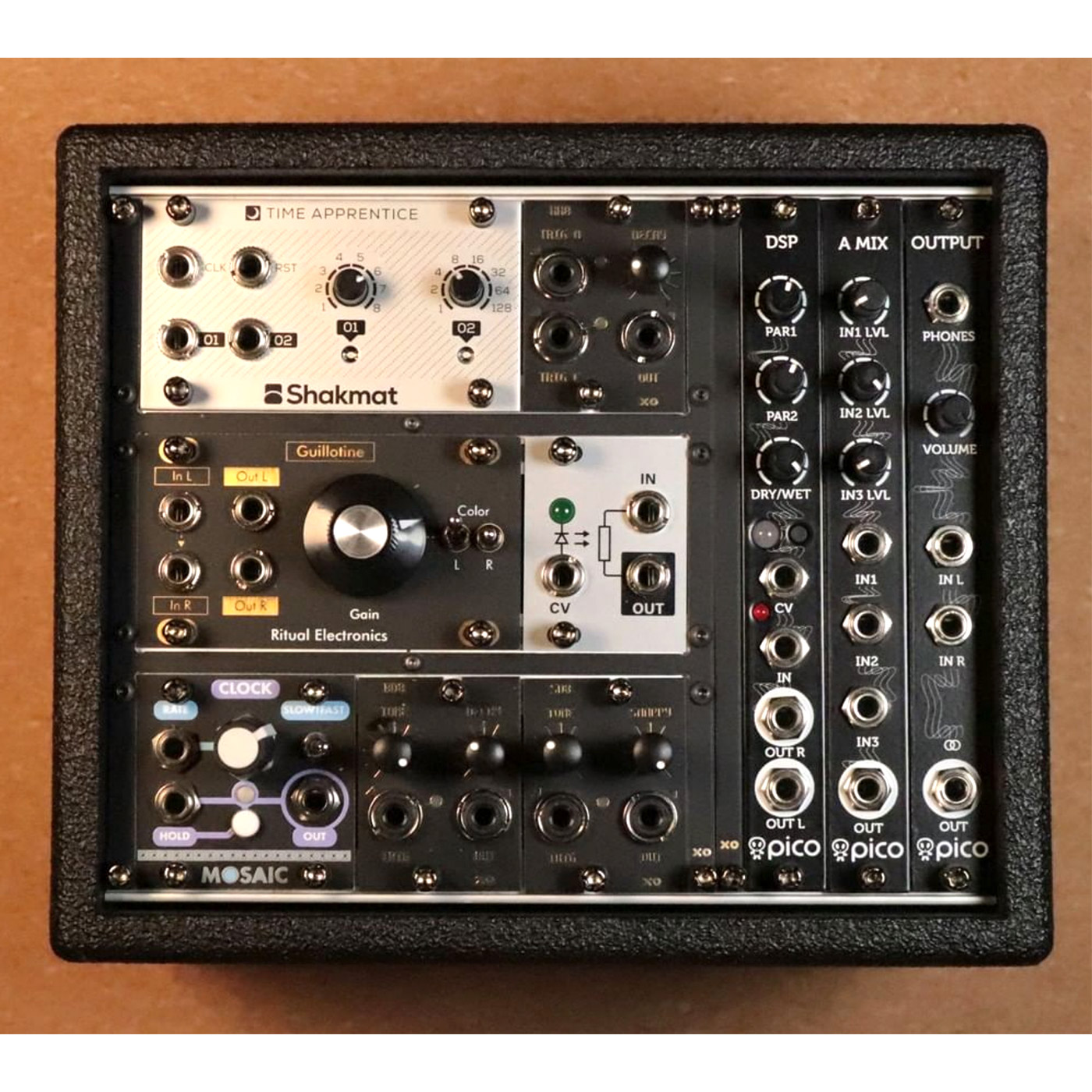

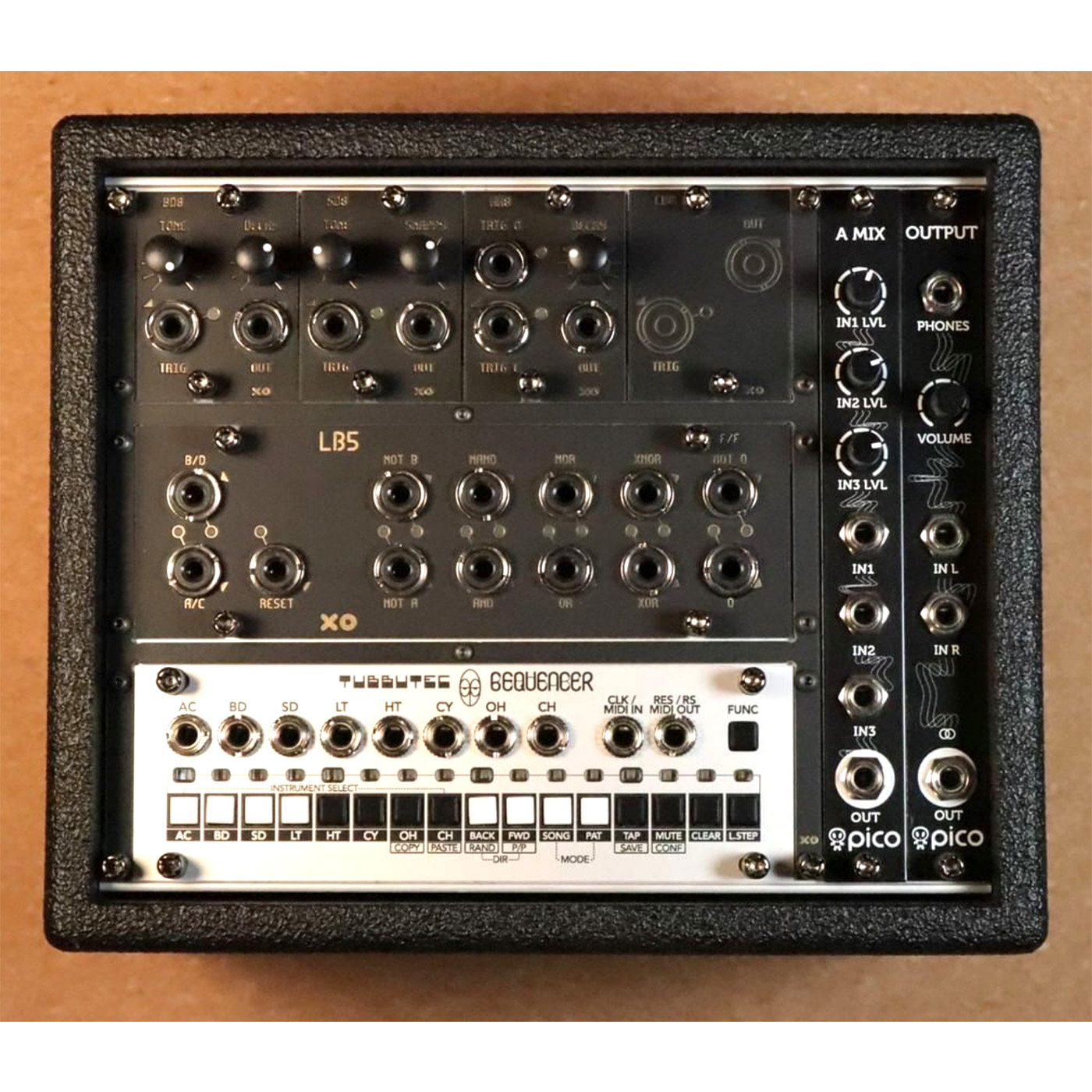

The FC313 adaptors should fit any 3U Eurorack case and will locally add 3 x 1U rows, allowing the 1U modules to be used in their original orientation.
The frame is held by 4 screws in the corners, allowing the top and bottom modules to use the original rack rails, while the ‘threaded strip’ style rails allow for combining multiple 1U modules on a single row.
Note: These adaptors will only fit 1U tiles in the ‘Intellijel format’ – they do not work with Pulp Logic tiles
Adaptors are offered in both M3 and M2.5 rail thread size – choose the preferred M screw size for your case.

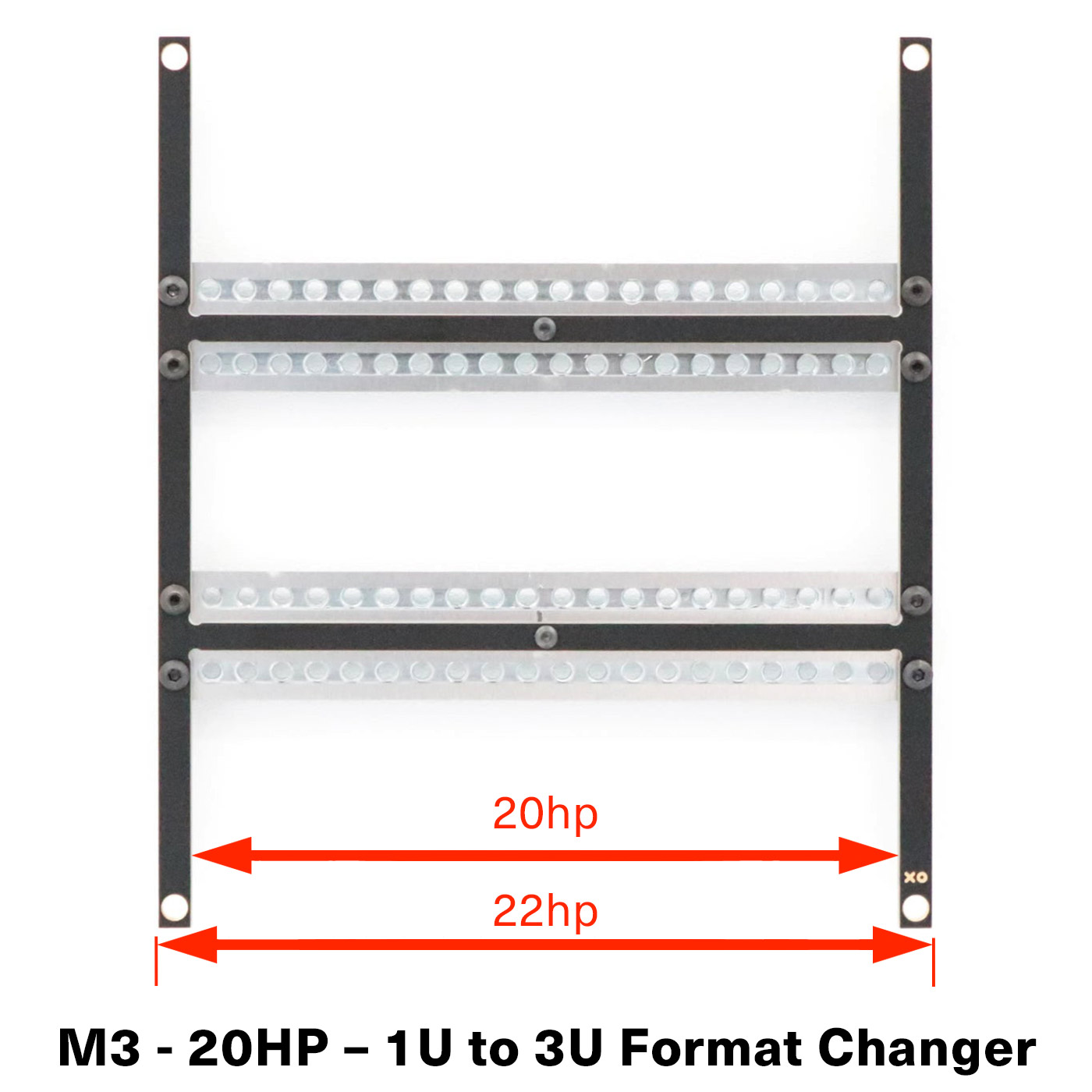

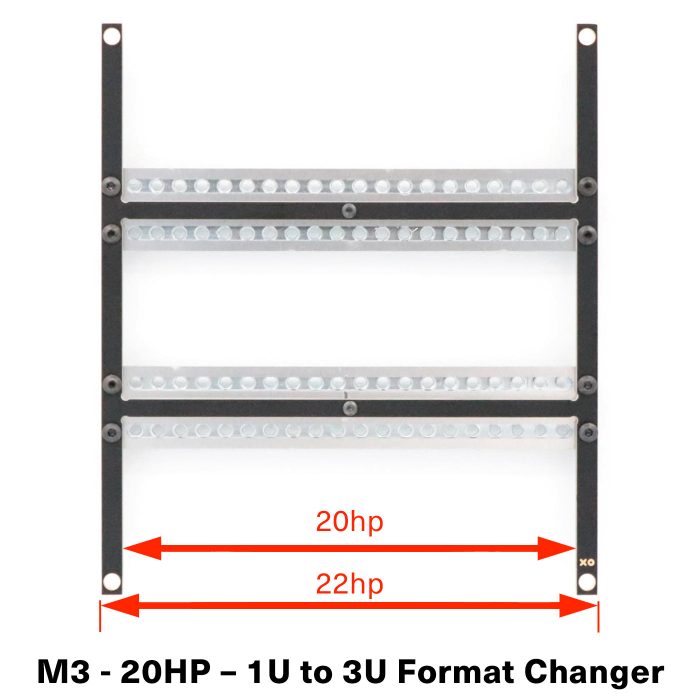

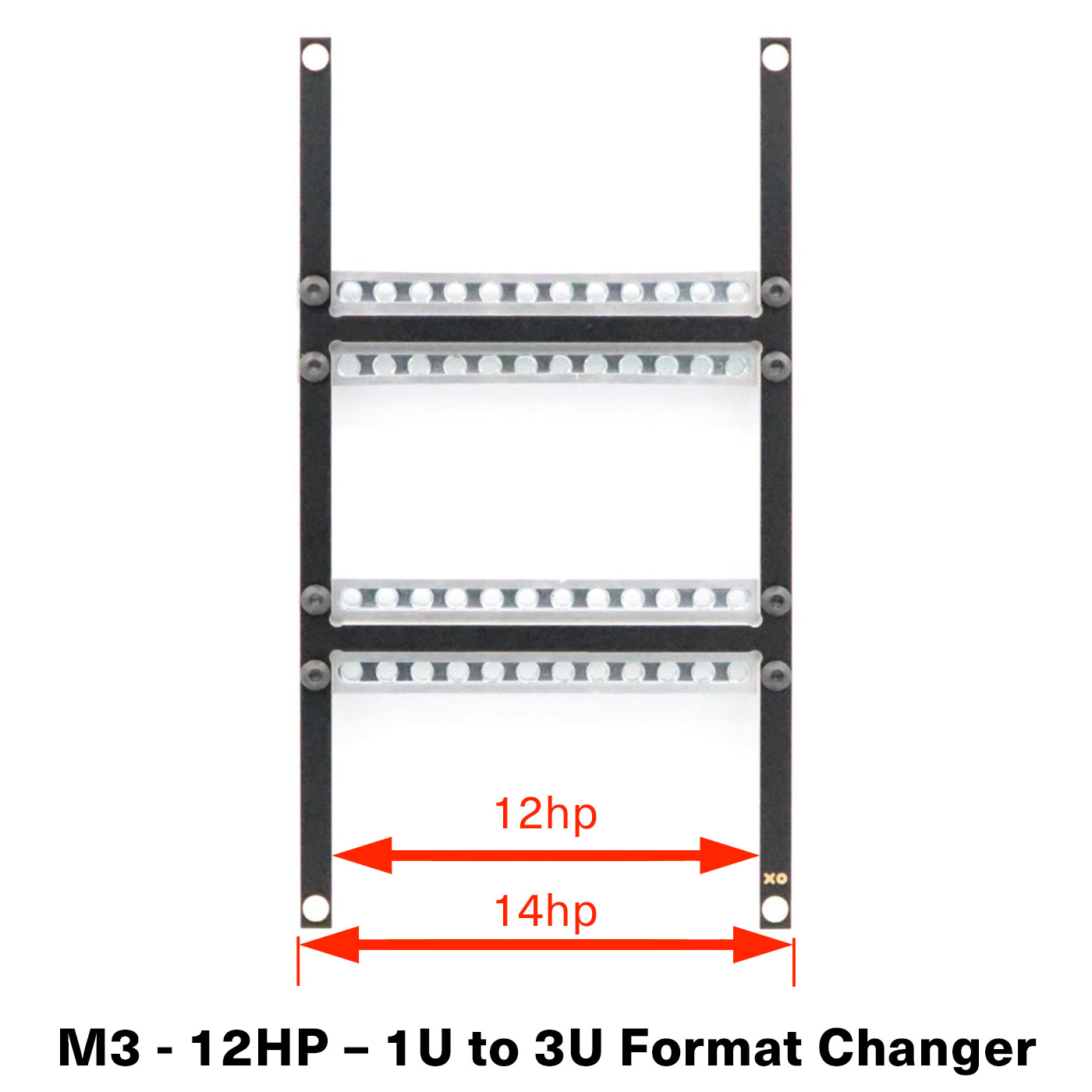

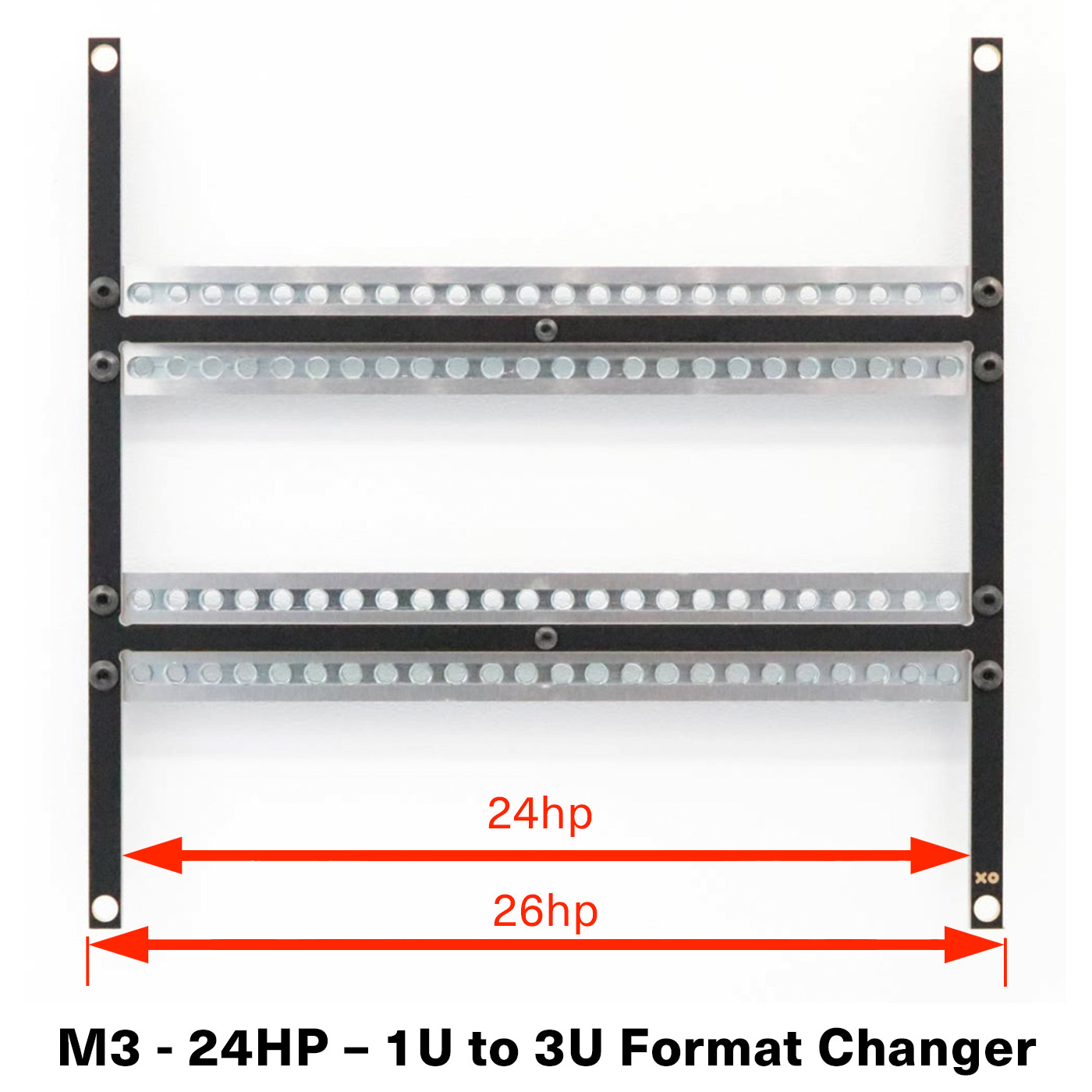

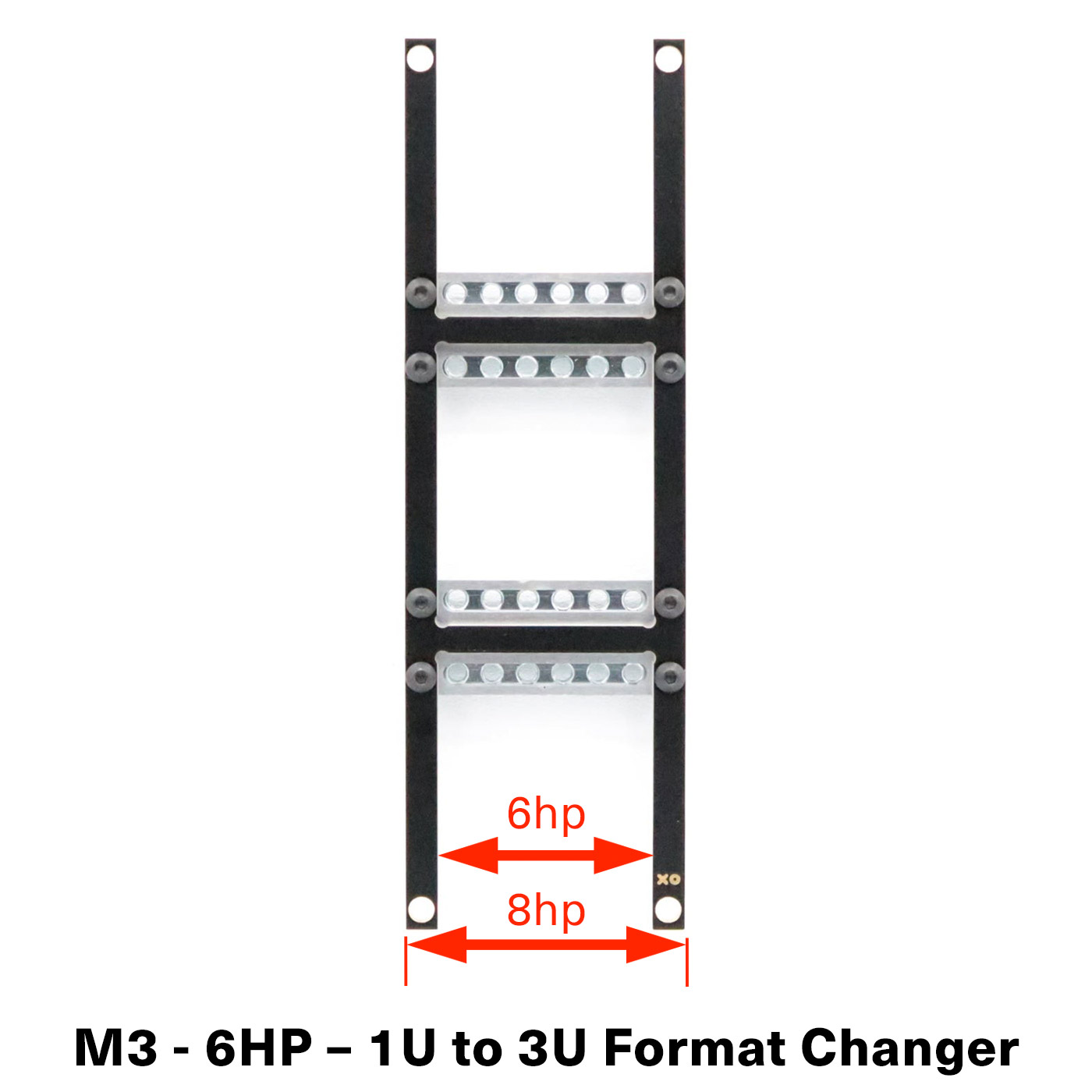

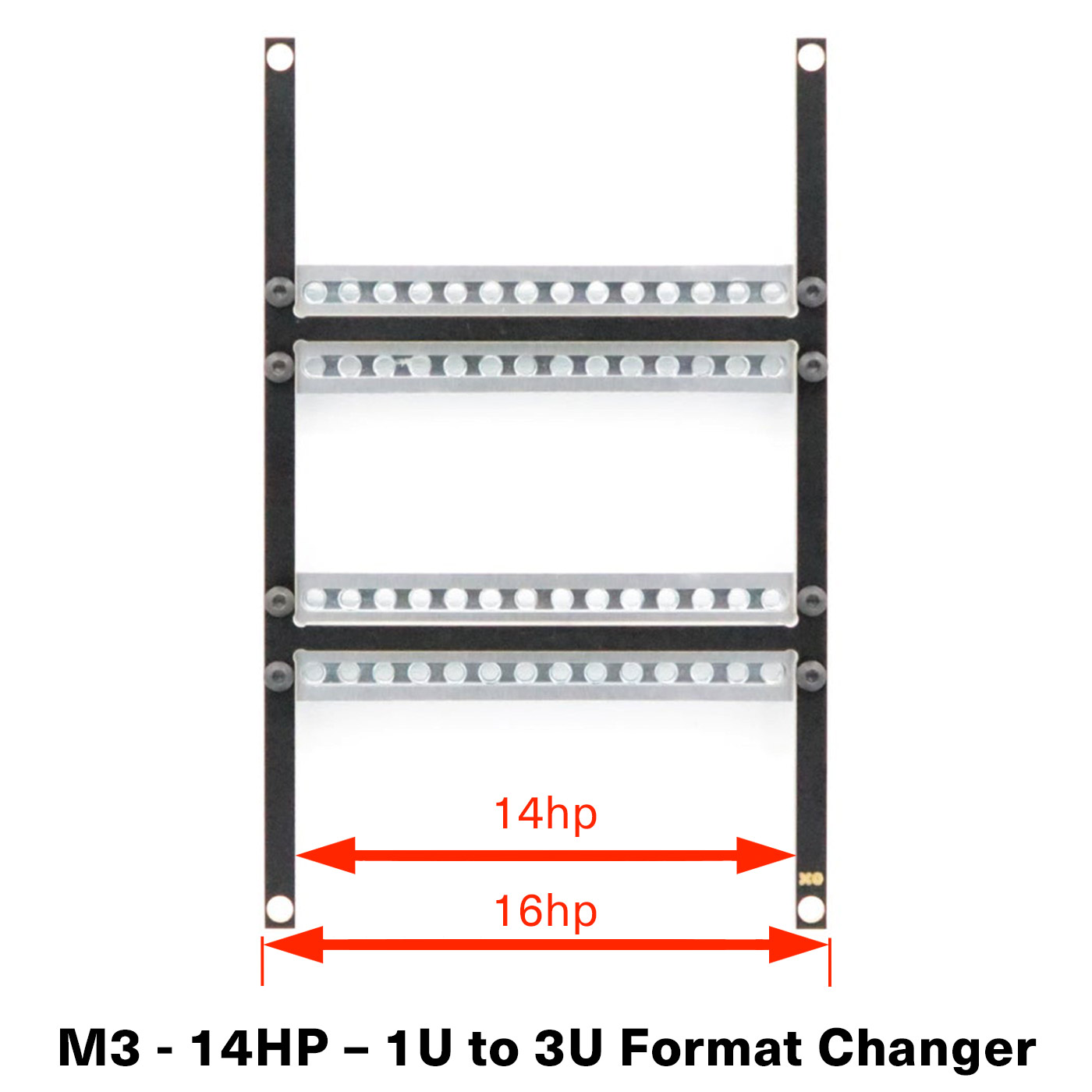

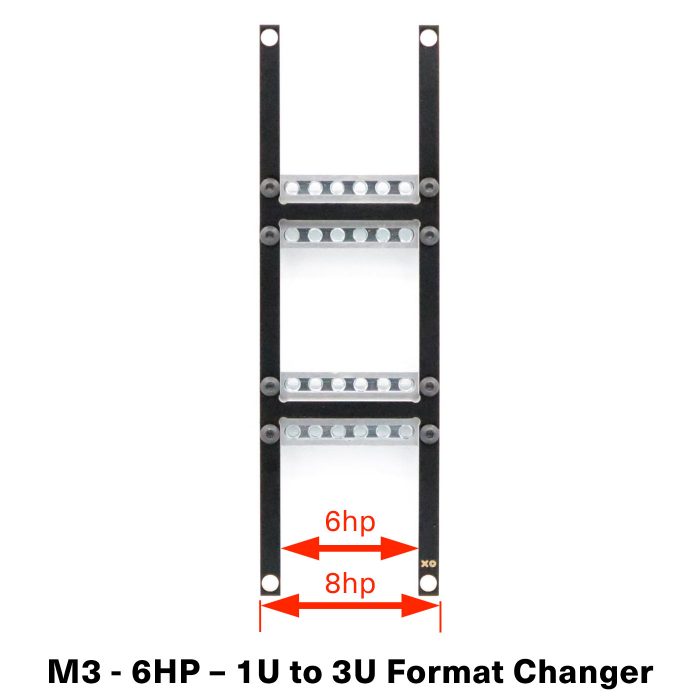

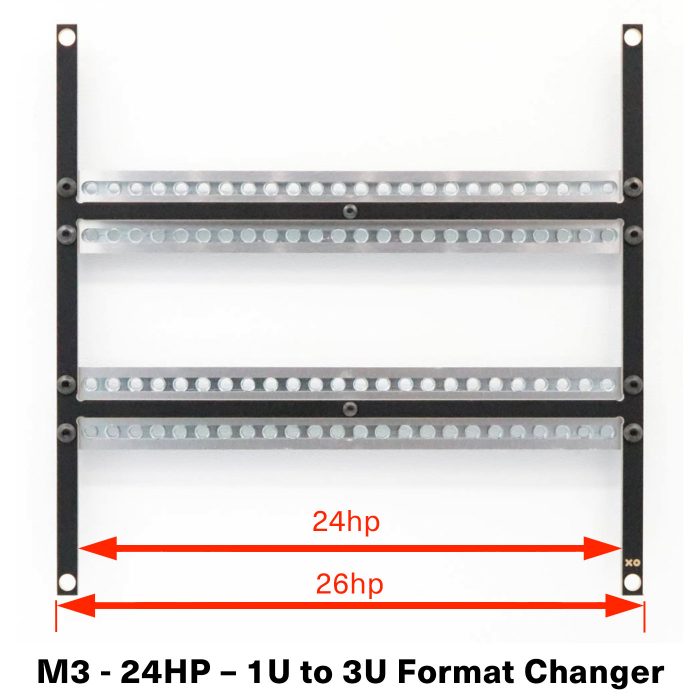

NOTE: The HP size in the product names you can choose from refers to the 1U width, the adaptor frame eats an extra 2HP from the 3U row. Please refer to the images below before choosing the appropriate size.

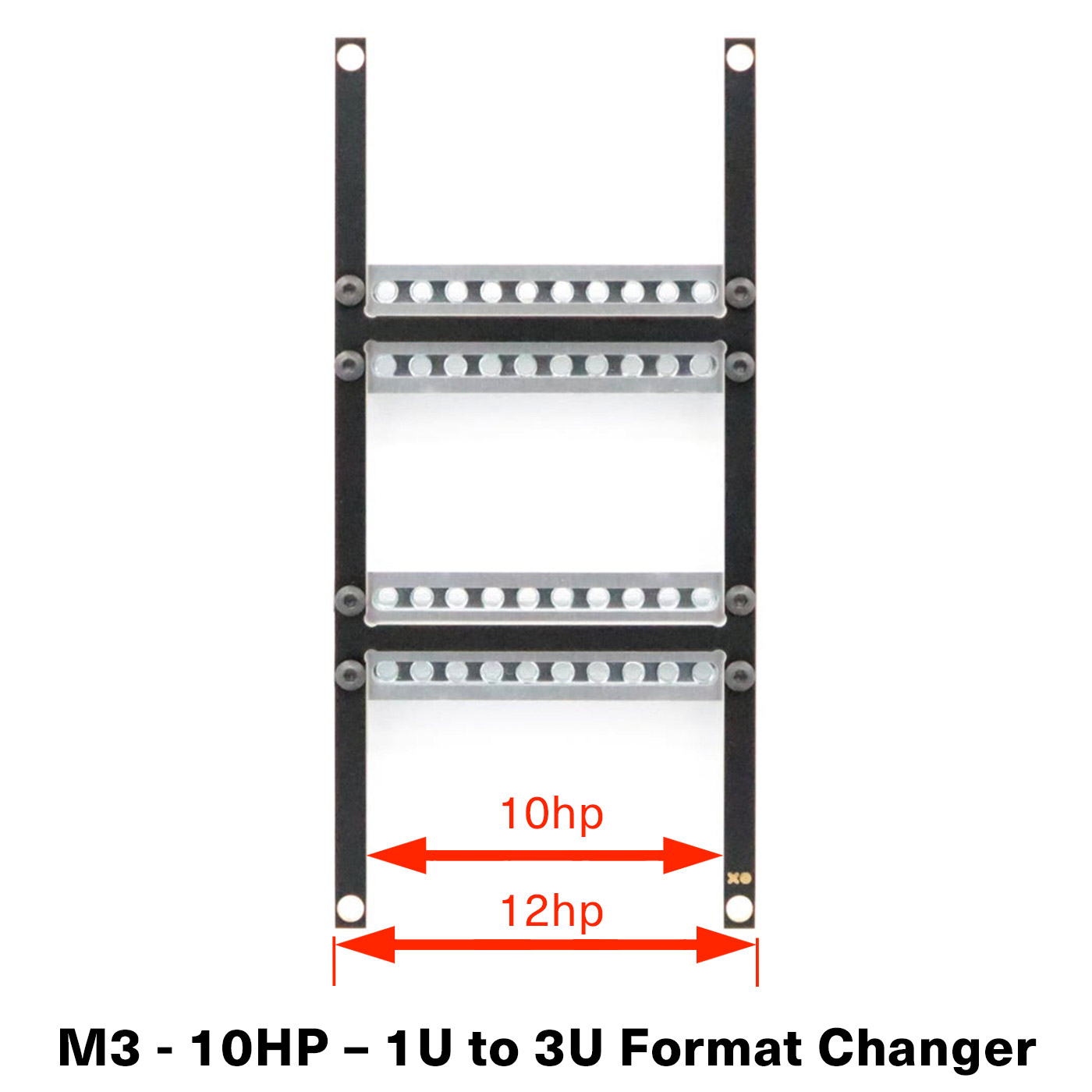

e.g. If you have 12HP of space in your 3U case then you can use the ‘M3 – 10HP – 1U to 3U Format Changer’, which allows you to mount three 10hp 1U modules.
