CCTV – Immutable Plaits – Full DIY Kit

£125.00 (Excl. VAT)

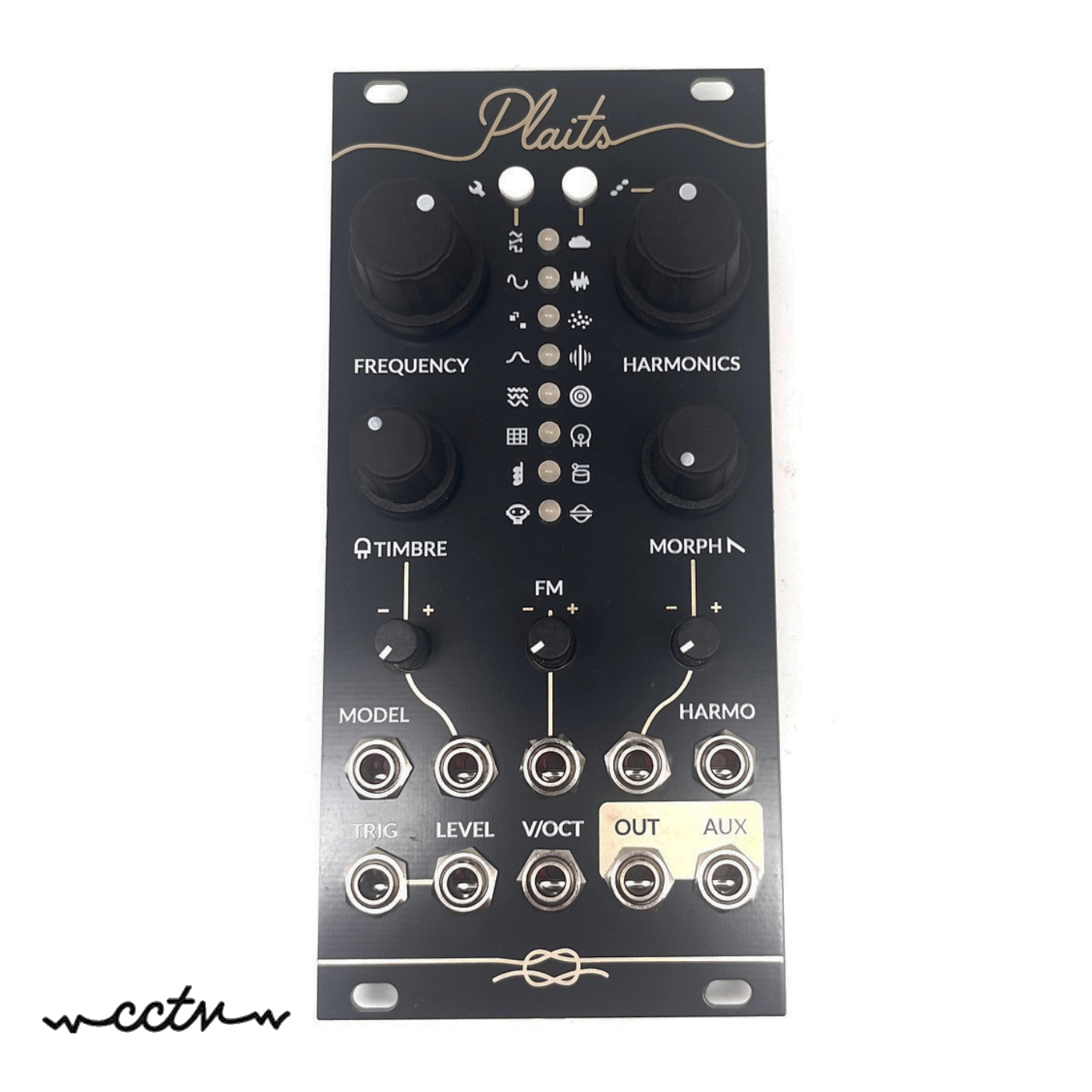

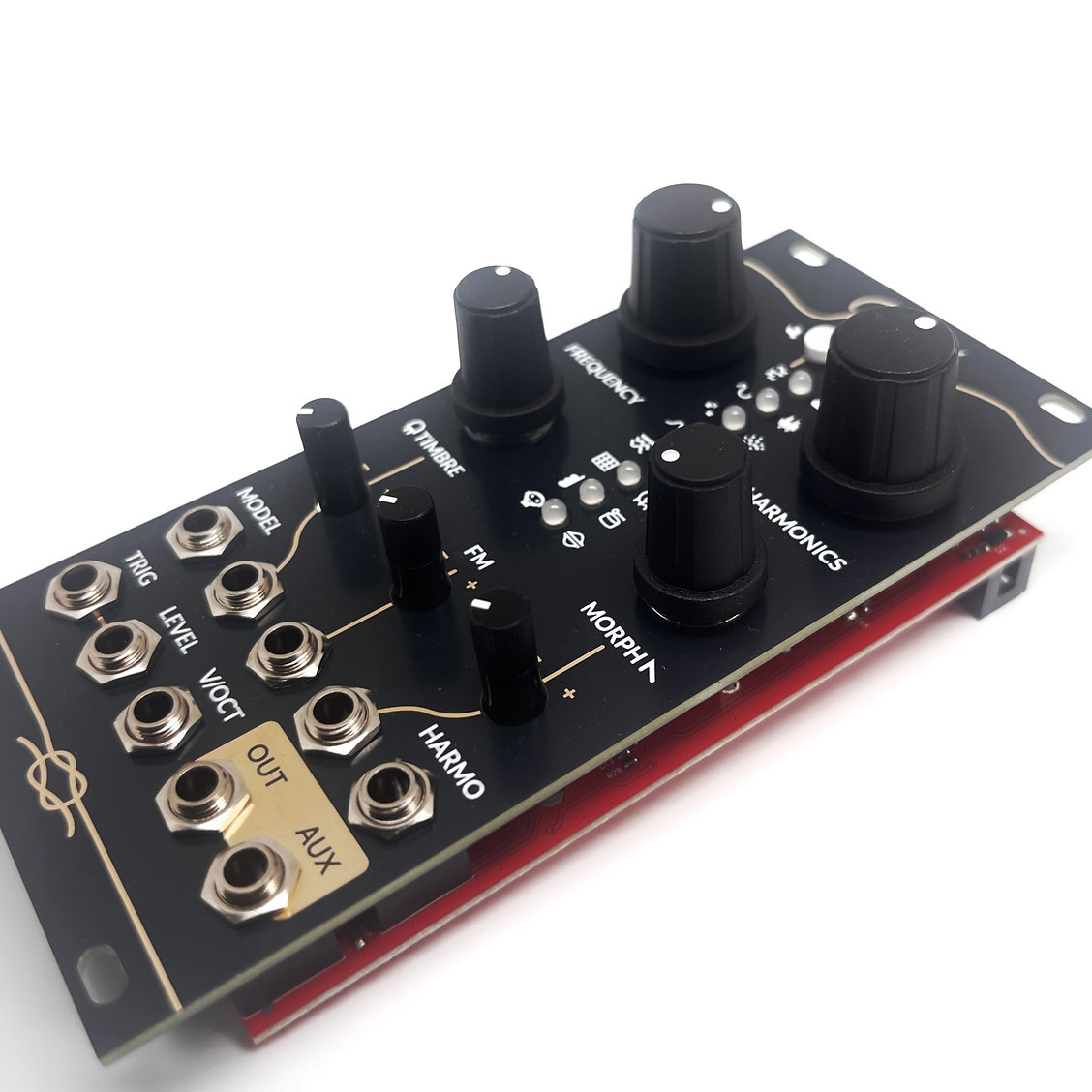

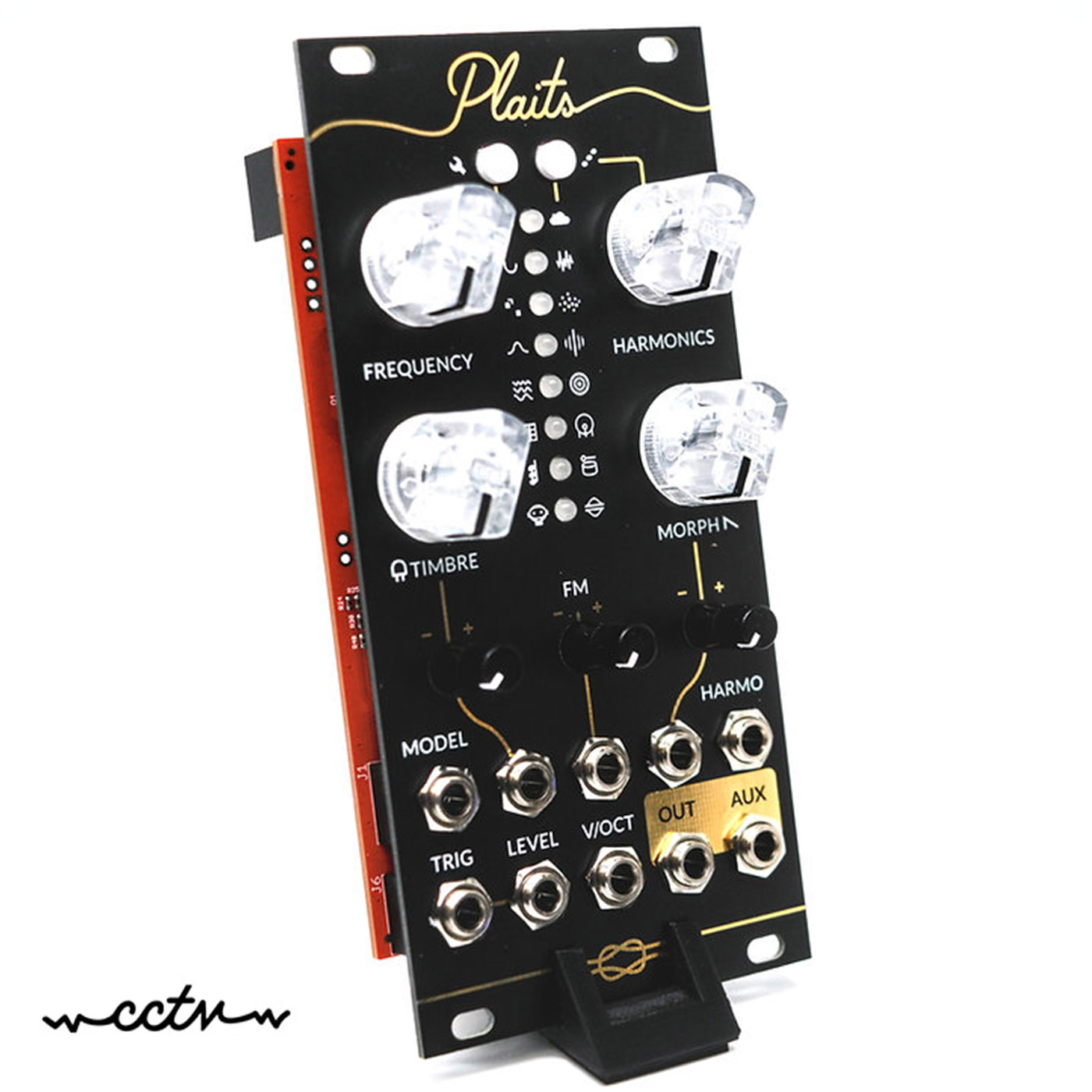

Full size, black panel clone of Mutable Instruments’ classic open source macro oscillator

All SMD comes pre-soldered!

In stock

SKU: Kit_CCTV_Immutable_Plaits Categories: , , , Brand: , HP Size: 12 HP

Description

Videos above demonstrate the original Mutable Instruments version of the open source Plaits. The CCTV clone is functionally identical.

Immutable Plaits is a clone of Mutable Instruments’ best-selling open source voltage-controlled sound generator.

It offers direct access to a large palette of easily tweakable raw sonic material, covering the whole gamut of synthesis techniques.

Thanks to additional CV inputs, and the use of three timbre-shaping parameters per model, Plaits is straightforward to use, and much closer to the ideal of one synthesis technique = one model.

Patch a trigger generator or sequencer into Immutable Plaits’ trigger input and instantly use the module as a percussive source thanks to its built-in virtual low-pass gate (LPG).

An internal D (decay) envelope generator is normalised to all unpatched CV inputs. Just turn the corresponding attenuverter to add pitch, timbre or morphing modulation. And if plucks and snappy hits are not your thing, patch your own envelope or CV source into the LPG CV input.

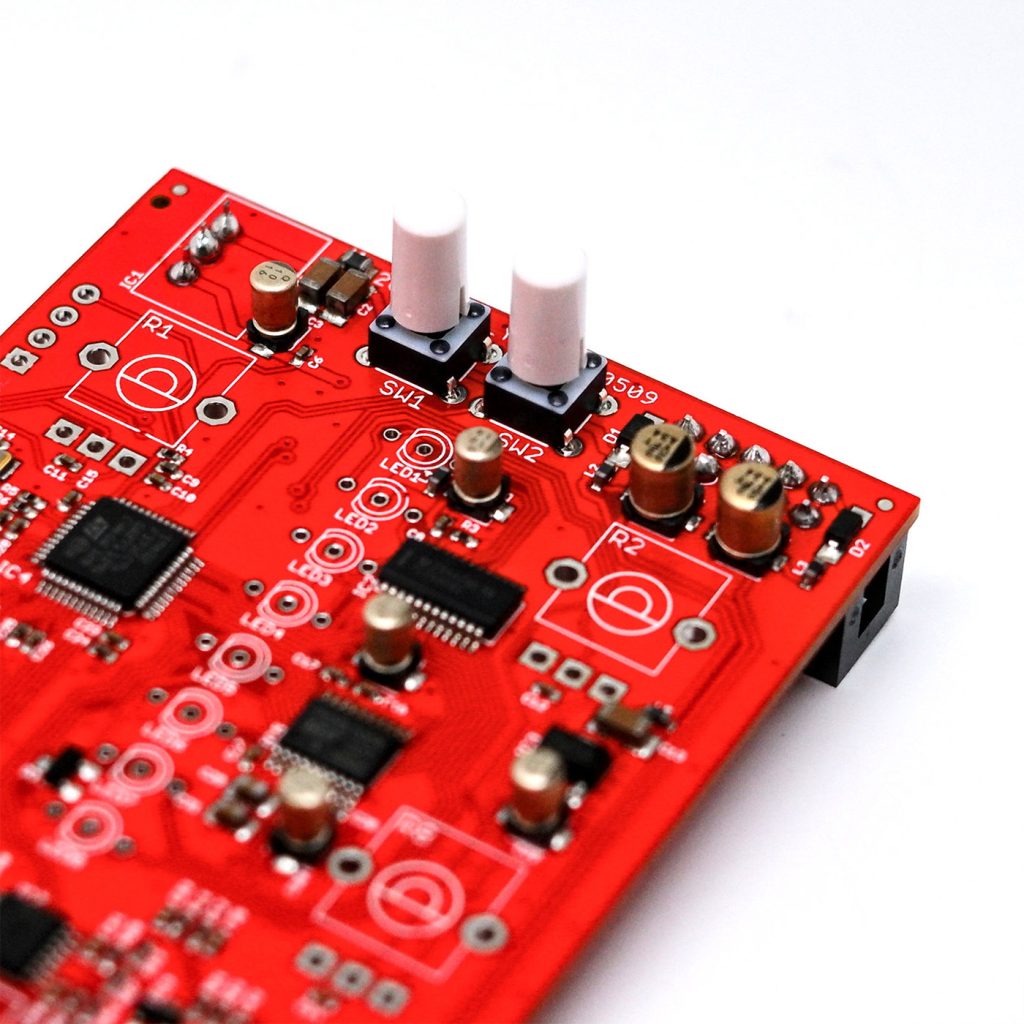

The SMD is all preassembled, leaving only the through-hole parts to solder – pots, jacks, LEDs, and buttons. The firmware has been pre-flashed.

Estimated build time is about 1 hr.

FEATURES

16 deep synthesis models
8 synthesis models for pitched sounds

  • Two detuned virtual analog oscillators with continuously variable waveforms.
  • Variable slope triangle oscillator processed by a waveshaper and wavefolder.
  • 2-operator FM with continuously variable feedback path.
  • Two independently controllable formants modulated by a variable shape window (VOSIM, Pulsar, Grainlet, Casio CZ-style resonant filter…).
  • 24-harmonic additive oscillator.
  • Wavetable oscillator with four banks of 8×8 waves, with or without interpolation.
  • Chord generator, with divide down string/organ emulation or wavetables.
  • A collection of speech synthesis algorithms (formant filter, SAM, LPC), with phoneme control and formant shifting. Several banks of phonemes
  • or segments of words are available.

8 synthesis models for noise and percussions

  • Granular sawtooth or sine oscillator, with variable grain density, duration and frequency randomization.
  • Clocked noise processed by a variable shape resonant filter.
  • 8 layers of dust/particle noise processed by resonators or all-pass filters.
  • Extended Karplus-Strong (aka Rings’ red mode), excited by bursts of white noise or dust noise.
  • Modal resonator (aka Rings’ green mode), excited by a mallet or dust noise.
  • Analog kick drum emulation (two flavors).
  • Analog snare drum emulation (two flavors).
  • Analog high-hat emulation (two flavors).

Dual output

  • The AUX output carries a variant, sidekick or by-product of the main signal.

Internal or external modulations

  • Dedicated CV input for synthesis model selection.
  • An internal decay envelope is normalised to the TIMBRE, FM and MORPH CV inputs: the amount of internal modulation is directly adjusted with the attenuverters.

Internal low-pass gate (LPG)

  • Dedicated LEVEL CV input controlling the amplitude and brightness of the output signal.
  • The internal LPG can also be directly plucked by the trigger input.
  • Two parameters of the LPG can be adjusted: amount of low-pass filtering (VCFA to VCA), and response time of the virtual LPG. THIS KIT DOES NOT CONTAIN REAL VACTR0LS.

Specifications

  • Width: 12HP
  • Depth: 25mm
  • Power Consumption: 50 mA +12V, 5 mA -12V
  • All inputs: 100k impedance, DC to 2kHz.
  • FM, MORPH, TIMBRE input range: +/- 8V.
  • HARMO and MODEL input range: +/- 5V.
  • LEVEL and TRIG input range: 0 to +8V.
  • V/OCT input range: -3 to +7V.
  • 16-bit CV capture.
  • Audio output: 48kHz, 16-bit, DC-coupled.
  • Internal processing: 32-bit floating point.

Immutable Plaits – Build Document | User Manual (linked is Mutable Instruments’ full open source manual and project files. CCTV’s version of Plaits is identical in terms of control layout and functionality)



Additional information

Weight 0.132 kg
HP Size
