Electrosmith – Daisy Seed

£31.00 (Excl. VAT)

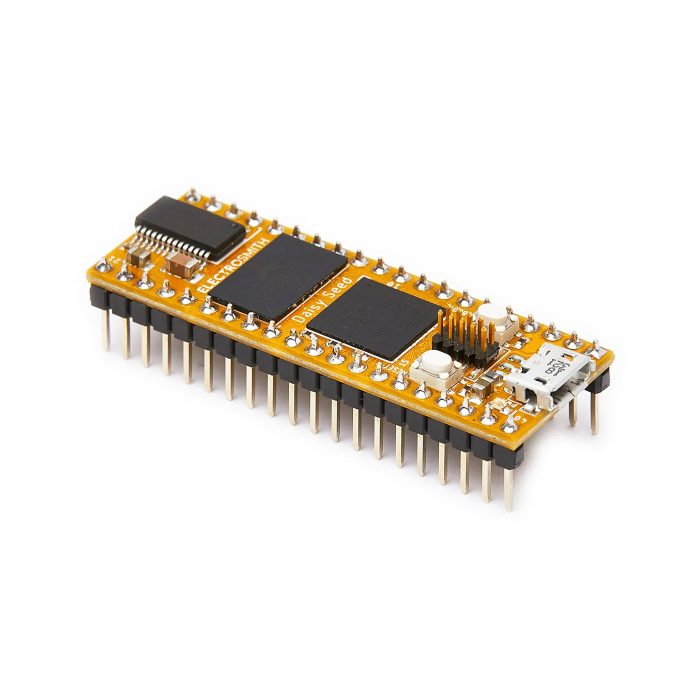

Daisy is an embedded platform for music. It features everything you need for creating high fidelity audio hardware devices.

This is the 65MB Version. Includes headers already pre-soldered

Out of stock

You must register to use the waitlist feature. Please login or create an account

Description

Daisy is an embedded platform for music. It features everything you need for creating high fidelity audio hardware devices. Just plug in a USB cable and start making sound! Programming the Daisy is a breeze with support for a number of languages including C++, Arduino, and Max/MSP Gen~. To get started, simply upload an example program over USB, and start tweaking!

Documentation, and examples are hosted on GitHub for easy download. All firmware developed by Electrosmith is released for free under a permissive open source license.

Specs:

  • Stereo audio IO – 96kHz / 24-bit audio hardware (AC-Coupled)
  • Programmable in: C++, Arduino, Max/MSP gen~, Pure Data
  • x31 GPIO, x12 ADC inputs (16-bit), x2 DAC outputs (12-bit, DC-Coupled)
  • ARM Cortex-M7 MCU, running at 480MHz
  • 64MB of SDRAM for up to 10 minute long audio buffers, 8MB external flash
  • SD card interface, PWM outputs, and various serial protocols for external devices (SPI, UART, SAI/I2S, I2C)
  • Dedicated VIN pin for external power


Technical Documents

Datasheet – v1.0.5

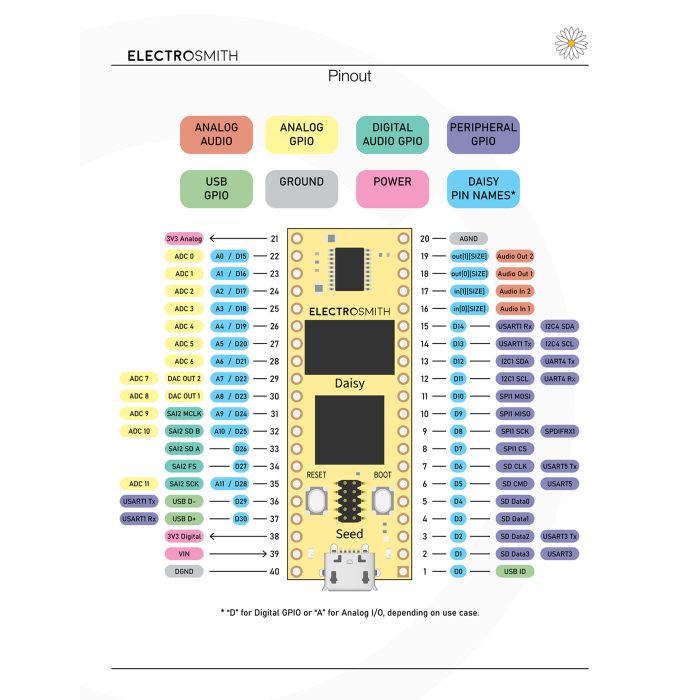

Pinout: PDF – CSV
3D Model
libDaisy Reference Documentation
DaisySP Reference Documentation


Getting Started

Getting Started Wiki Page
Setting Up Your Development Environment
Creating Your First Project
Example Programs – Read Source // Flash Binaries


Hardware Design

EAGLE Device
Example Reference Designs
ERB – Programmatically Generate Eurorack Modules
PedalPCB – Terrarium Compact Pedal Interface
Segger J-Link Debugger – Wiki


Community

Daisy Forum
Daisy Discord

Additional information

Weight 0.009 kg
