Description

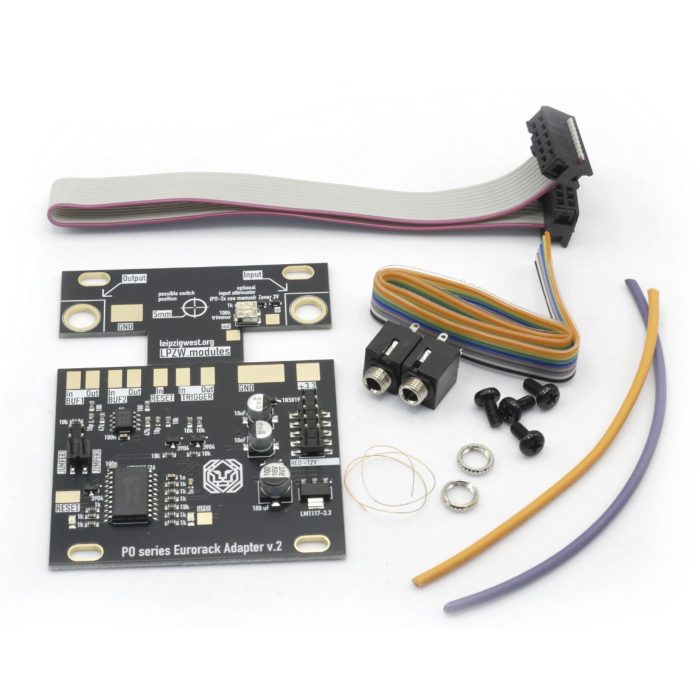

Adapt a Teenage Engineering Pocket Operator for use as a 12HP Eurorack module. This DIY Kit comes with all SMD components already pre-soldered and contains all the other components needed to build the PO Adaptor (Pocket Operator not included).
The LPZW PO-Series Adapter has five functions:
- Hold the PO in your Eurorack case
- Supply power to the PO from Eurorack bus-power
- Route the I/O 3.5mm jacks to the front
- Divide incoming 16th-note clock to a 8th-note clock used by the PO
- Amplify the output signal to modular level
New additional features in V2.0:
- External reset for the PO
- Automatic reset after idle clock input
- Attenuation and protection (clipping) circuit for external inputs
It is up to you to decide which of these functions you want to use. Read the manual carefully and completely before building
Build Document – User Manual & Assembly Guide
