Description

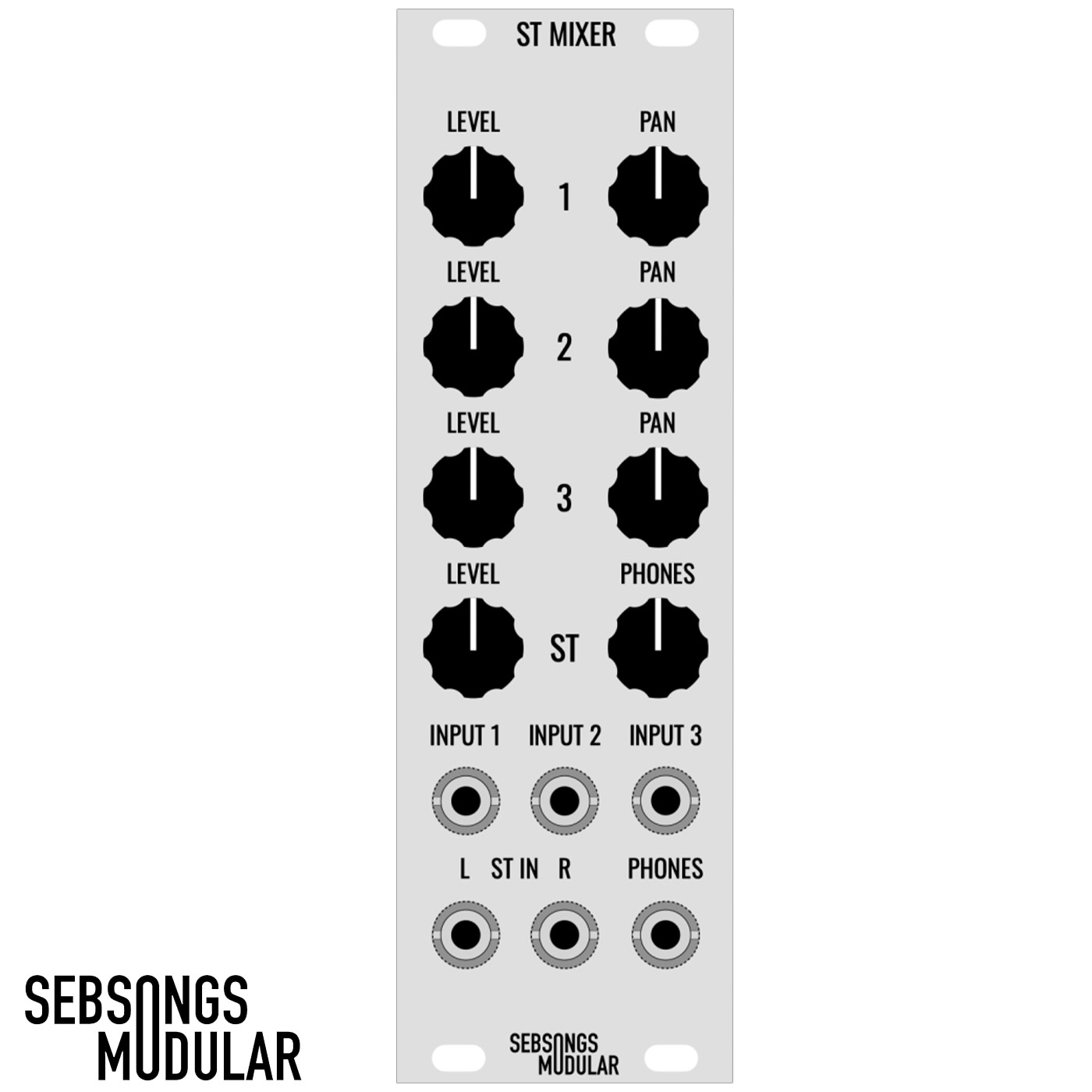

STEREO MIXER is effectively a five channel stereo mixer with a really good sounding headphone amplifier built in. This module is designed to be the final output module of a small portable system that you want to use with headphones or for recording via 1/8 inch stereo jack cable to a portable recorder.
The module consists of three mono channels with level and panning control and one stereo channel with level control and separate inputs for left and right. The stereo headphone output also has level control.
STEREO MIXER is perfect for a small to medium system with a couple of synth voices and a stereo effect. The headphone output can drive most headphones quite well and also doubles as a recording output to connect to a portable recorder.
RESOURCES
Specs:
- Size: 8 HP
- Depth: 26 mm
- Current draw: +27 mA / -27 mA
- Headphone output power: 6,4 mW @ 73 ohms
