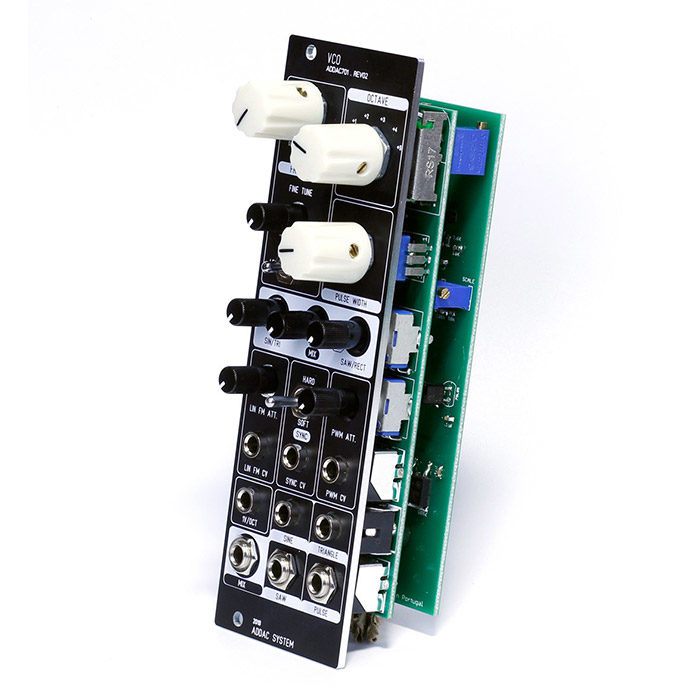

ADDAC701 VCO rev02 – Full DIY Kit

WE ARE LIMITING  CERTAIN PRODUCTS FOR SAFE OPERATION DURING THE COVID-19 LOCKDOWN –  IF YOU CAN ADD A PRODUCT  TO YOUR CART IT MEANS WE CAN SHIP IT – READ MORE HERE

£130.00 (Excl. VAT)

Fully featured, precise and stable analog VCO

Out of stock

You must register to use the waitlist feature. Please login or create an account
SKU: Kit_ADDAC701_VCO_rev2 Categories: , , Brand:

Description

This is the newest ADDAC VCO, the original ADDAC701 oscillator was discontinued a few years back and since then they’ve been wanting to release a more stable version with better pitch tracking – increasing pitch reliability and further minimising the detuning issues of analog VCO’s.

For this new revision ADDAC chose to use the modern version of the CEM3340 IC from CoolAudio and have added the triangle-to-sine circuitry of their previous VCO. This new version is extremely stable over 7 octaves.

This oscillator also features a new Mix section which allows mixing of all waveforms controlled by the 3 knobs in the middle of the module.

Build Documents – Assembly guide | Calibration

Features:

  • Frequency knob with 6 octave range
  • Fine Tune knob with 12 semitone range
  • Octave switch with 6 octave range
  • 1v/octave cv input
  • Linear FM cv input with attenuator
  • LFO/VCO switch sets overall frequency range
  • Soft/Off/Hard Sync switch
  • Pulse Width control with initial knob and cv input with attenuator
  • SINE, TRIANGLE, SAW and PULSE outputs
  • Mix output controlled by 3 knobs SIN/TRI, MIX and SAW/RECT.

Tech Specs:

  • 8HP
  • 3.5 cm deep
  • 60mA +12V
  • 60mA -12V

Additional information

Weight 0.1453 kg
HP Size
