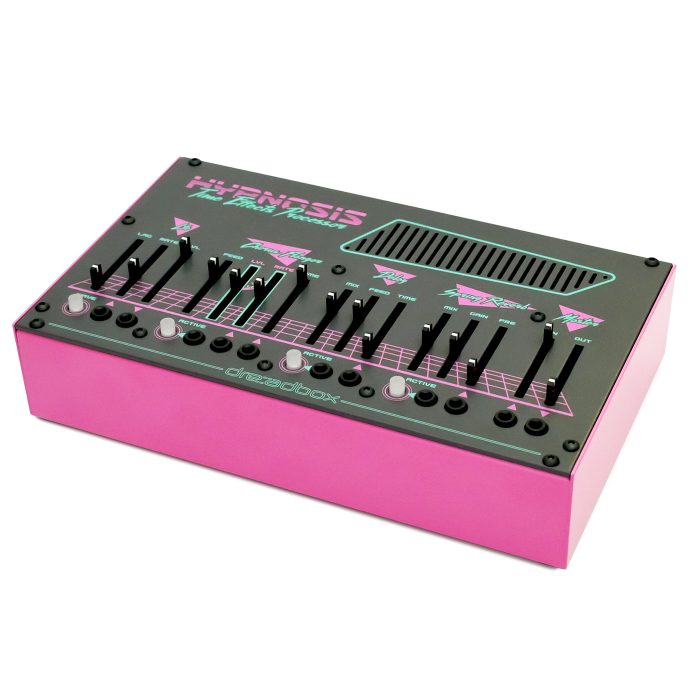

Dreadbox – Hypnosis – Full DIY Kit

£179.00 (Excl. VAT)

Analog Effects Processor with 3 effects

All hardware comes pre-soldered! Standalone (enclosure included) or Eurorack compatible.

Out of stock

You must register to use the waitlist feature. Please login or create an account
SKU: Kit_Dreadbox_Hypnosis Categories: , , , , , Brand: HP Size: 42 HP


Unleash the power of 80s nostalgia with the Hypnosis multi-effect unit, designed to transform your instruments and synthesizers into a sonic time capsule. The Hypnosis features Chorus/Flanger, Delay and Spring Reverb effects, along with LFOs for modulation. All three effects have an activate button to switch them in or out of the signal chain as desired. Each button also has a dedicated trigger input, allowing for CV control of the on/off process to create subtle, rhythmic elements. Hypnosis can be used as a standalone module or integrated into a Eurorack modular system.

The signal path begins with the chorus/flanger combo. It’s based on analog BBD circuitry and has four controls: feedback, level, rate, and time. Next comes the delay. This goes through the analog signal path but is digital. So, a hybrid delay (40ms-500ms) with three controls: dry/wet mix, feedback, and time. The time can also be controlled via CV, the core of the delay circuit is taken from the Dreadbox Erebus. Third and final effect is a spring reverb. This is not a digital emulation but a real one with a small spring tank on the board. The spring reverb section offers three parameters: dry wet/mix, gain, and pre-delay time (30ms up to 200ms).

Looking at the left and right ends, you will find further functions. On the left, there’s a multi-wave LFO (triangle, square, random, random gates) with lag, CV-controllable rate, and level controls. This can be freely patched into other Hypnosis sockets and has a wide range (1 min – 1ms).

Then, you also have a master section where the signals go in and out. Hypnosis Reissue is compatible with Eurorack, line, guitar, and microphone signals. Two sliders allow the levels to be adjusted precisely.

  • Analog Effects Processor with 3 effects
  • All Analog warm BBD Chorus – Flanger circuit
  • Hybrid Delay based on the Erebus synthesizer onboard effect
  • Real Spring Reverb with unique variable time pre Delay
  • 2 x wide range LFOs, 1 hardwired for the chorus and 1 free for patching
  • Wide input range, It accepts from guitar/mic levels up to modular gear
  • 11 patch points
  • Desktop or Eurorack Modular format
  • Compact, USB powered, 42HP

Included In The Box:

  • Hypnosis Reissue Eurorack module
  • 42 HP standalone case
  • 1x Ribbon cable


  • USB (1.5 Watts) or Ribbon cable powered
  • 45 Playing hours with 20,000mA portable power bank
  • 3.5 mm MONO TS Jack In and Out
  • 3.5 mm MONO TS patch points
  • CV inputs work best with +/-5V (but can accept +/-12v)
  • ACTIVE inputs work best with 0-5V (but can accept +/-12v)
  • LFO CV out +/-5V
  • Enclosure Dimensions: 21.5 x 13 x 6.5 cm
  • Weight: 1.1 kg

Requires USB-A Adapter (5v) with 1000mA or more when used with enclosure

Hypnosis – Build Document | User Manual
