Description

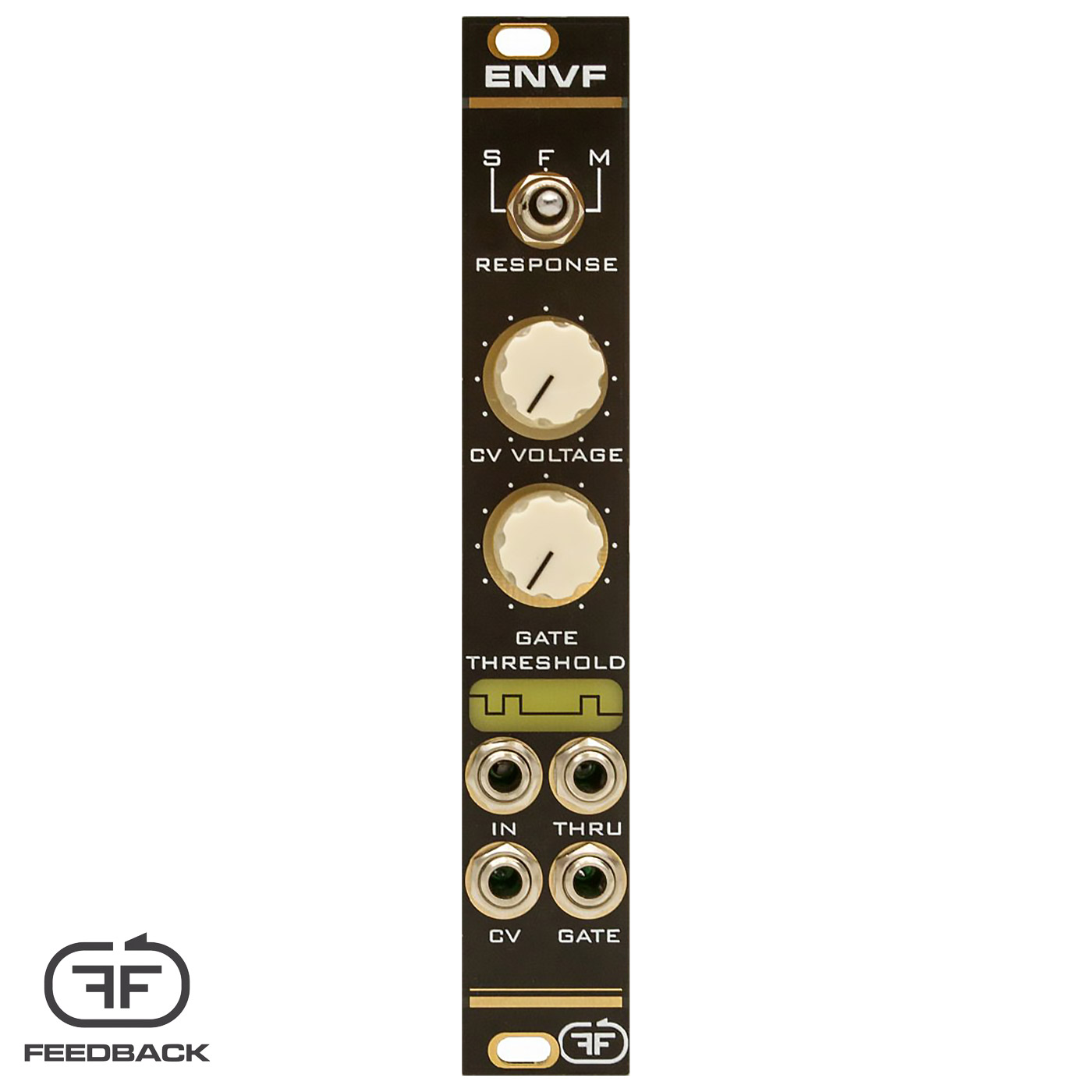

ENVF is an envelope follower based on a classic module from the seventies but with some improvements to suit modern needs. The IN signal is bifurcated to the envelope follower circuit and also to a THRU output, so the original signal is also available for external processing. The envelope follower has three controls, a switch to select response time (fast, medium, slow), a knob to adjust GATE threshold and a knob to adjust the envelope CV level.
This little module will help you shape the timbre and/or the level envelopes of your sounds. From dynamic envelope filtering to compressor like side chaining there are lots of possibilities to mangle your audio!

Specs:

• Width: 4HP
• Depth: 35mm (behind front panel including the power connector)
• Power consumption: +12V 18mA , -12V 16mA
• Standard 10 pin euro power +12V / -12V

ENVF – Build Files | Build Photos | Modwiggler Page
