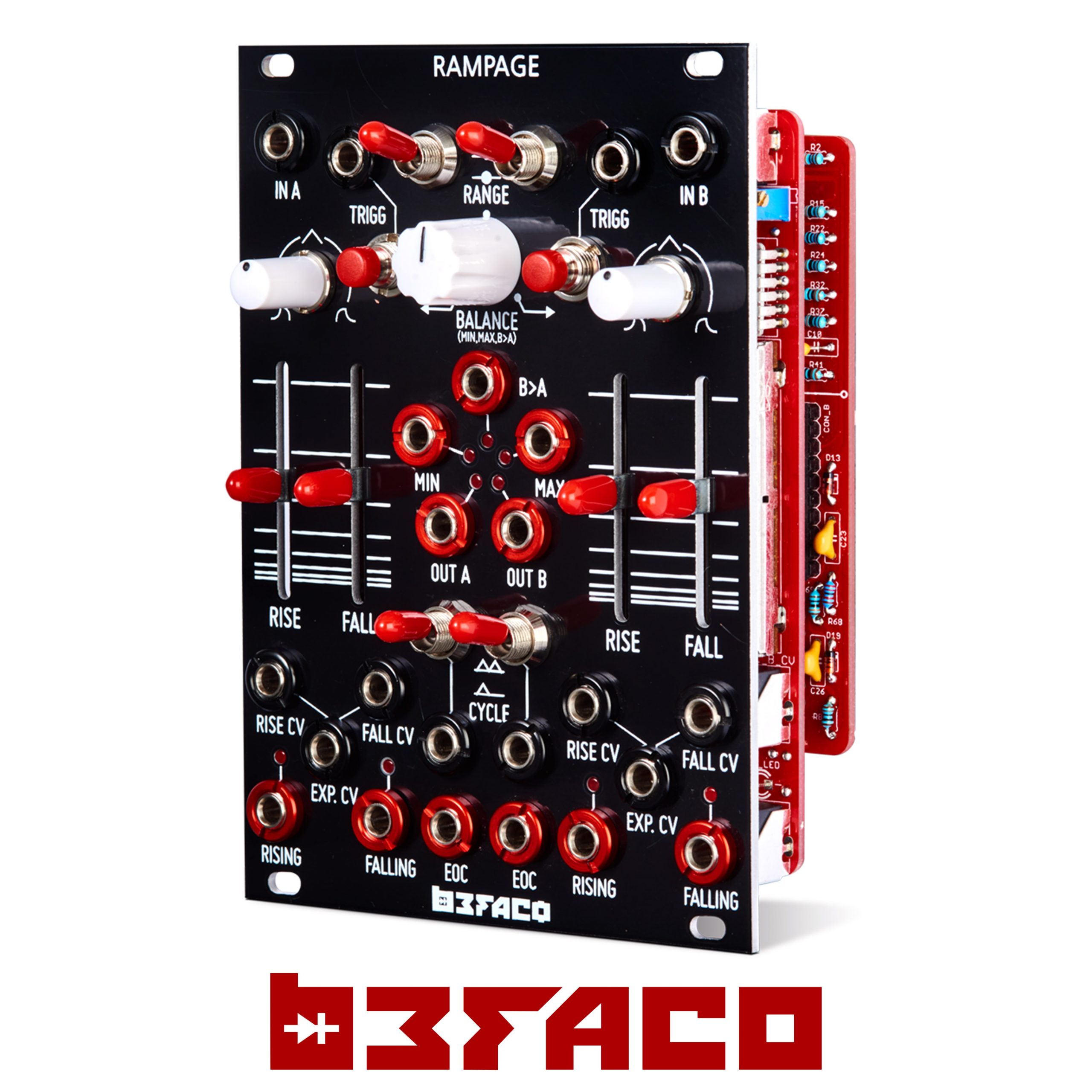

Befaco – Rampage – Full DIY Kit

£134.40

This module has a Black panel.

EU Price does not include EU VAT

Out of stock - Join the waitlist to be emailed when this product becomes available

SKU: Kit_Befaco_Rampage Categories: , , , , ,

Description

The Rampage is Befaco’s approach to an old invention: the Serge/Buchla ramp generator.

They took the idea of a “patch programmable” function generator/processor, put two units in the same module and tried to expand them with new funky functions and ways to combine them: Slope detectors, analogue logic functions and a few extra outputs to add some more complex features.

The module is built around two voltage controlled integrators. Integrators (also known as Lag Processors or Slew limiters) allow you to process your voltages, converting sharp square waves in ramp-like waveforms.













These lovely devices can, for instance, convert a gate signal into a simple envelope, or achieve a “portamento” or “glide” effect when applied to pitch CV. Other well known application of an integrator is it’s ability to low-pass filter an audio signal. Further information and example patches can be found in the user manual.

Rampage info



Some Rampage applications:

-Voltage controlled Attack Decay envelope.

-Attack Sustain Release Envelope .

-More complex ADSR Style Envelope.

-Dual VCO. With Square, PWM, Saw, Log, Exp and Triangle shapes. Hard and soft sync.

-Gated VCO

-VCO + Analog AND Gate (As ADTimbral VCA)

-Dual Low Pass Filter

-Dual Low pass Filter with VCO soft sync.

-Low Pass Filter + AD Envelope

-Dual “syncable” voltage controlled LFO with Square, PWM, Saw and Triangle shapes)

-Complex LFO . Function combination.

-CV controlled and “Ping-Pong” LFO.

-Dual Slope detector. Distinguishes when and incoming signal (CV or audio) is rising or falling, and generates gates in concordance.

-Comparator. Send a gate when B IN is bigger than A IN

-Polyrythmic gate generator. With both channels synced between each other, it generates several “complex rhythm” gates.

-Voltage controlled Slew limiter with independent attack and decay control and continuous variable shape between Log, linear and expo.

-Peak Voltage follower. Max Out follow the maximum Level of the two inputs.

-Minimum Voltage Follower. Min Out follow the minimum level of the two inputs

-Envelope follower with adjustable response for rising ans falling flanks.

-Voltage controlled Trigger Delay .

-Burst Generator.

Specs

  • Current needs: +12V: 110mA -12V: 90mA.
  • 18 HP / 30 mm depth (inc power connector)

Downloads

User manual

V_1.3

Asembly manual (Current version)

Schematics PDF | CAD files

If you need further technical assistance please take a look to the basic troubleshooting guide.

In case you panic and cannot make it work you can get the Befaco  “Happy Ending pack” that include technical service, parts and reshipping back to you.

Download user manual here and assembly instructions here.

Additional information

Weight 0.3316 kg
