Description

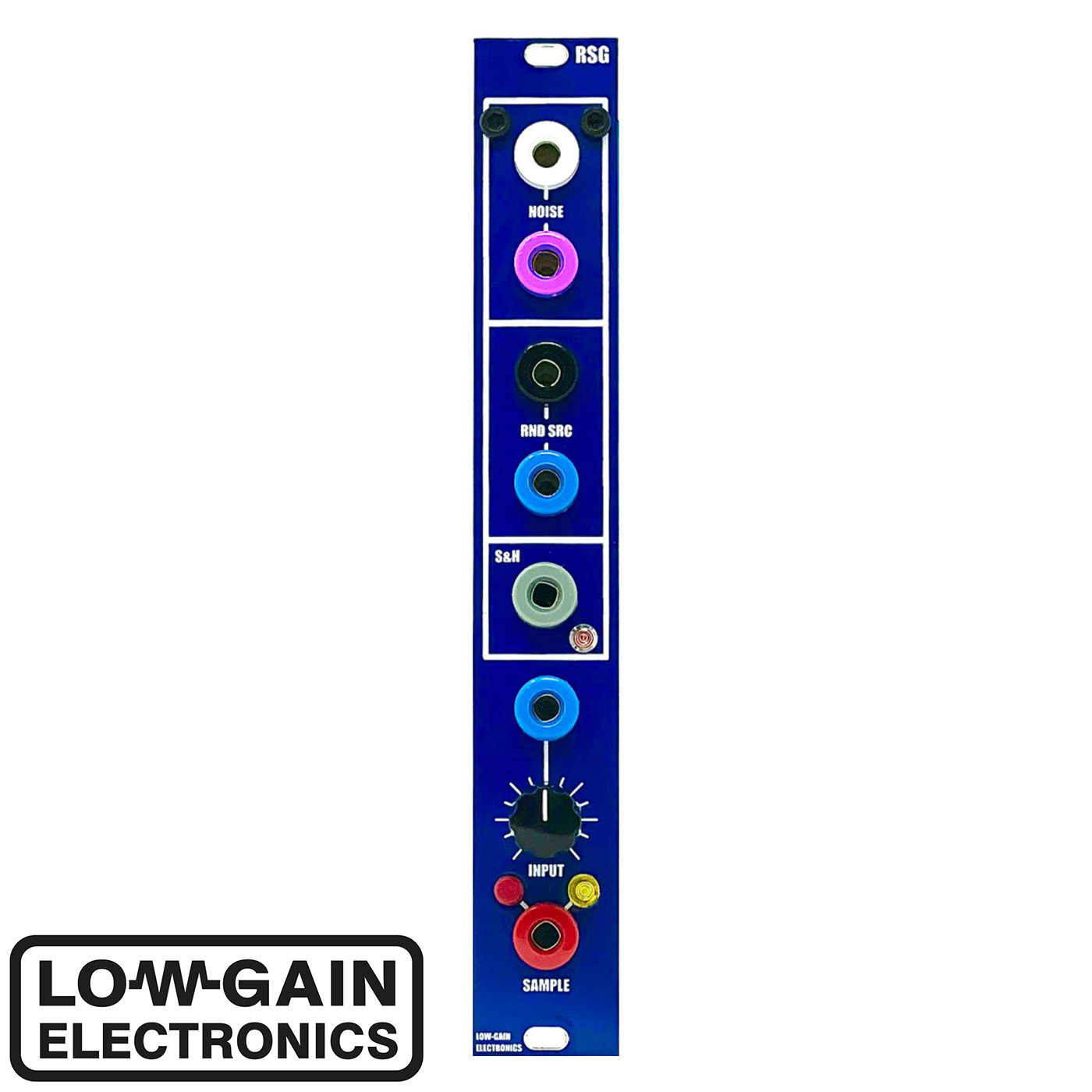

The LGE009 features a white/pink noise generator plus a dual random source generator (0-5V & +/-2.5V outputs). The sample & track/hold channel also features a manual sample button. Makes for a great Bit Crusher as well!

Easy to assemble – no wiring (flying wires) required.

Specs:

• PCB Size: 6” x 1”
• Width: 1HP
• Depth: 40mm

LGE009 Main PCB Bill of Materials
LGE009 Main PCB Schematic
LGE009 Main PCB Designators
LGE009C I/O PCB Bill of Materials
LGE009C I/O PCB Schematic (wiring diagram)
LGE009C I/O PCB Designators

** 4U Modular is a term used for the format most commonly known as “Serge Format” or “Loudest Warning Format”. Out of respect for the ever growing format, 4U Modular is the easiest way to refer to it. More Specifically it refers to the panel height and mounting hole style. 4U Modular will patch up just fine with other 4U “Serge” formats such as “Random Source”, but it will not mount in RS boats or Buchla Boats (or power off Buchla power for that matter).
