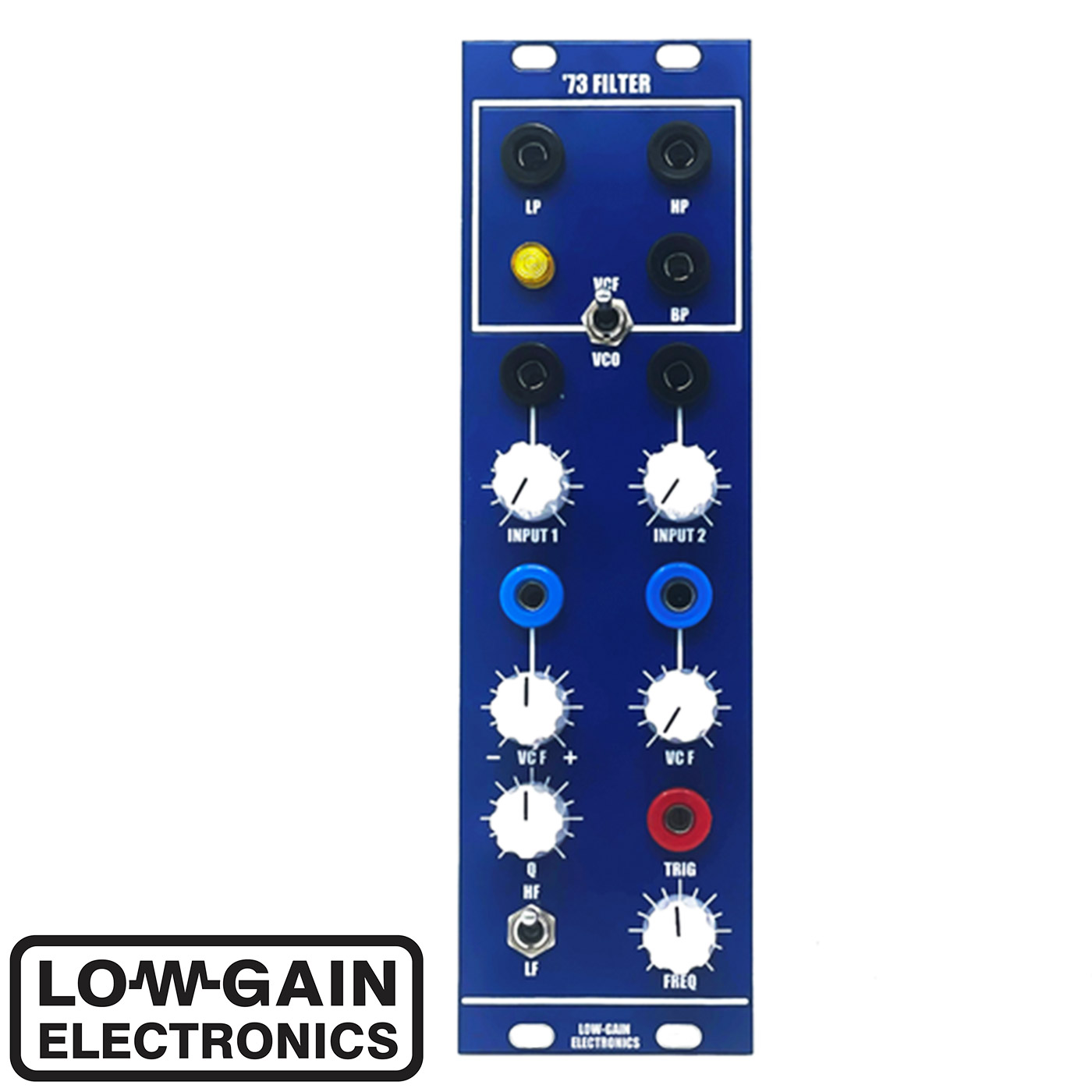

Description

The LGE073 features High Pass, Low Pass and Band Pass outputs. The LP & HP  filters are 12dB/oct while the BP output has a  6dB slope.

Features:

• 2 audio inputs
• 2 CV inputs
• A range switch allowing for filtering CV (but also puts VCO into LFO mode when cycling)
• Dedicated trigger/ping input.

Size: H7” x W2” x D1.5” (2 columns wide (2U) in 4U Modular** / LW Format)
Easy to assemble – no wiring (flying wires) required.

Specs:

• Width: 2HP
• Depth: 40mm

LGE073 v1.1 Bill of Materials
LGE073 v1.1 Schematic
LGE073 v1.1 PCB w/ Designators
LGE073C I/O PCB SCHEMATIC (WIRING DIAGRAM)
LGE073C v1.0 I/O PCB BOM
LGE073 & LGE073C v1.0 board wiring
LGE073C v1.2 I/O PCB w/ Designators

** 4U Modular is a term used for the format most commonly known as “Serge Format” or “Loudest Warning Format”. Out of respect for the ever growing format, 4U Modular is the easiest way to refer to it. More Specifically it refers to the panel height and mounting hole style. 4U Modular will patch up just fine with other 4U “Serge” formats such as “Random Source”, but it will not mount in RS boats or Buchla Boats (or power off Buchla power for that matter).
