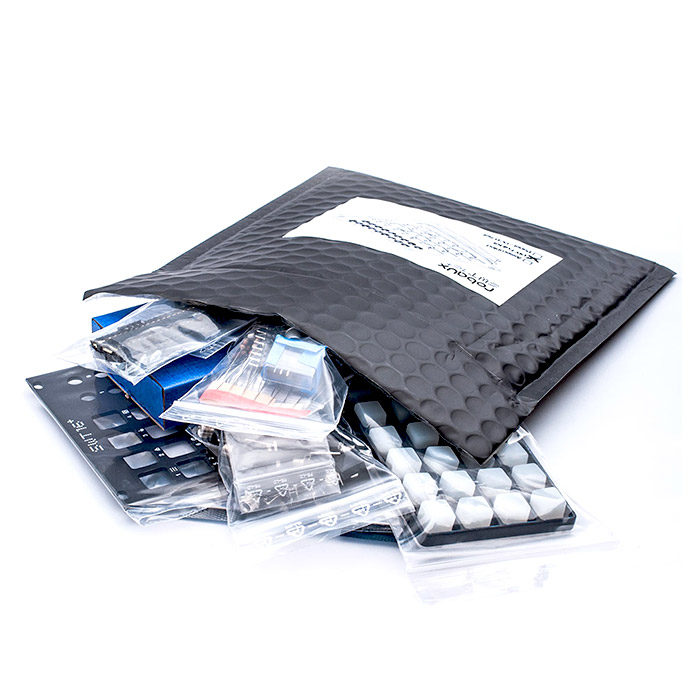

Robaux – SWT16+ Sequencer – Full DIY Kit

£164.00 (Excl. VAT)

16-track Eurorack trigger sequencer with up to 64 steps per track.

In stock

SKU: Kit_Robuax_SWT16_Plus Categories: , , , , , , Brand:

Description

Friday 26th July 2019 – We are now shipping kits with the v0.50 firmware. All kits ordered until Thursday 25th July 2019 shipped with the v0.33 firmware. To purchase an upgrade chip GO HERE. To check which firmware you have installed the easiest way is: Press Shift + Key 16 to get to the Util menu. Then press the Copy button, which is button 26, and the version number will be displayed. If no version number is displayed then it is 0.33 or older. To update the firmware yourself go here.

The Robaux SWT16+ is an updated version of the original SWT16 module – a 16-track Eurorack trigger sequencer with up to 64 steps per track. With the new SWT16+ you can switch between eight different patterns – allowing you to create even more exciting performances. You can also store these patterns in up to 16 onboard memory banks.

The Sweet Sixteen Plus is perfect for triggering drums, envelopes or modulation sources. Program your tracks step by step. Play your tracks on the fly. This new design boasts many sequencing features including a Euclidean rhythm generator!

Other enhancements on the SWT16+ include improved menu navigation and more sequencer options – randomize your tracks, move your steps or reverse your patterns. There is also the option to add probabilty with the new Coin function.

For a full rundown of features see the Manual for v0.50: SWT16+ Manual v0.5 | Assembly Guide rev2

For older versions of firmware (shipped before July 25th 2019) see SWT16+ Manual v0.3  | Assembly Guide rev2

Specsheet

  • Number of Tracks: 16
  • Number of Steps per Track: up to 64
  • Number of Presets: 16
  • Number of Patterns per Preset: up to 8
  • 1 x Clock In
  • 1 x Reset In
  • 16 x Trigger Out
  • 28 x backlight silicon button pads
  • Width: 20HP
  • Depth 35 mm
  • Power consumption: 100 mA at +12 V

Modes

Create

Step Step

Program your rhythms just like on a classic TR machine.

Euclidean Euclidean

Let math create your beat.

Tap Tap

Use your fingertips to record a pattern.

Random Random

Randomly define your track.


Performance

Mute Mute

Mute your tracks.

Fill Fill

Add fills to your pattern.

Clock Reset Clock Reset

Reset your tracks.

Perform Perform

Play with your pattern set.


Track Settings

Length Length

Set the duration of each track.

Offset Offset

Shift your patterns.

Direction Direction

Adjust the play direction.

Values Values

Set the parameters of your tracks.


Sequencer Settings

Autoclock Autoclock

Choose which one sets the pace, the external or internal clock.

Delete Delete

Delete everything.

Write Write

Freeze the current state.

Util Util

Useful adjustments for your setup.


Presets / Patterns

Patterns Patterns

The module makes it possible to create up to 8 different patterns which can stored in a total of 16 presets.

Presets Presets

The Sequencer can store up to 16 presets. These presets contains all the patterns and settings of the 16 tracks as well as the sequencer settings.

Additional information

Weight 0.3748 kg
