ADDAC200CT – Cable Tester – Full DIY Kit

£32.00 (Excl. VAT)

Desktop utility for testing mono jacks and ribbon cables

Out of stock

You must register to use the waitlist feature. Please login or create an account

Description

Introducing ADDAC’s Cable Tester, a desktop utility that provides a reliable means to test the integrity of both mono jacks and ribbon cables, ensuring that every connection is secure and electrically sound.
Individual Wire Testing – Featuring the ability to test each wire within the ribbon cables independently with dedicated LEDs for every wire, providing a clear visual indication of the status of each connection, wires are also tested against their neighbouring wires to detect shorts.

BUSBOARD MONITOR
The busboard monitor LEDs allows the user to check the state of the busboard power lines as well as the special CV/Gate functions. If the busboard has no +5v supply the LED will be off likewise for the CV/Gate functions if not in use.

This is a desktop device, we provide a long power cable so that it can still be plugged into your rack.
As a safety precaution only power this board when you need to test a cable. Leaving it ON at all times can lead to unintended problematic misuses which, in a worst case scenario, can shorten your Eurorack PSU,

! WARNING !
DO NOT POWER MODULES FROM THE TEST SOCKETS!!

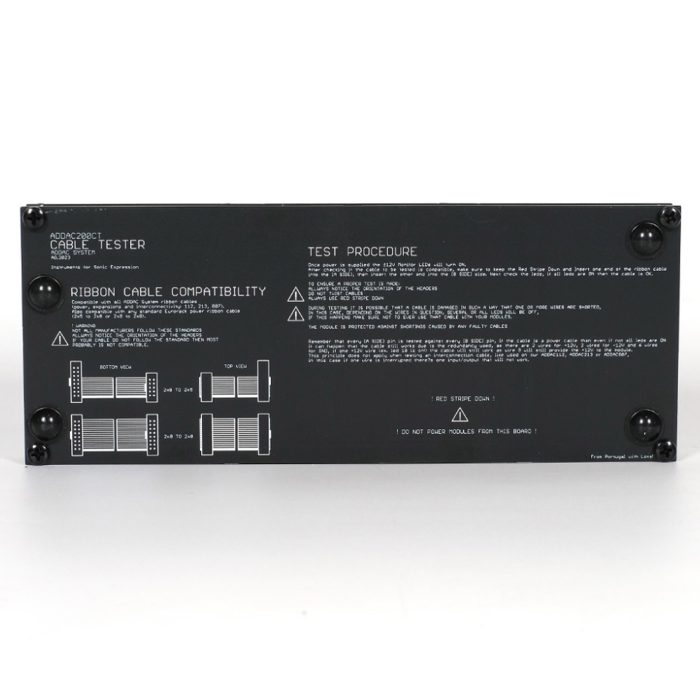

Compatible with all ADDAC System ribbon cables (power, expansions and interconnectivity: 112, 213, 807).
Also compatible with any standard Eurorack power ribbon cable (2×5 to 2×8 or 2×8 to 2×8).

! WARNING !
NOT ALL MANUFACTURERS FOLLOW THESE STANDARDS!
ALWAYS NOTICE THE ORIENTATION OF THE HEADERS IF YOUR CABLE DOES NOT FOLLOW THE STANDARD THEN MOST PROBABLY IT IS NOT COMPATIBLE.

Power Consumption: 30mA +12V, 30mA -12V

Cable Tester – Build Document | User Manual

Additional information

Weight 0.158 kg
