Description
What is the Workshop System?
The Workshop System is an analogue modular synth and a powerful audio computer – designed to be useful and open:
- A genre-neutral toolkit, a little box of ways to make and manipulate music and sound.
- A patchable, hackable, code-able modular synth that can be used in many different ways.
- A system that works with things you already have. Plug in your phone, a drum machine, a laptop, guitar pedals or a microphone.
- A computer that uses tiny program cards that are completely hackable. Anyone who writes code can make, share, sell their creations — sequencers, effects, interfaces.
The Workshop System arrives as a DIY kit which will take a few hours to put together. All the tiny SMD components have already been soldered for you, so the build process consists mainly of soldering jack sockets, potentiometers and switches while following the build guide: musicthing.co.uk/Workshop_System_Build_Guide
The Workshop System kit includes:
- All hardware required to build the Workshop System (PCBs, Front & Back Panel, components, knobs, buttons etc.)
- A rugged hard plastic carry case for easy portability with internal foam cutout to keep the system protected

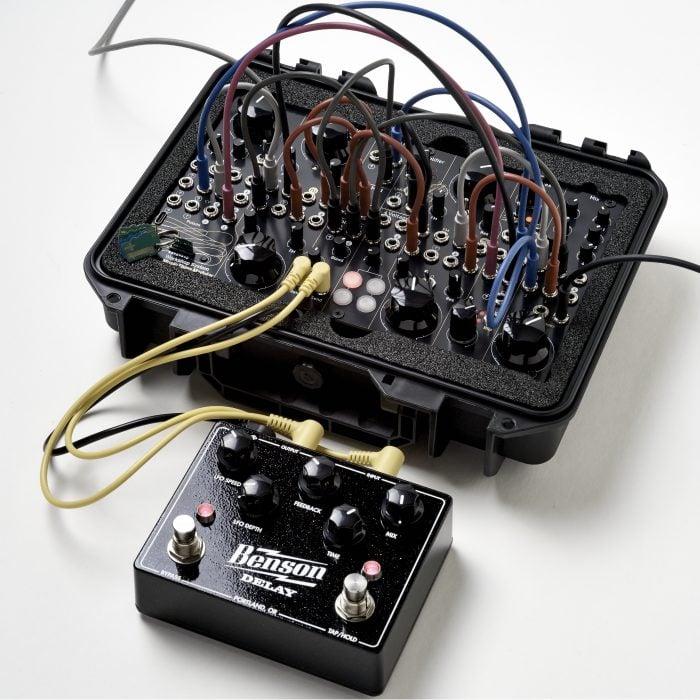

- 2 x audio adaptor cables to plug a guitar pedal into the Stompbox section of the Workshop System – the cables are 3.5mm (1/8″) Minijack to 6.35mm (1/4″) Jack
- A 20cm DC barrel cable for directly powering a guitar pedal from the front of the Workshop – 9V (centre-negative)

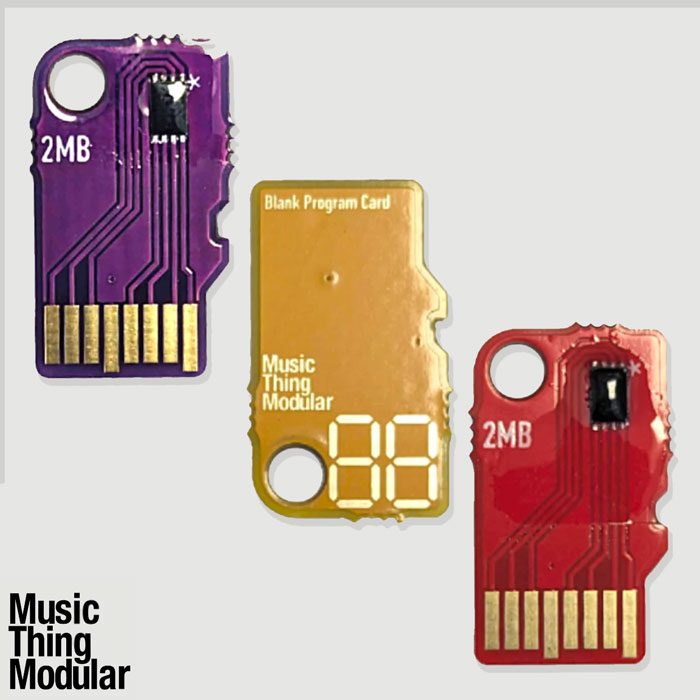

- A keyring and set of 4 x Program Cards to get started using the computer section. The included cards are: a Turing Machine (random looping sequencer), a lush digital Reverb, a MIDI to CV converter and a Blank card to fill with another function of your choice – or to explore creating programmes of your own. More blank cards can be found HERE.
The kit does not include:
- Eurorack patch cables – we figure that many users of modular synths already have patch cables lying around – but if you’re just starting out and would like a set of short patch cables then we have a cable set available HERE
- A power cable – The Workshop System has two power options: The easiest way is via USB-C PD power, but you can also use a regular 15-25v DC barrel connection. The system will happily run from battery powerbanks and laptop adaptors. We feel that there are already enough USB-C cables in the world.
If you do want to source a USB-C wallwart then we recommend using one that’s rated at 30W or above. The following models have been tested as suitable with the Workshop System:
UGREEN 30W | Anker Nano 30W | Anker GaN 30W | UGREEN 45W | BIUBOTY 45W | CSHARE 30W

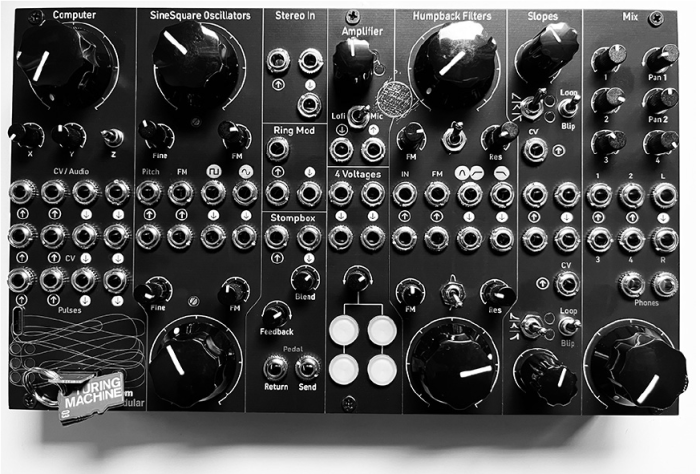

The Workshop System has 14 modules:
- 2 x SineSquare Oscillators Simple vintage-style oscillators made of 1970s tech.
- 2 x Humpback Filters Similarly vintage-style filters, designed by Philip Goulding of God’s Box.
- 2 x Slopes These work as attack/decay envelopes, LFOs and portamento generators.
- Computer Is a multi-function module with knobs, a switch and audio, CV and pulse ins and outs. Initially, the system comes with a USB MIDI card, a Turing Machine sequencer and a Reverb card. A community of programmers are creating more cards.
- Stereo In takes a 3.5mm stereo input and boosts it to modular level.
- Ring Mod is a great-sounding ring modulator, connected to the two sines. It also works as a simple VCA.
- Stompbox is an interface for guitar pedals, with blend and feedback controls to make boring pedals more interesting. There’s a 9v power outlet for pedals below this module.
- Amplifier contains two simple circuits. One is connected to a piezo contact mic behind the panel, the other is the transistor-based input circuit from a MiniMoog. In other words, a Mikrophonie and a Mini Drive.
- 4 Voltages is a minimum viable keyboard: four voltage outputs, one knob, four pushbuttons. More fun to play with than to explain.
- Mix a simple output mixer, with two stereo channels, two mono channels and a powerful headphone amp / line out.
- PSU behind the panel is a power supply that runs on USB-C PD power or professional 15-25v barrel connectors. It works from battery powerbanks and laptop adaptors, most likely something you’ve already got at home.
Workshop System FAQ
- Does it come with the case? Yes
- Can I take it out of the case? Yes
- Does it need patch cables to work? Yes, it makes no sound at all before being patched. A set of patch cables designed for Workshop use are available HERE
- How hard is it to build? All the active components (chips, transistors, resistors etc) are already installed. The Thonk Kit contains four PCBs that need to be populated with Pots, Switches, LEDs, power headers and sockets. Then all the hardware — nuts, knobs, spacers – needs to be installed. It’s fairly time consuming, maybe 1-4 hours, but not difficult for anyone who has soldered a few kits before. If you made a Mikrophonie or 8mu and enjoyed the process, you will enjoy this. If you’ve made a Turing Machine, you’re almost over-qualified. If you’ve never soldered anything before, this probably isn’t the best way to start. Instead, look out for a build workshop, or get in touch if you’d like to organise one.
- Is it Eurorack compatible? Yes, you can remove the back panel PSU and put it in a Euro case – 42hp, around 250mA current draw.
- How do the program cards work? The microcontroller in Computer is an RP2040, the same as a Raspberry Pi Pico. The program cards are the entire flash memory for the Computer, so there is no firmware on the device itself. They can be programmed in C/C++ (Pico SDK), Arduino Pico, Circuit Python or anything else that works on RP2040. Program cards can be re-programmed or updated over USB with a simple drag-and-drop process. You’re welcome to sell or give away any code you create, and can make your own custom cards if you want. Blank card sets can be found HERE
- Is there any normalisation? There is minimal normalisation built in – the two oscillators cross-modulate, and are patched to the Ring Mod, and the top filter High/Band Pass flows into the bottom filter input. So you need a lot of patch cables. However, all the normalisation points are clearly marked on the back of the PCBs, so it’s easy to add your own (removable) normalisation connections with wire and solder.
- When will my order ship? The kits will start shipping out on Wednesday 4th December 2024.
- I changed my mind! Can I cancel my order before it ships? Yes, we can either issue you with store credit for the full amount or refund you minus the ~2-5% for the Credit Card/Paypal fee that is not returned to us.
