A = Audio (Logarithmic) – B = Linear
Discounts are calculated on any combinations of type and value.
Add pots to the cart to see the actual cost for buying in bulk. Email for larger volumes.
|#||Ex-Vat||inc EU VAT|

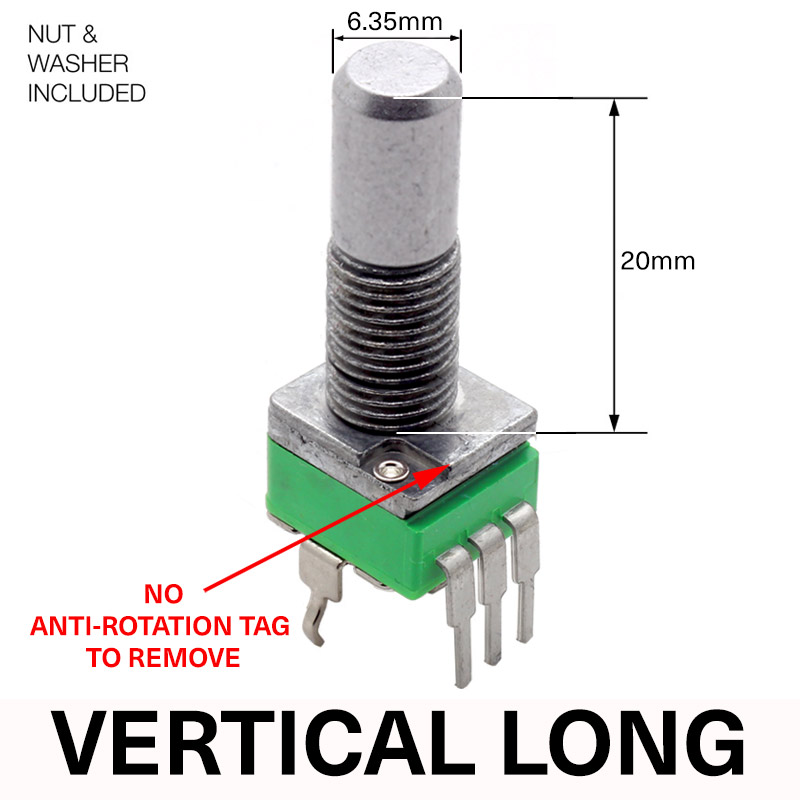

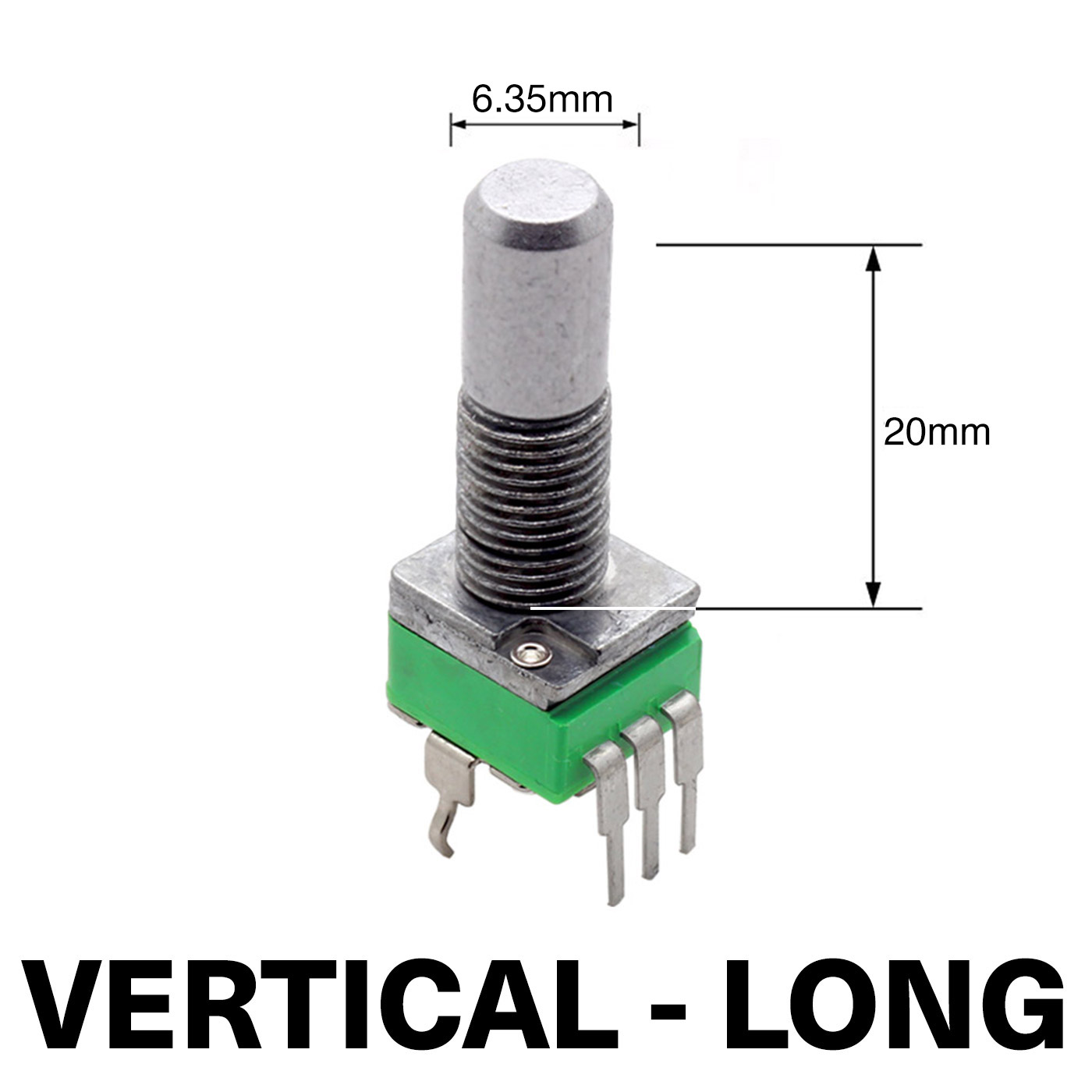

Shaft Diameter – 6.35mm (0.25″)
Shaft Length – 20mm (0.79″)
These pots are almost identical to our regular Alpha round shaft pots but they have a longer shaft of 20mm (10mm thread). The longer shaft is useful when using thicker DIY front panels or when using larger knobs with a high placed set screw. These pots work great with the 6.35mm round shaft knobs we sell, but do check the project specifications carefully to see if the longer shaft is suitable.
Apart from the shaft and thread length all other specs are the same as our shorter 15mm Alpha round shaft pots.
These pots have the same smooth and precise action as the rest of our Alpha range. There’s no anti-rotation tag that you have to cut or break off, and the nut and washer bagged separately. It only saves 20 seconds per pot maybe, but it adds up!

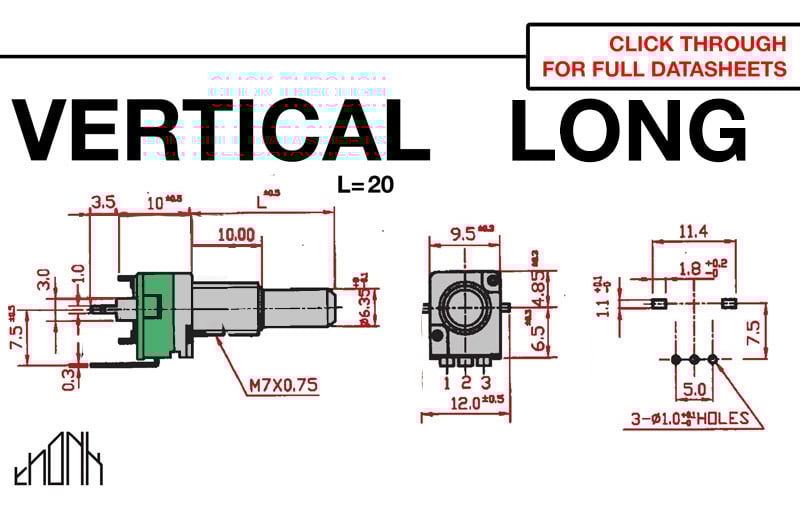

FULL DATASHEETS – https://www.thonk.co.uk/documents/alpha/9mm-long
These pots are available in various values including – A50K, A100K, A1M, B10K, B50K, B100K, B1M.
