Description

Made in China.

BULK DISCOUNTS at foot of page

A = Audio (Logarithmic) – B = Linear

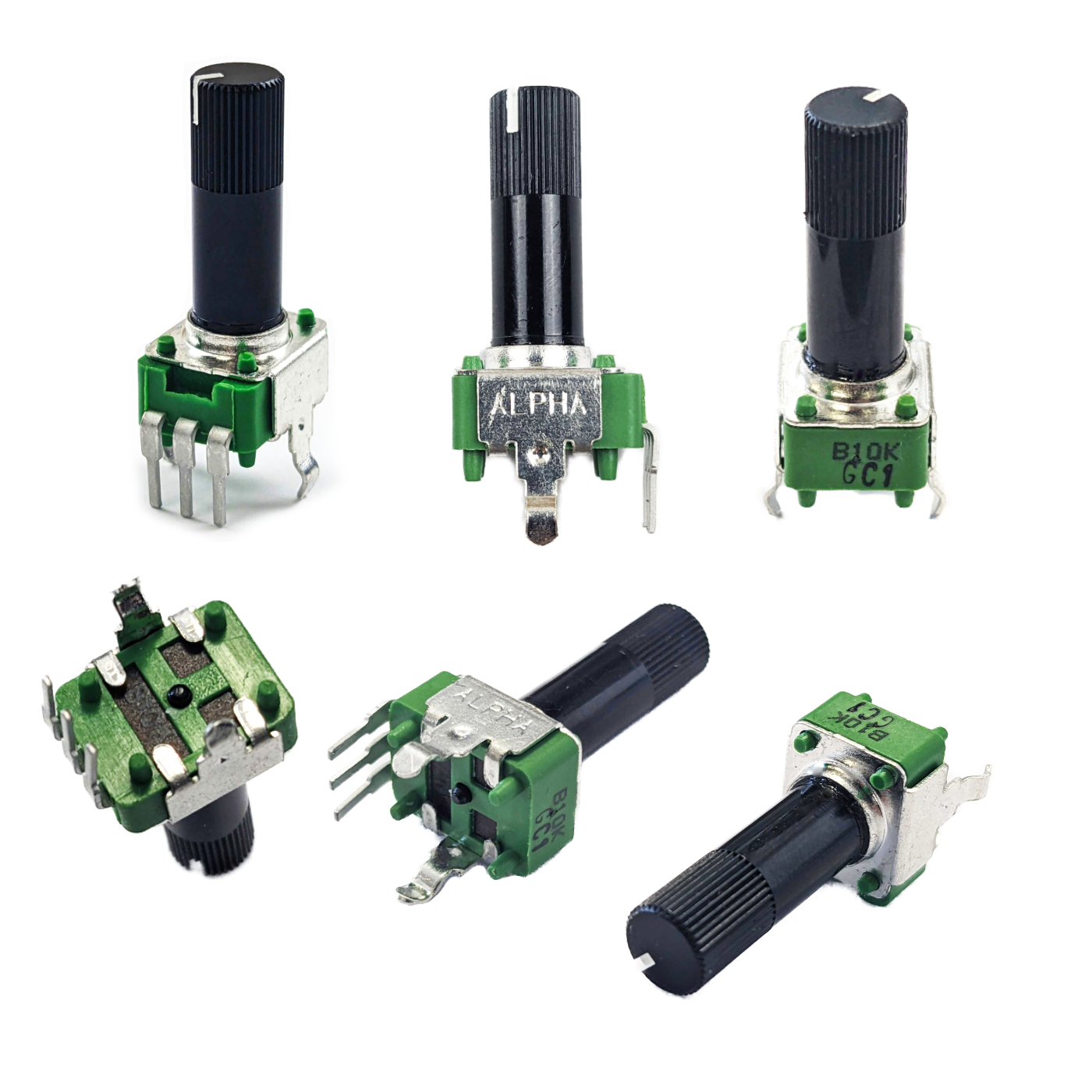

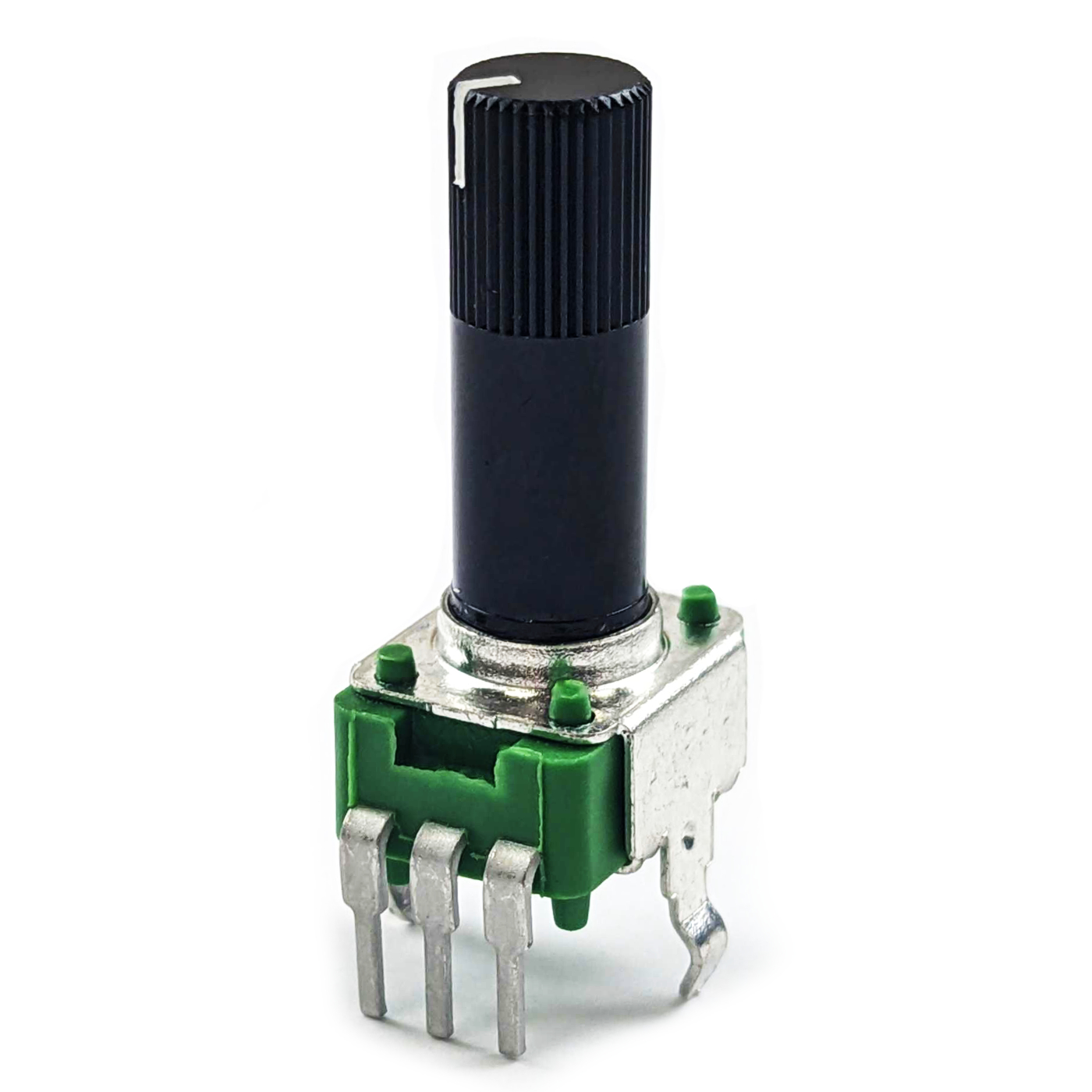

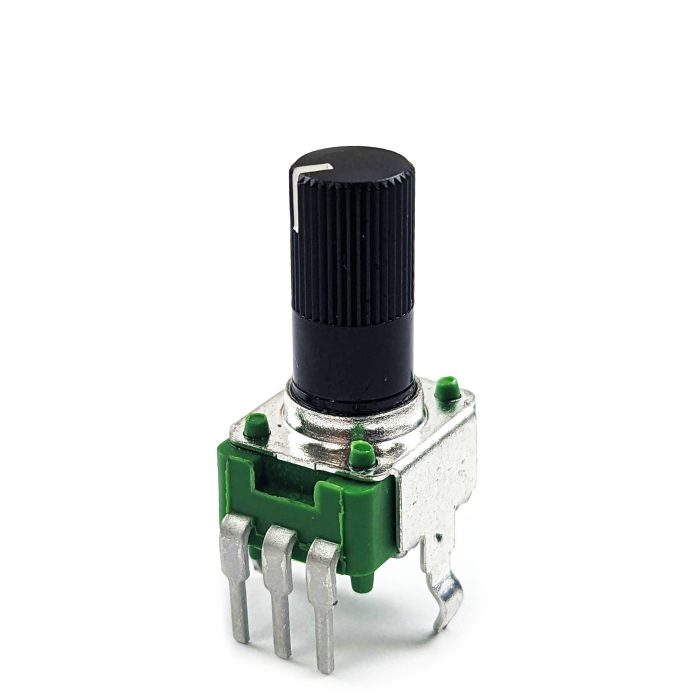

These are direct drop in replacements for the common Song Huei 9mm vertical trimmers. The shaft width and PCB footprint are identical to the Song Huei parts, so there’s no requirement to modify any panel or PCB designs.

They are also directly compatible with many other 9mm pot footprints from Bourns, Panasonic and others, see the datasheets for footprint details.

These trimmers pots have a 6mm diameter shaft, so 6mm or 6.35mm round shaft knobs will work with them. Ideally use these adaptors too to get knobs running properly concentrically.

If you need a value that isn’t listed here then try our Song Huei parts or email us.

Datasheets: B10K, B100K, B1M, A10K, A50K,  A100K, B10K Centre-Detent, B100K Centre-Detent,



BULK DISCOUNTS

Discounts are calculated on any combinations of type and value.
Add pots to the cart to see the actual cost for buying in bulk. Email for larger volumes.

#	Discount %
1+
10+	14%
25+	19%
50+	28%
100+	32%
250+	35%
500+	37%
1000+	41%
2500+	47%
5000+	52%
10000+	58%
