AT-AT-AT – Triple Attenuator Panel & PCB set

£12.00£16.00 (Excl. VAT)

Eurorack passive triple attenuator module

Note: this is a Panel & PCB set only – for full kit go here

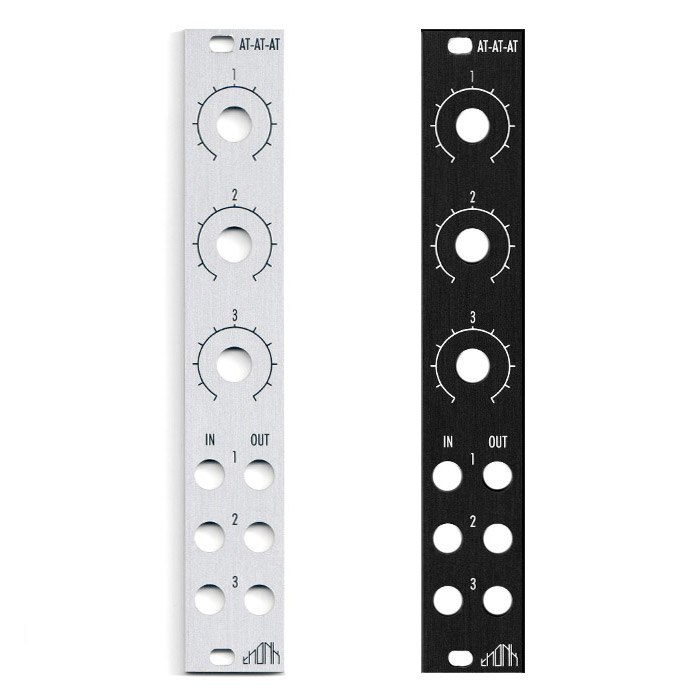

Choose panel type/colour

SKU: Bundle_TH_ATATAT-panel-pcb Categories: , , Brand:

Description

Eurorack passive triple attenuator module (4hp).

A very simple and very useful Eurorack Utility. Below you’ll find links to very thorough build instructions written with synth DIY beginners in mind. This module requires no power from your busboard or prior electronic knowledge, it’s completely passive.

Each of the three attenuators can be set to either a linear or logarithmic response with a jumper on the back of the PCB. Linear is more user friendly for CV attenuation, Log for audio signal attenuation.

Build time: 20-60 mins depending on experience.

BOM:

6 x Thonkiconn Jacks (with Knurl Nuts)
3 x Black 1900h Knobs
3 x Vertical B100k Pots
3 x 10k resistors (1%, 0.25W, Metal Film)
3 x 3 pin MALE header
3 x Shunts
2 x screws (for case mounting)

Build Documentation

https://thonk.co.uk/documents/at-at-at/
