Description

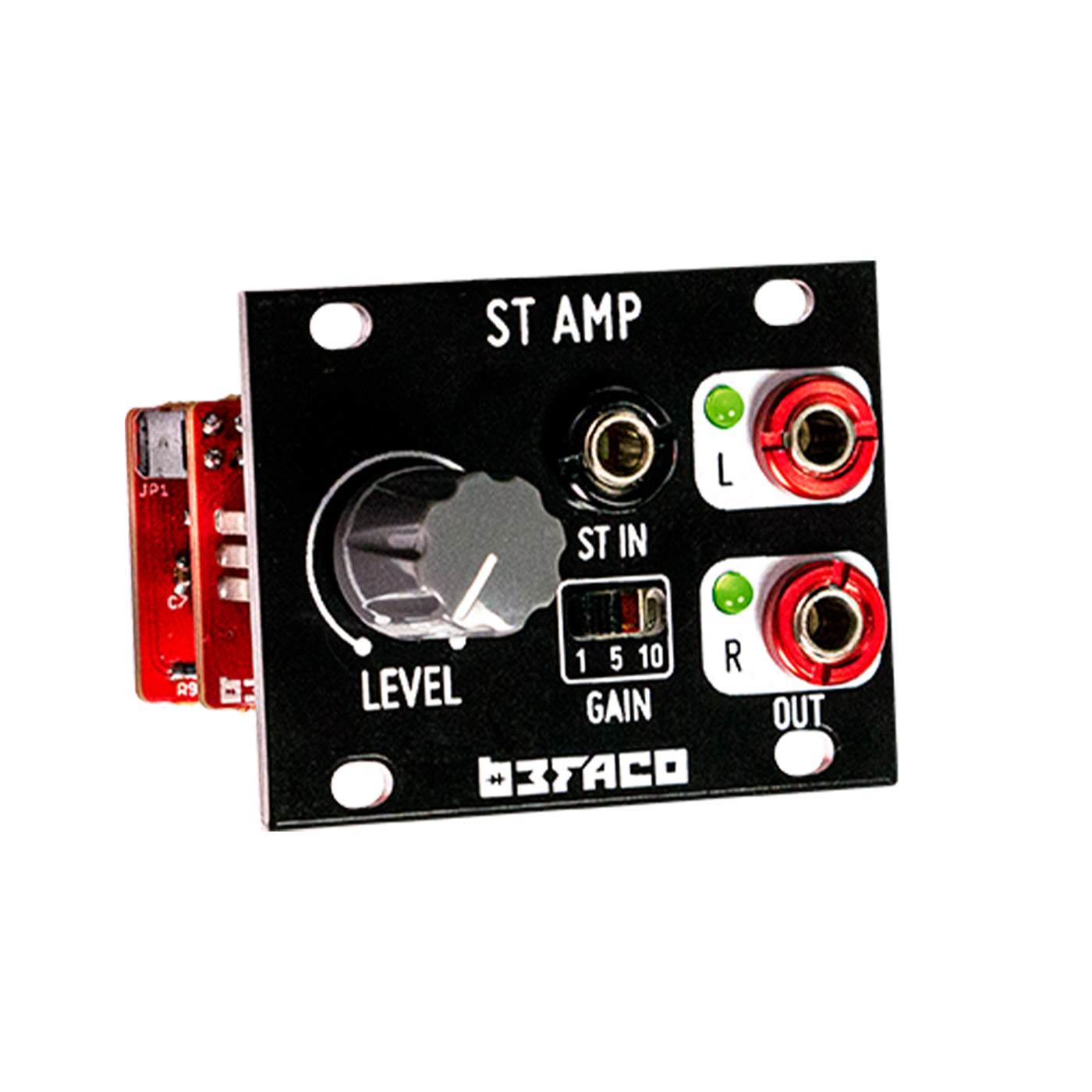

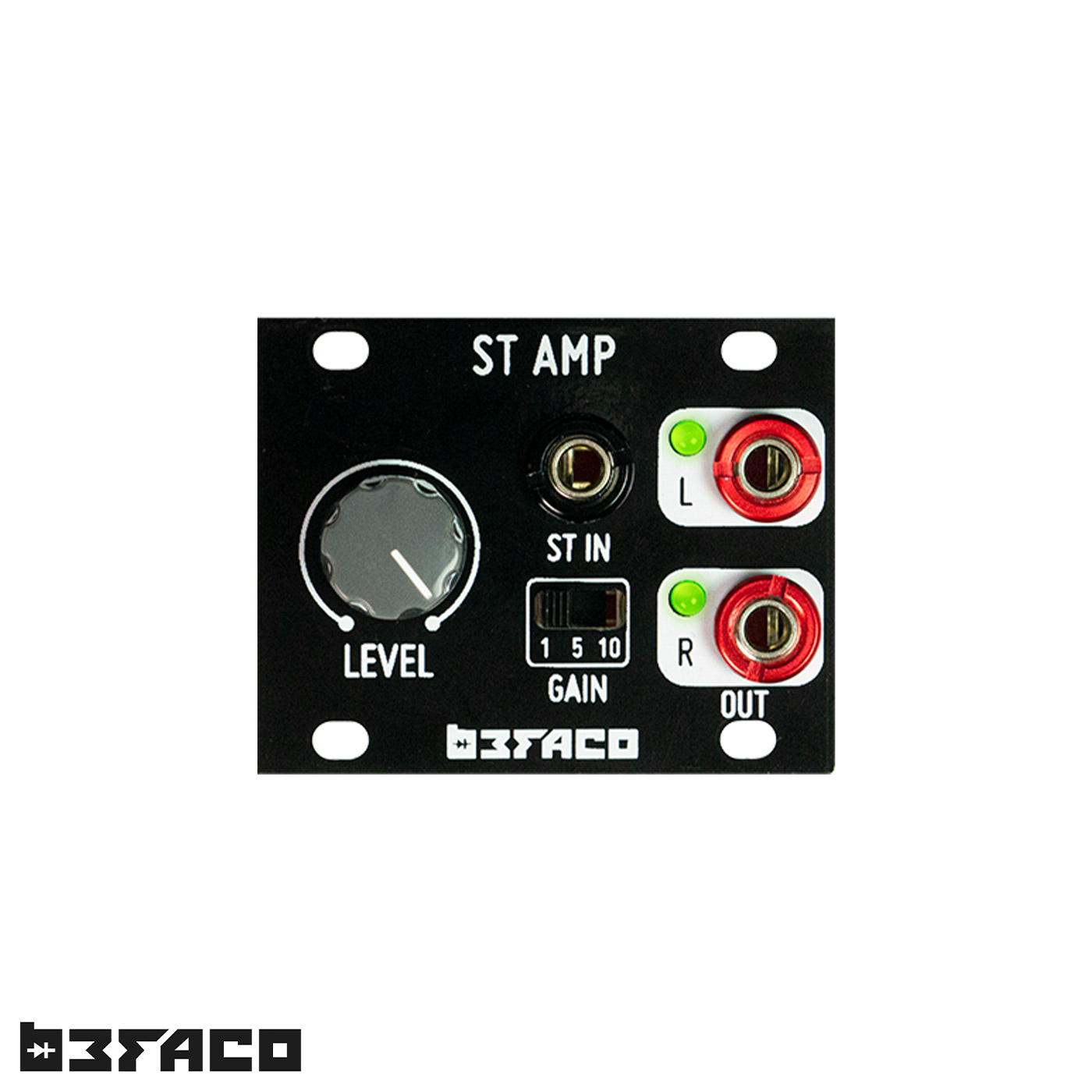

ST Amp is a 1U stereo amplifier designed to boost your external signals into modular levels. The module is designed under the Intellijel 1U format and uses the same pinout, making it fully compatible with the Intellijel case’s rear connectors.

Features:

• Stereo amplifier and signal booster.
• Three selectable gain modes: x1, x5 and x10
• Level meter LEDs
• Fully compatible with Intellijel’s 7U and Palette cases.
• 1U Intellijel format.

Specs:

• Power Consumption: +12V: 30mA, -12V: 30mA
• Width: 10 HP
• Depth: 37mm (including power connector)
• Aluminium, heat-treated front panel

1U ST Amp – Build Document | User Manual
