Illuminated Tact Switches

£1.00£1.40 (Excl. VAT)

Short stroke, light tact feeling buttons with a long life switch and illuminated LED in various colours.

SKU: Var_LED-Buttons Categories: , , , , , Brand:

Description

A short stroke, light tact feeling and long life switch with a button.

Part Number – KS01-BLV

As used in Prok modules

Manufacturer HIGHLY
Type of switch keypad
Number of positions 2
Contacts configuration SPST-NO
DC contacts rating @R 0.01A / 35V DC
Actuator colour colourless

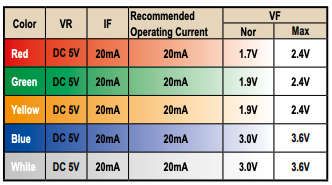

Illumination LED
Backlight colour red
Mounting THT
Leads for PCB,  straight
Switching method OFF-(ON)
Operating temperature -20…60°C

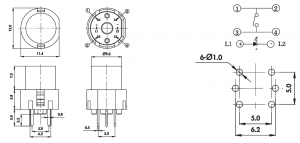

Body dimensions Ø12mm
Stable positions number 1
Operating Force 1.3N
Max. contact resistance: 30mΩ
Min. insulation resistance 100MΩ
Electrical life 100000 cycles
Button shape round
Terminal pitch 5x5mm
