Description

Made in China.

SPST – Momentary – OFF – (ON) button switch

As used in Thonk Synth Double Bubble and Cutlasses Gloop

Highly KS01-B – Datasheet PDF

Description: Switch: keypad; Pos: 2; SPST-NO; 0.01A/35VDC; THT; Ø12mm
Type of switch: keypad
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
DC contacts rating @R: 0.01A / 35V DC
Switching method: OFF-(ON)
Illumination: none
Leads: for PCB; straight
Electrical life: 100000 cycles
Max. contact resistance:: 30mΩ
Operating Force: 1.3N
Operating temperature: -20…60°C

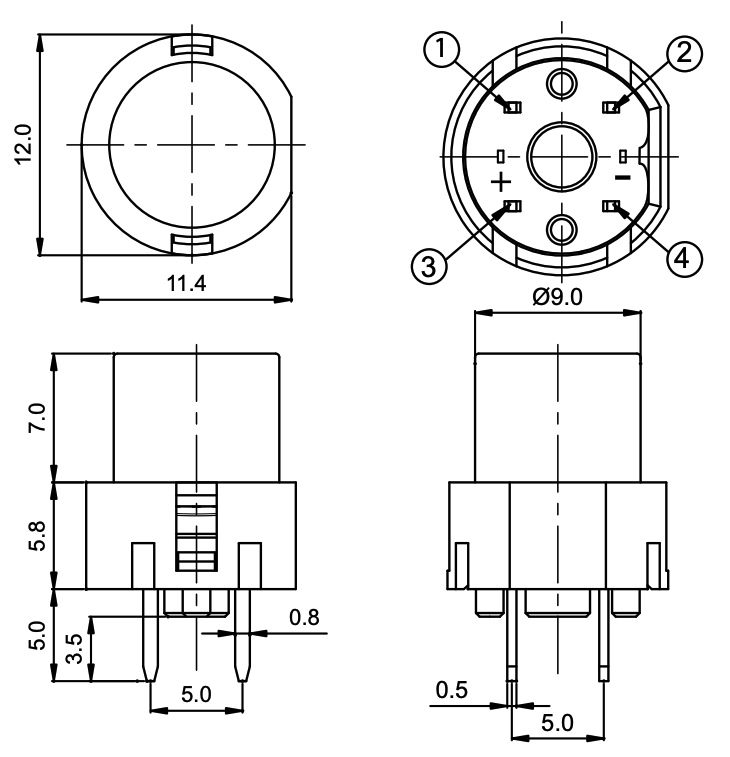

Terminal pitch: 5x5mm
Body dimensions: Ø12mm
Min. insulation resistance: 0.1GΩ
Manufacturer series: KS01
Mounting: THT
Button shape: round

Part Codes

Black KS01-BV-BK
Red KS01-BV-R
