Kassutronics – Ladder Filter – Panel & PCB Set

£15.00 (Excl. VAT)

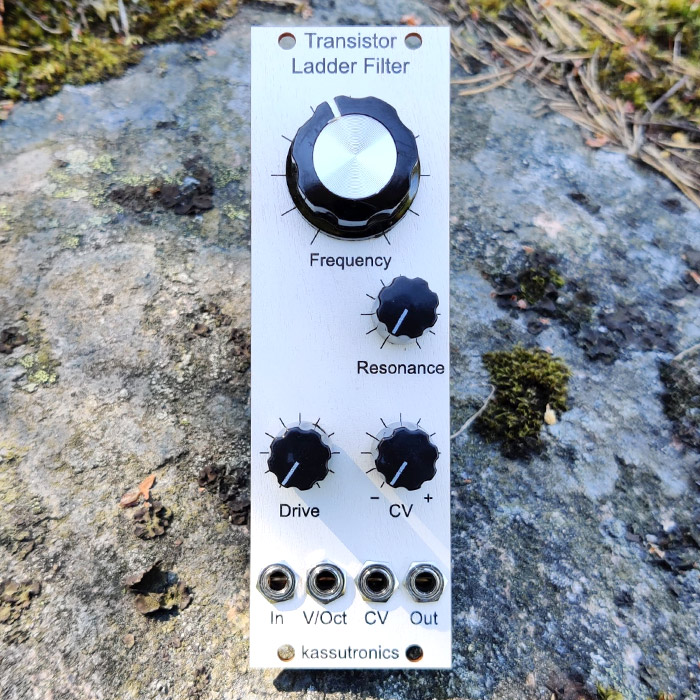

4-Pole Ladder Filter

Note: This Panel/PCB set has a wooden frontpanel

Out of stock

You must register to use the waitlist feature. Please login or create an account
SKU: PP_Kassu_Transistor_Ladder Categories: , Brand: HP Size: 8 HP

Description

This filter design is inspired by the famous transistor ladder filter. This module uses the traditional transistor ladder core circuit and exponential converter, but has a few circuit adjustments. Kaasutronics have also added a CV input with attenuverter and a Drive control. The drive allows the input saturation to be adjusted, which is a significant part of this filters characteristic sound.

The PCB fits behind an 8HP Eurorack panel with all through-hole components and no wiring required.

Ladder Filter – Build documentation | Kassutronics Blog

Additional information

Weight 0.02335 kg
HP Size
