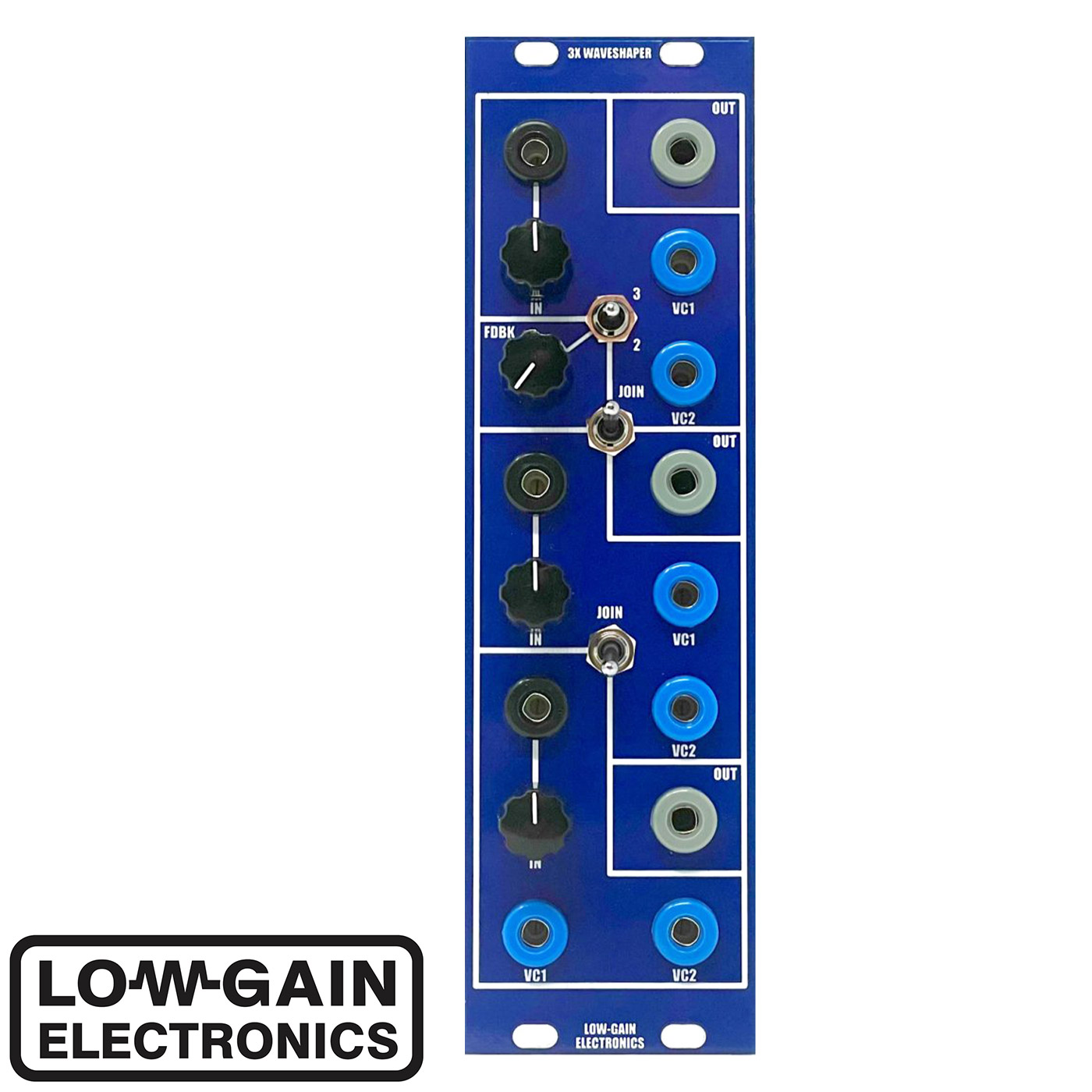

Low-Gain LGE085 – 3x Waveshaper – Panel & PCB Set

£34.50 (Excl. VAT)

Triple waveshaper with feedback

Note: this is a panel & pcb set only in 4U format.

Only 2 left in stock

SKU: PP_Low_Gain_Electronics_LGE085 Categories: , , , Brand:

Description

Inspired by the classic Serge design. Easy to assemble – no wiring (flying wires) required.

Specs:

  • PCB Size: 6” x 2”
  • Width: 2HP
  • Depth: 40mm

LGE085 Main PCB Bill of Materials
LGE085 Main PCB Schematic
LGE085 Main PCB Layout w/ Designators
LGE085 Main PCB Layout w/ Values
LGE085C I/O Bill of Materials
LGE085C I/O PCB Schematic (wiring diagram)
LGE085C I/O PCB Layout w/ Designators
Mechanical Parts BOM generally required for building Low-Gain Electronics Modules

** 4U Modular is a term used for the format most commonly known as “Serge Format” or “Loudest Warning Format”. Out of respect for the ever growing format, 4U Modular is the easiest way to refer to it. More Specifically it refers to the panel height and mounting hole style. 4U Modular will patch up just fine with other 4U “Serge” formats such as “Random Source”, but it will not mount in RS boats or Buchla Boats (or power off Buchla power for that matter).
