Description

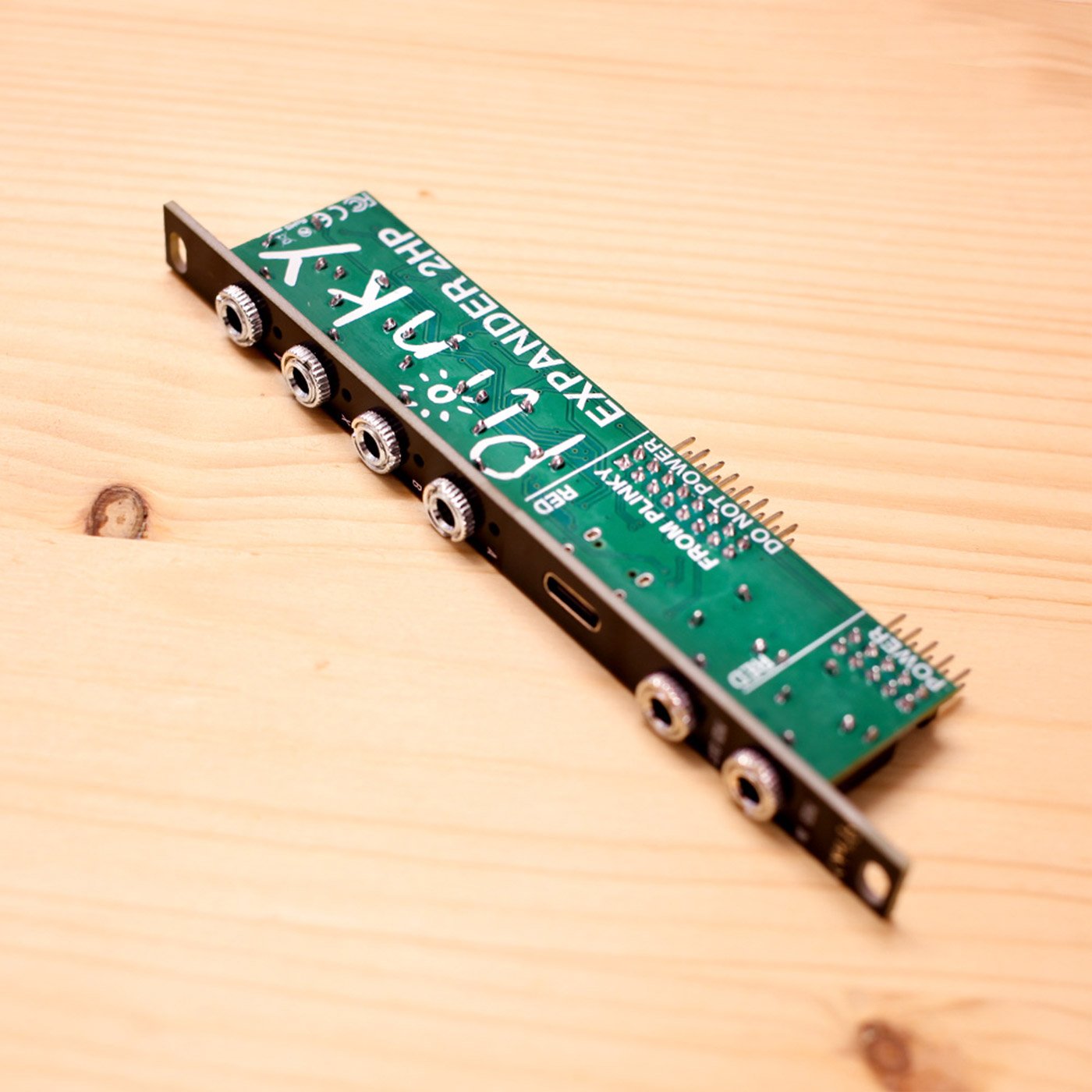

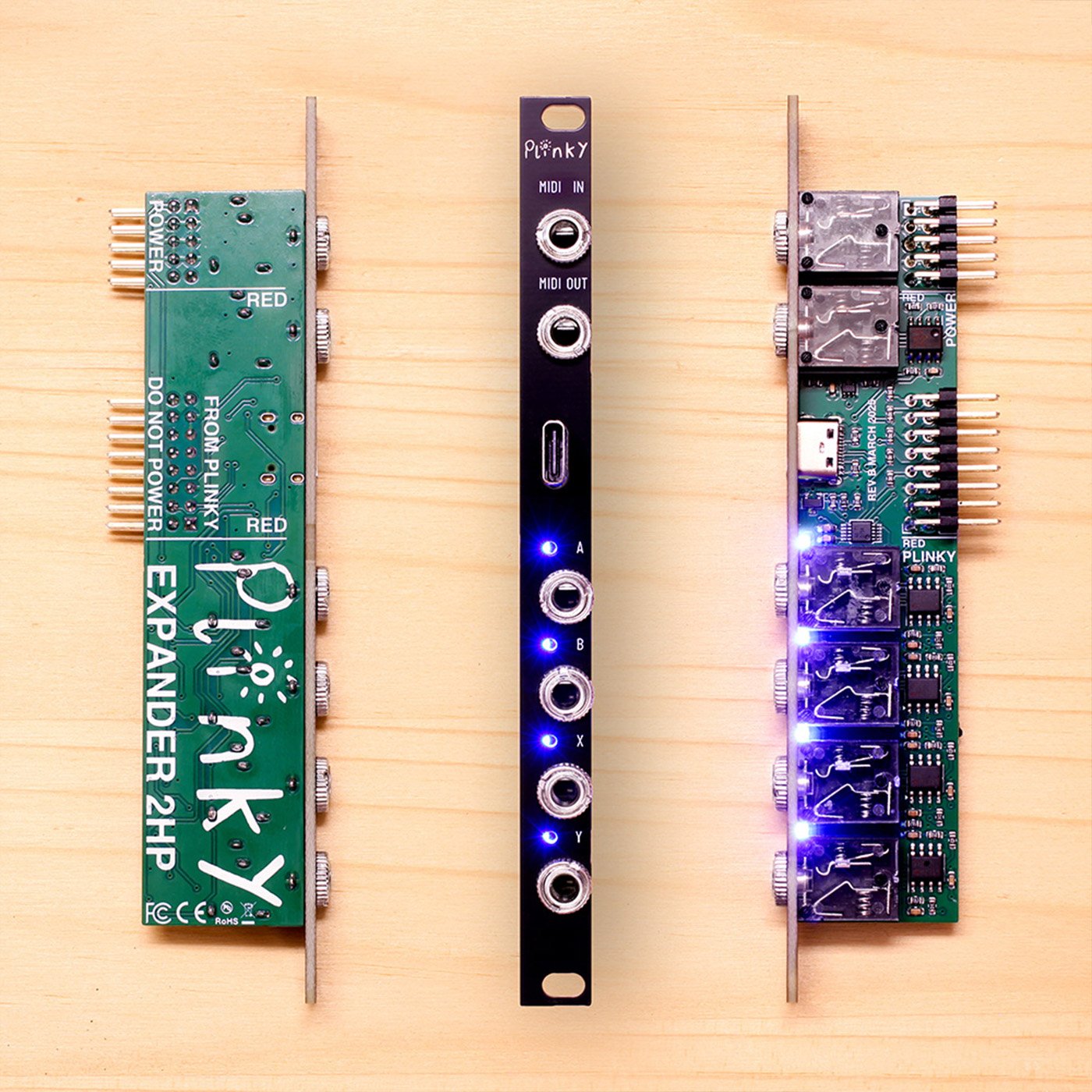

The Plinky Expander is a 2HP assembled module that offers extra functionality when using Plinky in your Eurorack.

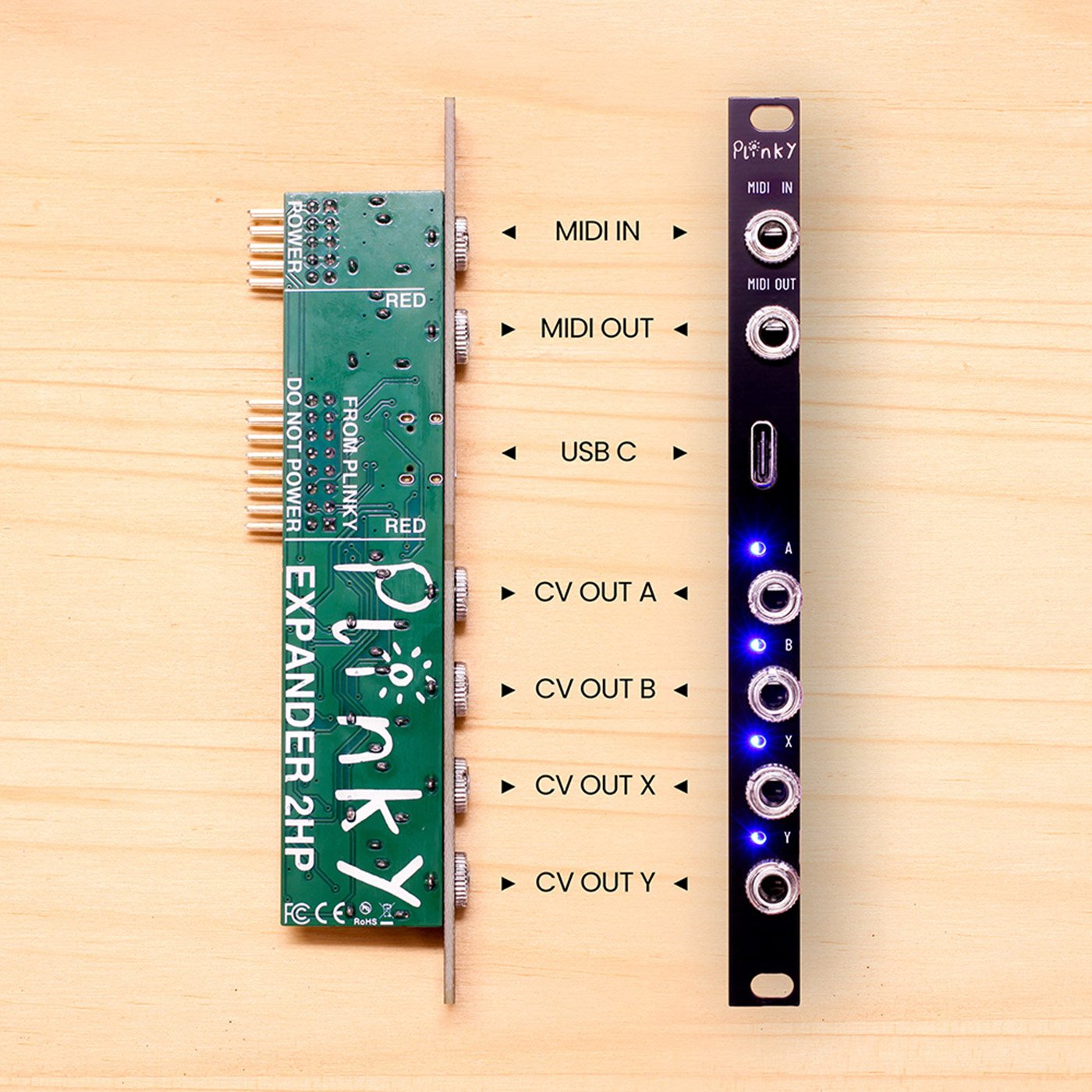

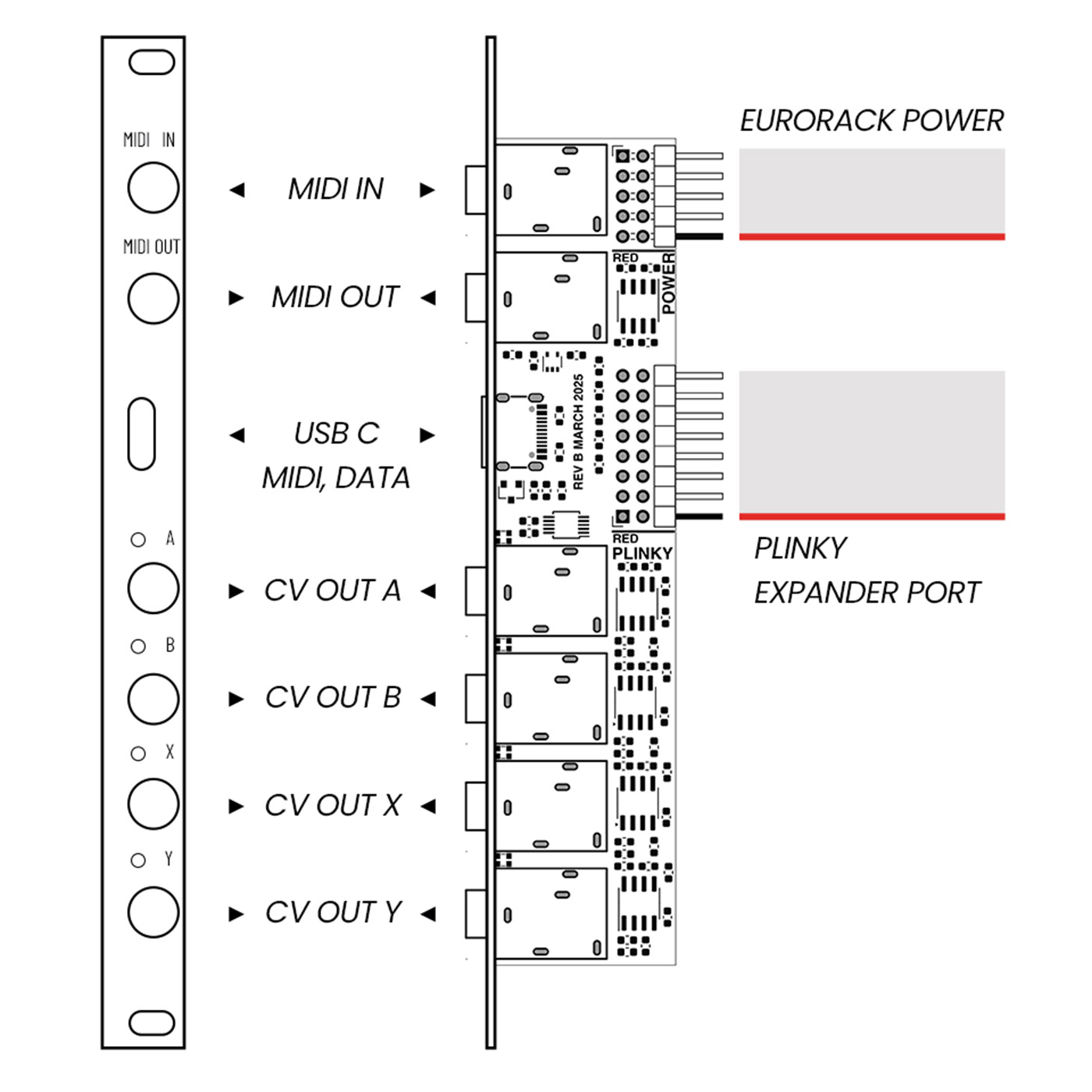

This expander adds four additional CV outputs to connect with the rest of your Eurorack setup, as well as a frontside USB-C port and TRS MIDI allowing for access these ports when Plinky is rack mounted.

• TRS MIDI Input
  Supports both Type A (Korg) and B (Arturia)
• TRS MIDI Output
  Supports Type A (Korg)
• USB C
  Edit patches and interface with MIDI over USB, and update Firmware with Plinky in the rack.

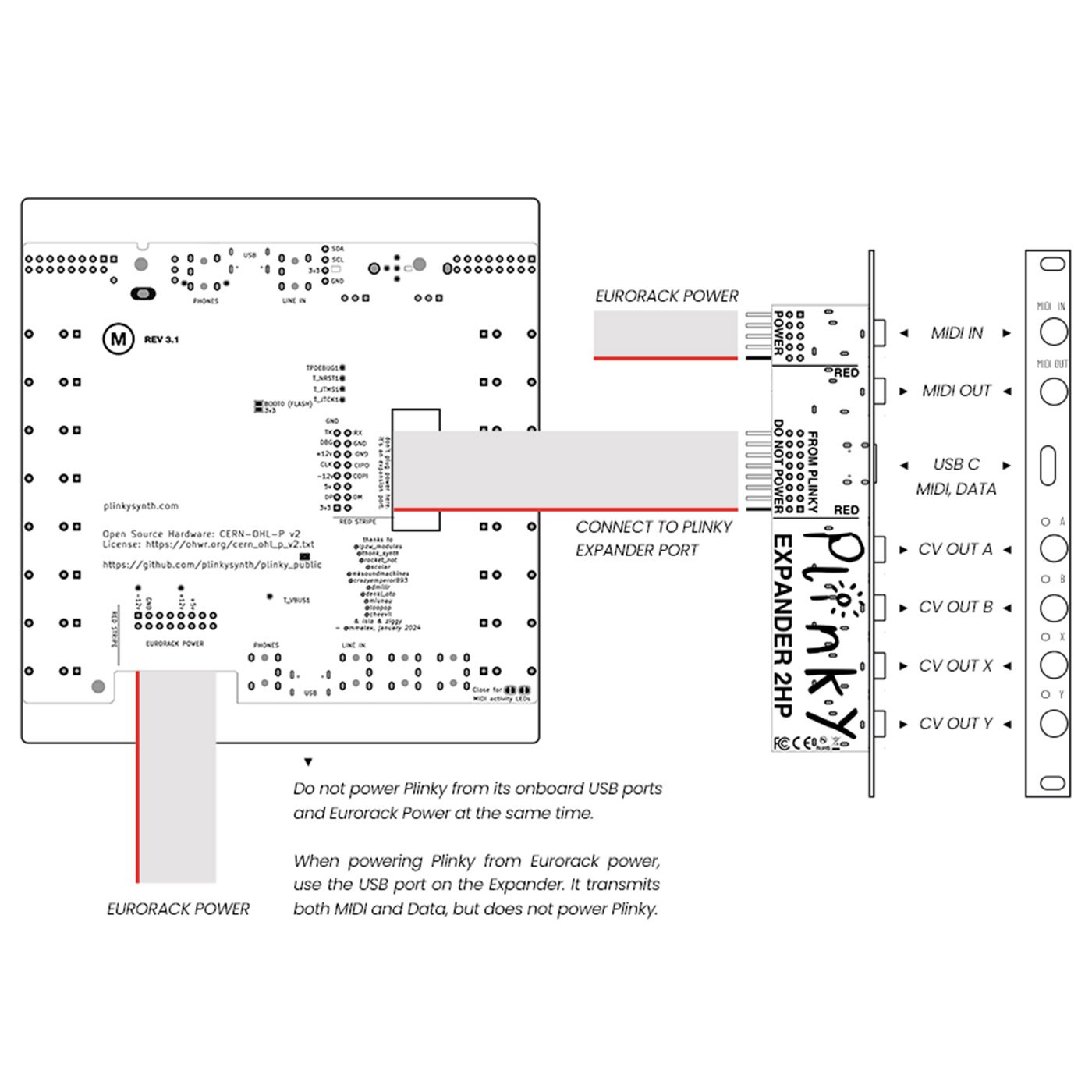

  Note that you can not power Plinky from this port.
• A B X Y Outputs
  Output Plinky‘s A B X Y modulation as CV

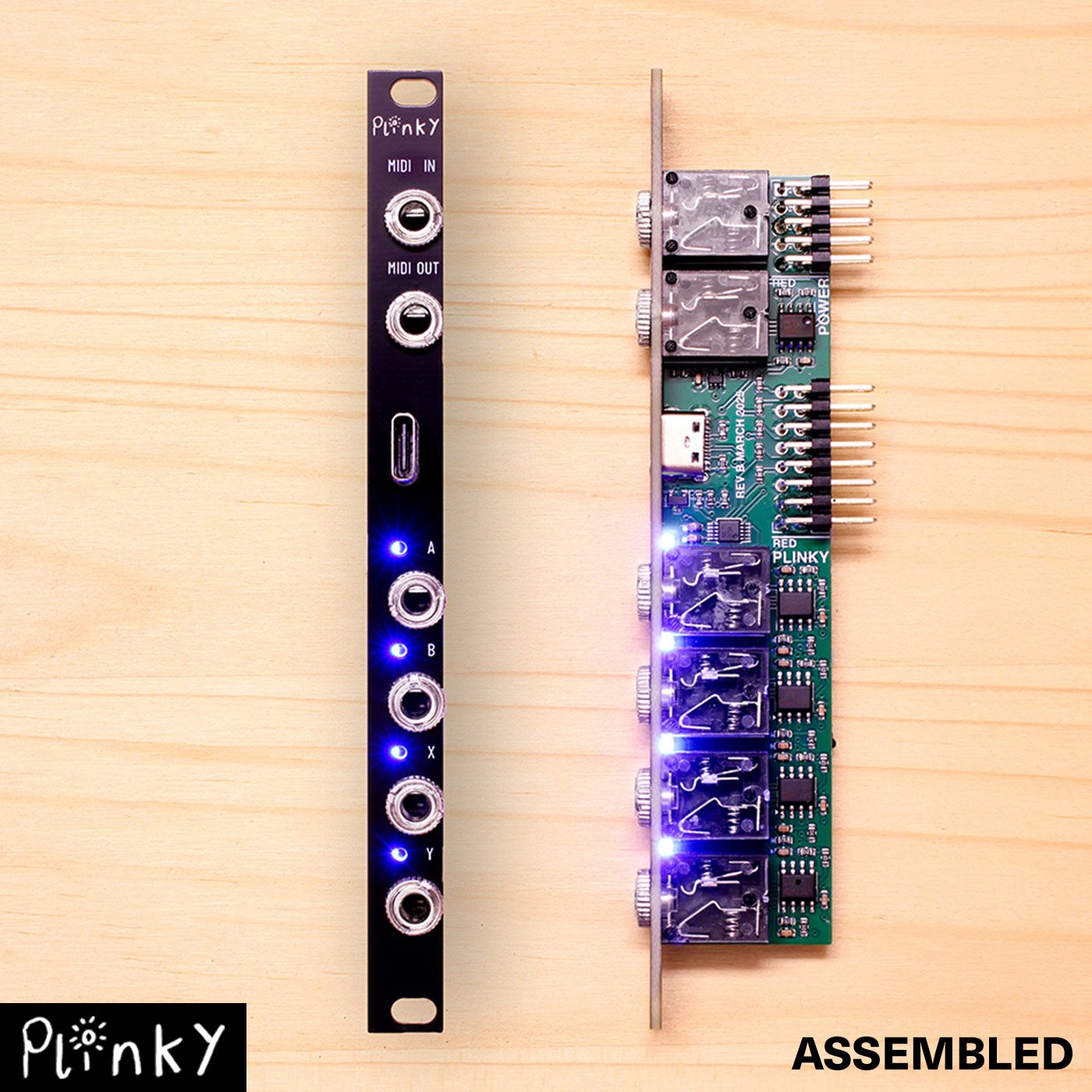

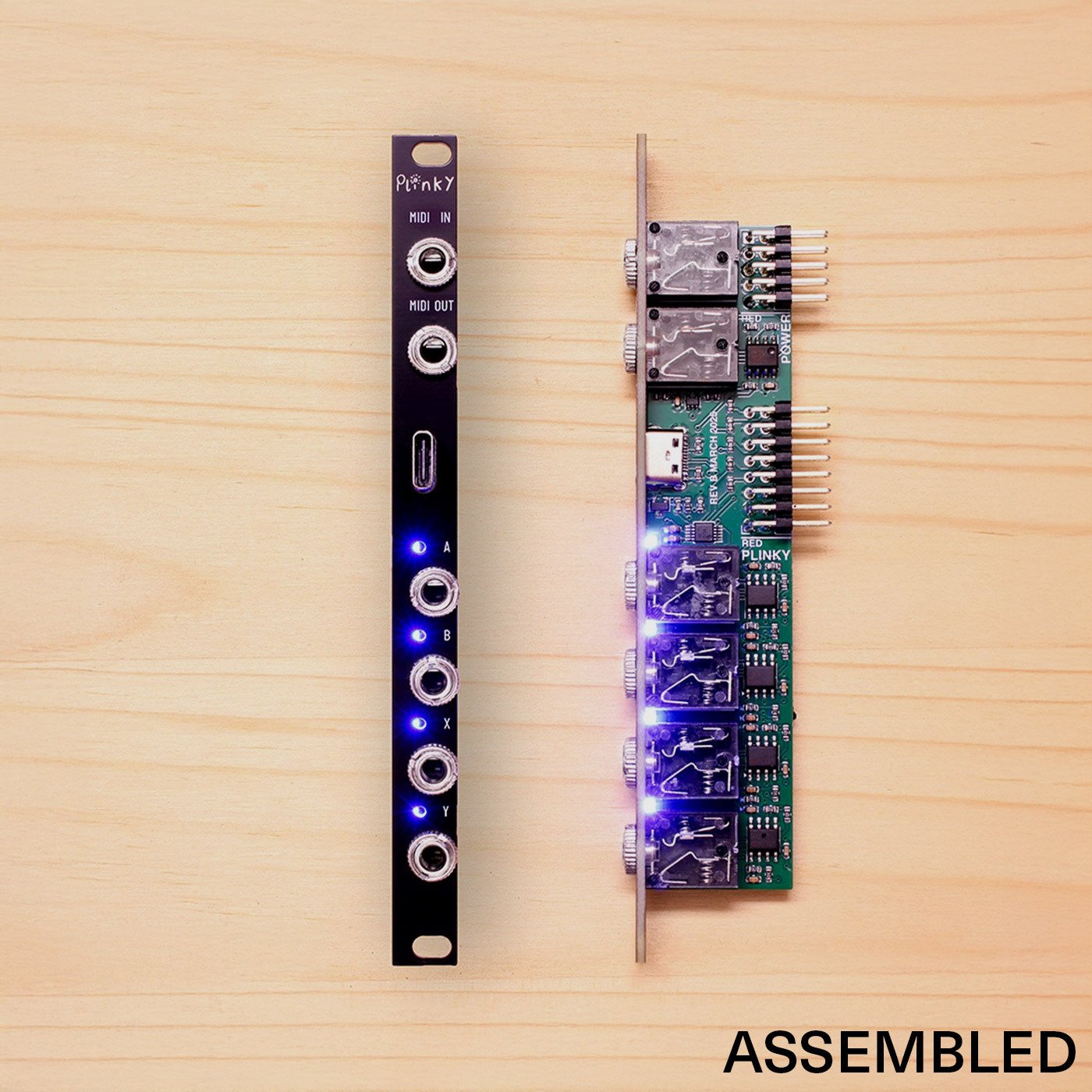

The 2HP Expander is an updated revision of the classic 4HP DIY Plinky Expander, now available as a factory-built and tested module offering the same features in a more compact form factor.

This version is compatible with Plinky v3 (black) and Plinky v2 (blue). For compatibility with Plinky v1 (green), you have to do a modification on your Plinky Expander port as described here.

Plinky Expander 2HP – User manual & connection guide
