Description

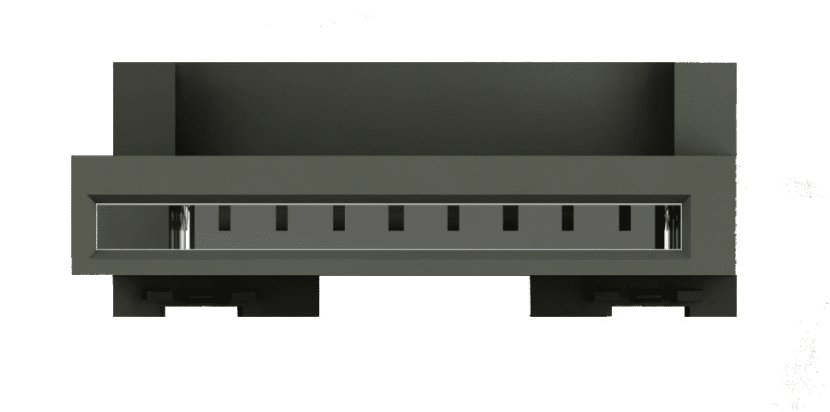

This is the PJS008U-3000, a vertical Micro SD Card Reader from Yamaichi which is required for the Radio Music based projects including Chord Organ. It is also used in the Prok drum modules and other Eurorack projects.
- Robust dip soldering terminal
- Small board space
- Sequencial mating / unmating contacts
- Vertical insertion
- ROHS compliant
DATASHEET – PJS008U-3000
Mouser No: 945-PJS008U-3000-0
Mfr. No: PJS008U-3000-0
NOTE: This comes free with all Radio Music, Chord Organ and Prok PCB sets from Thonk and is included with all full kits requiring it.
| Insulation Resistance: | 1,000MΩ min. at 250V DC |
| Withstanding Voltage: | 250V AC rms for 1 minute |
| Contact Resistance: | 100mΩ at 1mA / 20mV max. |
| Voltage Rating: | 50Vrms AC |
| Current Rating: | 0.5A |
| Operating Temp. Range: | –25°C to +85°C |
| Mating Cycles: | 10,000 times, insertion / extraction |
| Insulator: | LCP |
| DIP Terminals: | Brass, Plating Ni / Tin |
| Contacts: | PB, Plating Ni-Au / Tin |
