Description

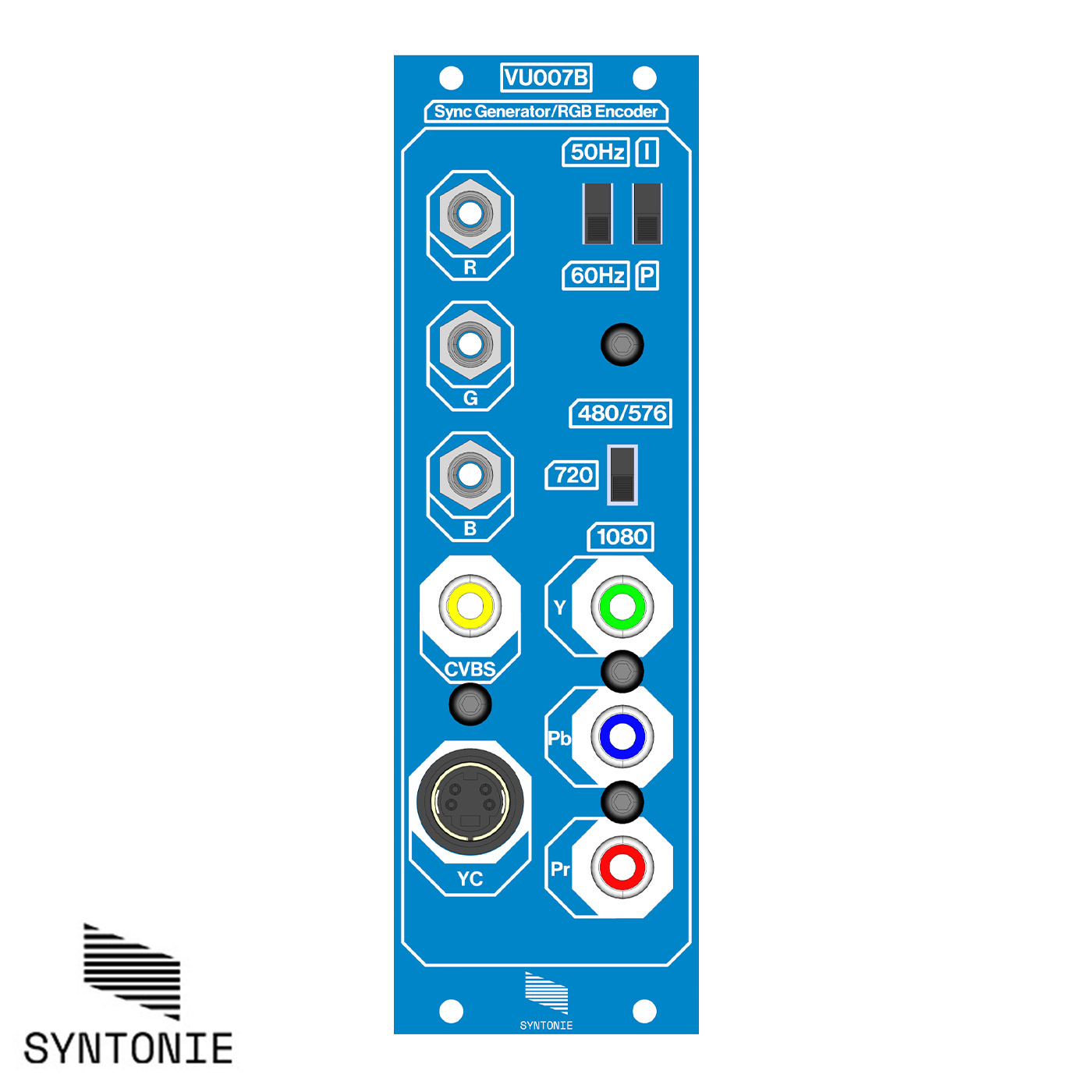

The VU007B is a RGB to Composite/S-Video/Component encoder for video modular systems . The sync generator is capable of the following standards (selected by the mean of 3 slide switches):

• 288p50
• 240p59.94
• 576i50
• 480i59.94
• 576p50
• 480p59.94
• 720p50
• 720p60
• 1080i50
• 1080i60
• 1080p25
• 1080p30

RCA sync I/O  can be found at the rear of the module

Inputs:

• 0-1V RGB, 499 ohm, jack
• 0-700mV Sync in, 75 ohm, RCA (rear)

Outputs:

• 0-700mV YPbPr/CVBS, 75 ohm, RCA
• 0-700mV S-Video, 75 ohm, Mini Din-5
• 0-700mV Sync out, 75 ohm, RCA (rear)

Specs:

• 8 HP
• 120mA +12V
• 60mA -12V
• 50mm deep

(Depth indicated is with power cable fitted but without RCA cable plugged in. Vertical RCA sockets are used at the rear of the module, with the tallest RCA we’ve tested, the total depth is around 70mm, smaller or right angle RCA cable is ideal for shallow eurorack cases.)

Includes all SMD parts are already pre-populated (AD724, ADA4851-4, 4.43MHz/3.58MHz crystals), as well as pre-assembled, flashed and tested sync generator board.

VU007B – Build Document | User Manual
