Description
Dual multi‑mode analog filter & triple modulation source

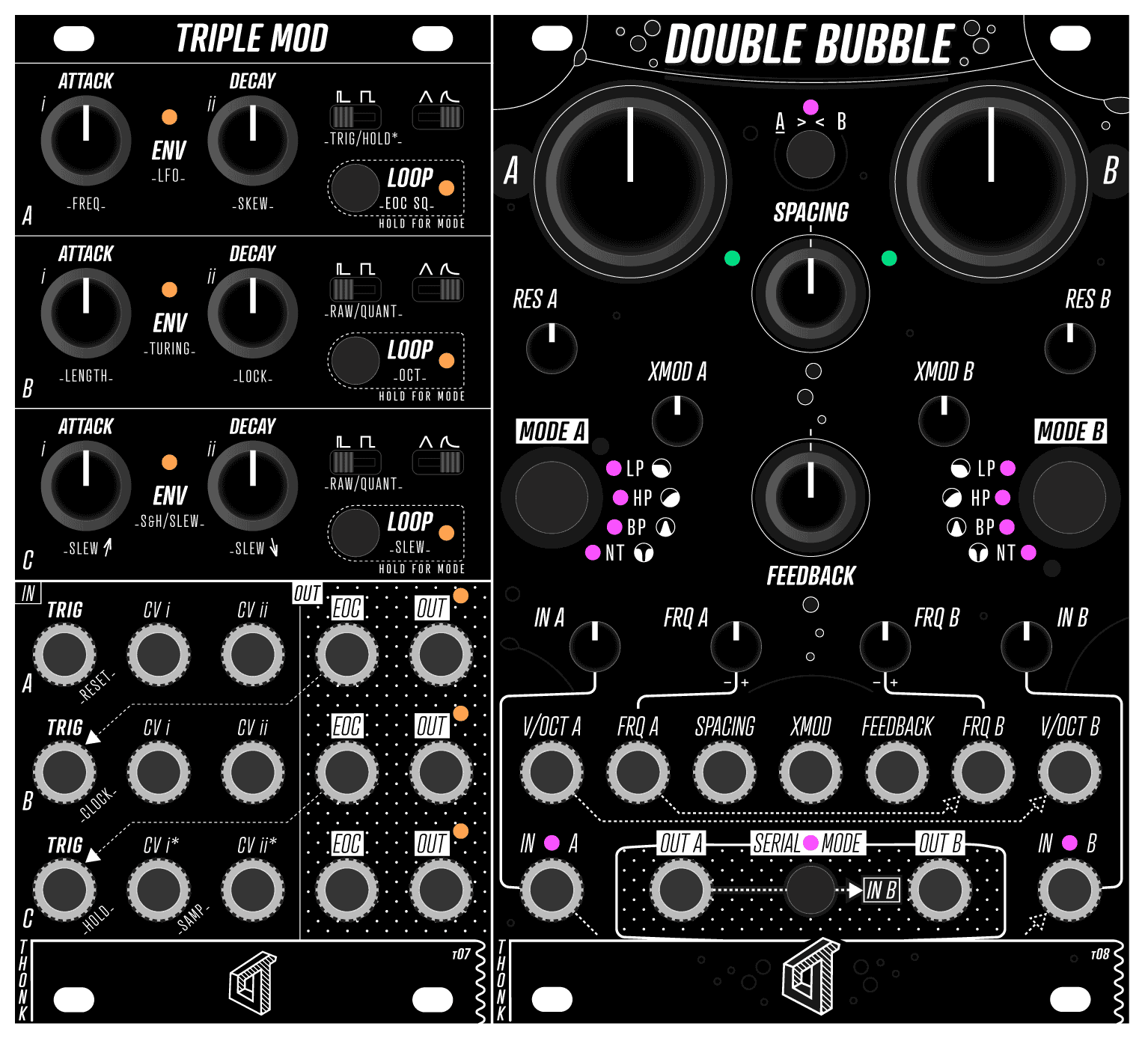

This 28HP bundle includes:
1x Double Bubble (t08) kit – 16HP
Double Bubble is a 16HP Eurorack dual analog multi‑mode filter designed for creative sound design and flexible signal processing. Each channel features an analog filter core that can operate in one of four modes – Low‑Pass, High‑Pass, Band‑Pass, or Notch. The input of Channel A is normalled to Channel B so its easy to create stereo filter patches from a mono sound source.
Double Bubble can also be routed in serial configuration to create more complex signal paths such as a variable width bandpass or notch phasing effects. The SPACING control along with a wide range of CV inputs give deep modulation possibilities such as dynamic formant style filtering. Read more HERE
1x Triple Mod (t07) kit – 12HP
Triple Mod is a 12HP 3 channel modulation source. The default state for each channel is a an Attack / Decay envelope generator with CV control over rise and fall times, looping, linear/logarithmic slopes, trigger/gate modes and an end-of-cycle (EOC) output.
Each channel also has an unique additional mode which is accessed by pressing the loop button for 2 seconds:
- Channel A becomes a wide ranging LFO with skew function.
- Channel B transforms into a Turing Machine looping random sequencer.
- Channel C becomes a Sample & Hold (S&H) with slew options, or a slew rate limiter with separate Attack and Decay controls.
Read more HERE
Documentation:
t07 Triple Mod – Build Document | User Manual | Modular Grid
t08 Double Bubble – Build Document | User Manual | Modular Grid
