Description
Grid System
Grid is a modular creative controller built for musicians, producers, video editors and all digital artists who demand more from their gear. Whether you’re in the studio or on the go, Grid gives you the tools to work the way you want.
Separate Grid modules connect magnetically and draw power from a single USB-C cable. Without the need for a hub, one cable enables control over your whole Grid setup, and supplies enough power for up to 8 modules connected together.
More than just a MIDI controller—Grid is a customizable control surface that adapts to any creative workflow. From tweaking synth parameters to launching clips or triggering automations, Grid is made to keep up with your creativity.
PBF4 Controller

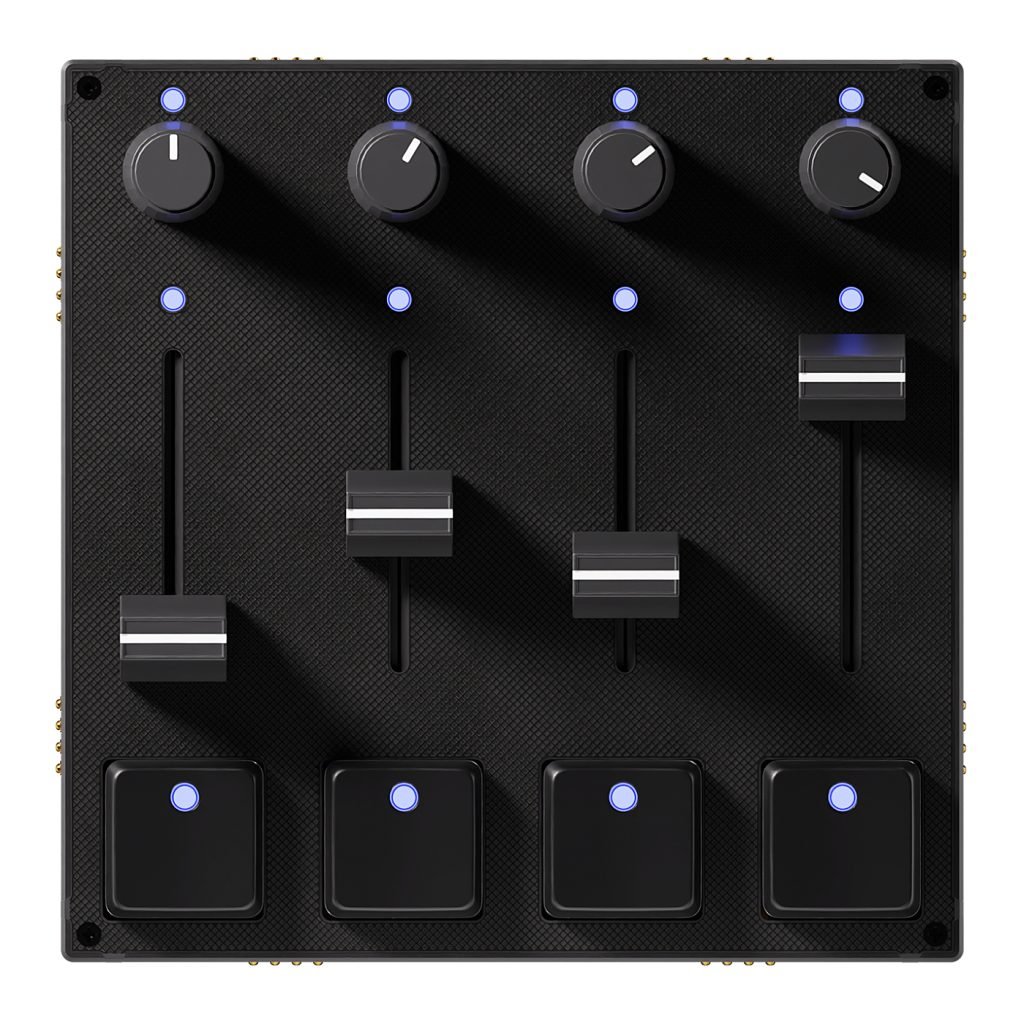

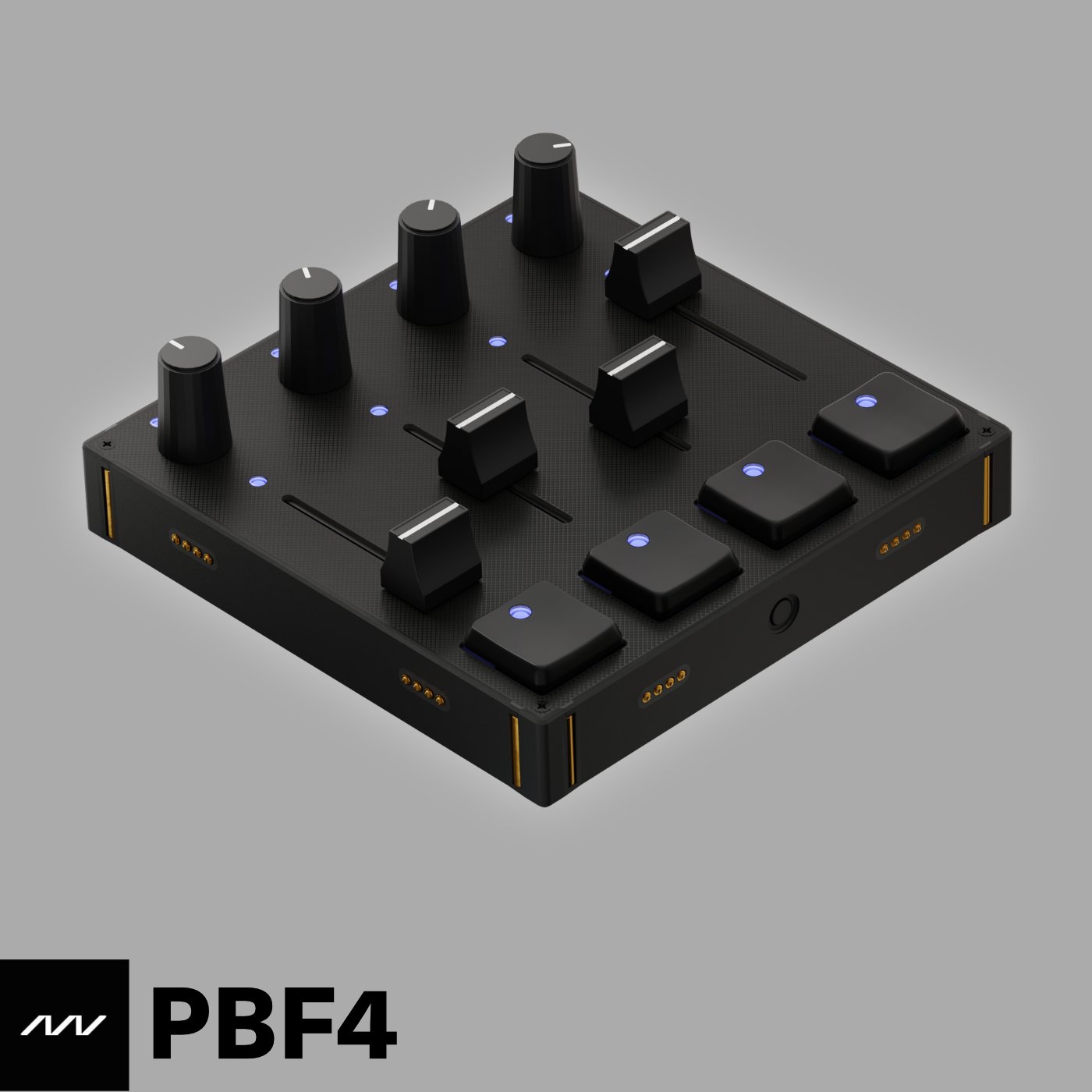

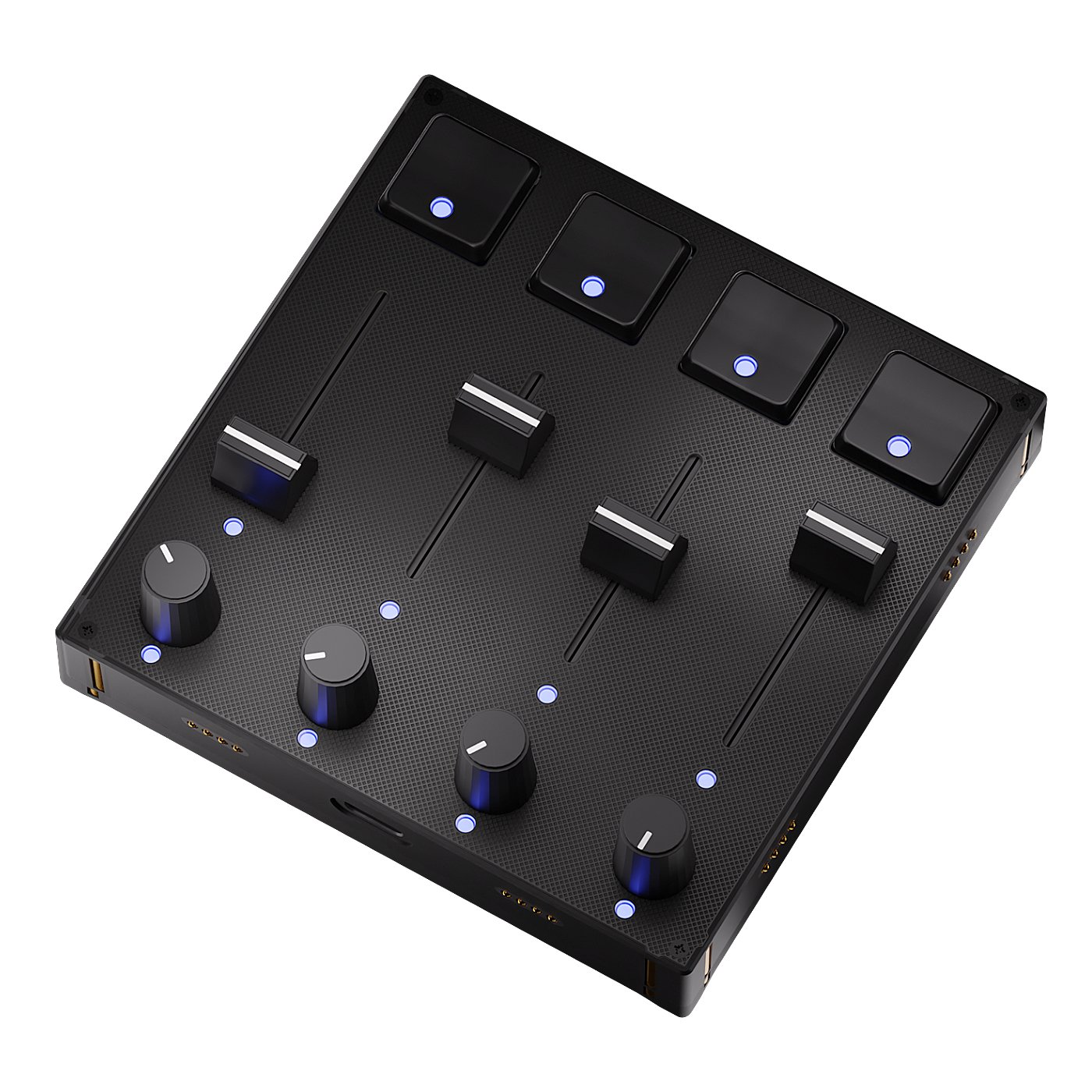

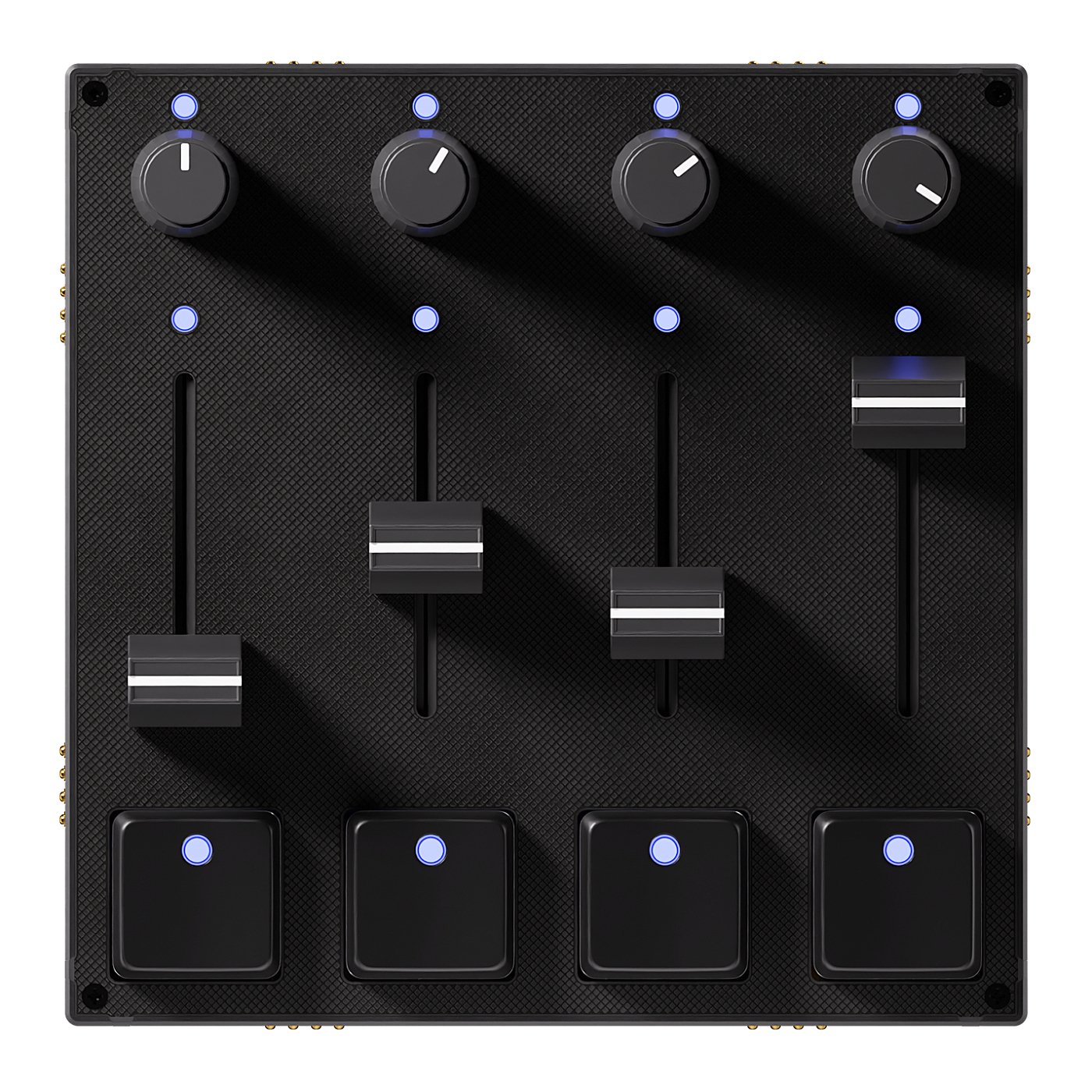

The PBF4 USB-MDI controller features 4 x metal shaft faders with medium resistance, 4 x single-turn smooth-turning metal shaft knobs and 4 x Gateron hall effect key switches. From subtle adjustments to expressive performances, this is a versatile combination of control elements for many use cases.
Control your most used parameters, like expression, modulation and volume. PBF4 is equipped with customisable multicoloured LED lights to enable labelling in dark environments. Facilitate differentiating each knob by changing the colour of each indicator LED, adjusting brightness levels individually or adding pulsing animations. All configurable in the Grid Editor.
As with all Grid modules, PBF4 features magnetic side connections and golden pins, allowing it to be flexibly expanded and seamlessly paired with other Grid controllers.
In-depth configurability
The Grid Editor enables a highly-customizable controlling solution through in-depth programmability in LUA code.
Multi-platform support
Compatible with Mac OS, Windows, Linux operating systems and mobile platforms. Grid supports USB native control options like MIDI, HID keyboard, mouse and game control.
DIY Kit warranty terms
Intech Studio provides 1 year warranty for the parts shipped in this DIY Kit.
All parts are tested for functionality before shipping.
Specs

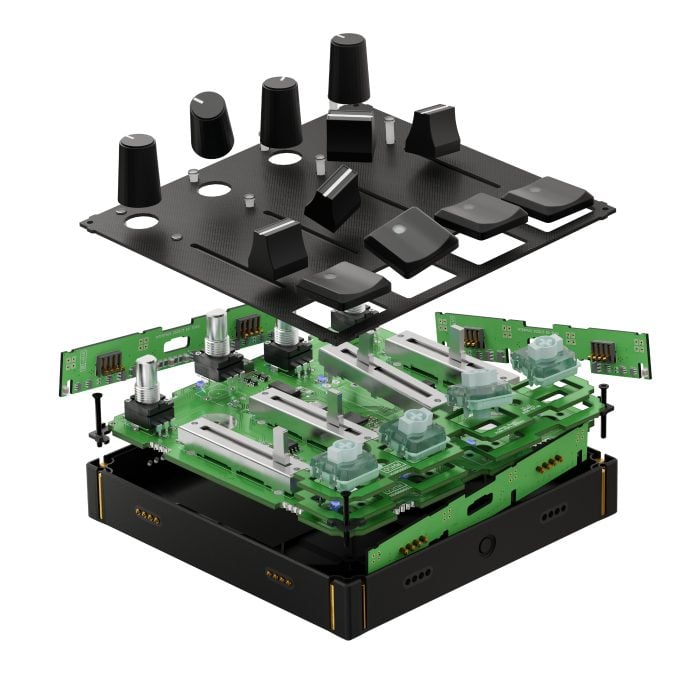

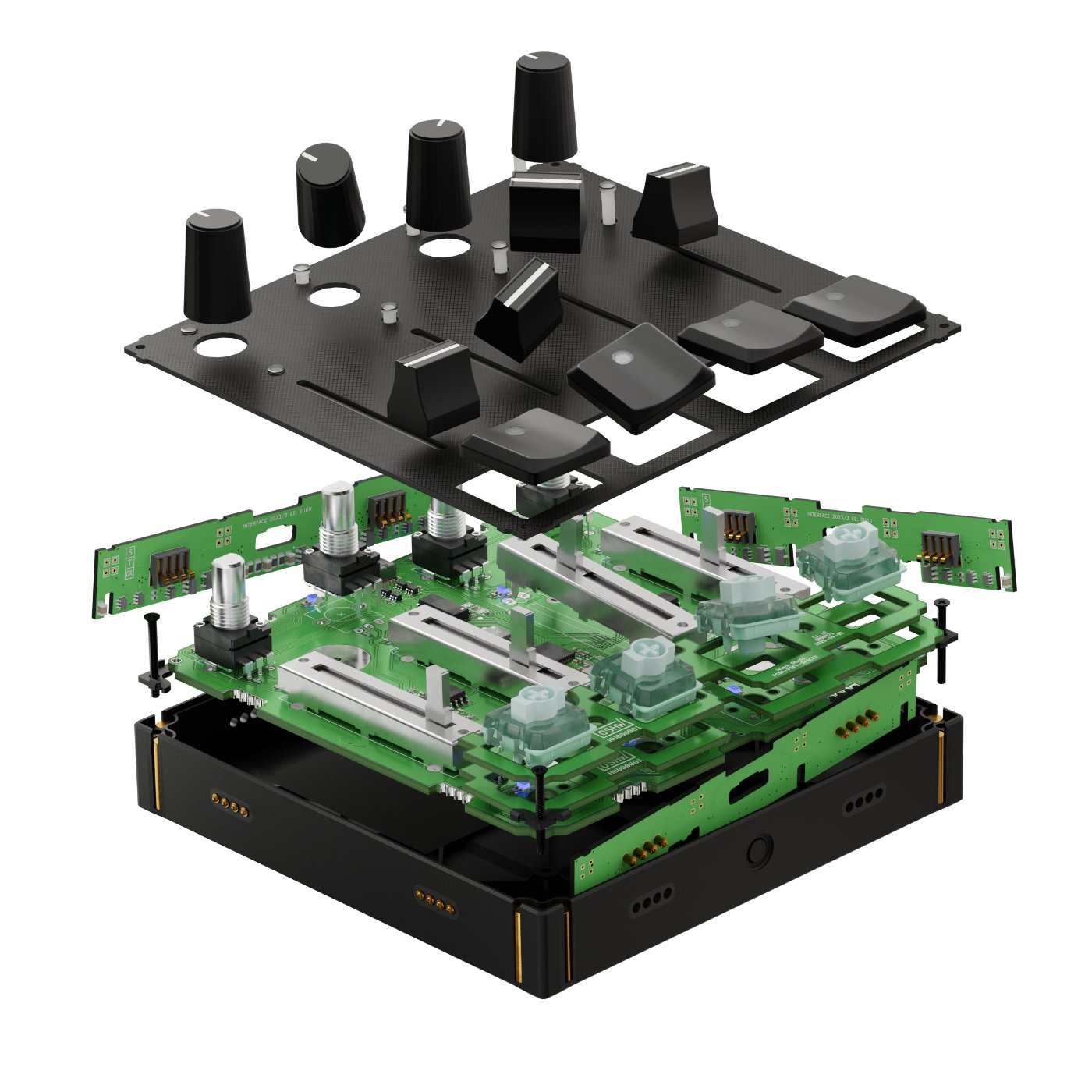

- Easy mechanical build – no soldering required
- High-quality, single turn potentiometers
- Audio-grade, linear metal shaft faders (30mm long)
- Gateron Hall effect key switches with MX-style shaft
- Innovative magnetic interface for modular connection in any direction with other Grid controllers
- High speed USB-C connection
- 250mA power draw
- RGB LED indicator for each control element
- Utility side button for page changes
- Robust build with injection moulded base and sturdy front panel
