Description

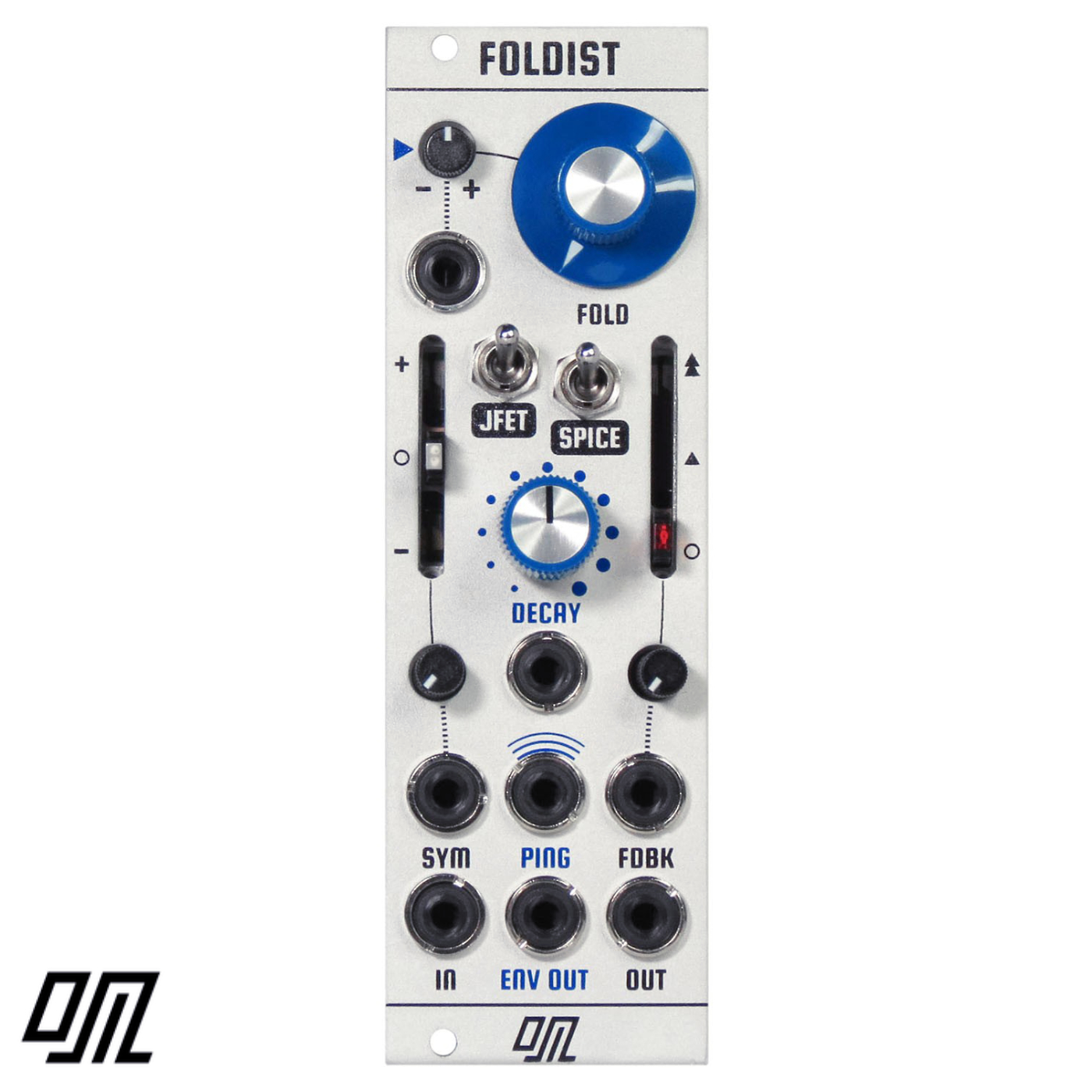

FOLDIST is a wavefolder with an integrated VC decay envelope generator and a spicy feedback circuit.
The switchable JFET input stage overdrives and shapes the input before the wavefolder, allowing for pulse / square wave folding (!). SYM adds an offset into the mix, allowing from clean and even folding to asymmetric and dirty, while FDBK cranks up the chaos by feeding the output back into itself.
The SPICE switch routes the feedback through a full-wave rectifier, making everything rougher and less predictable. PING turns almost any signal into a suitable trigger for the envelope generator, normalled to the FOLD CV input. Thereโs also an ENV OUT if you want to use it elsewhere. This module is all about pushing harmonics into weird places. Whether you want subtle folds or unstable feedback and audio / CV destruction, FOLDIST delivers.
FOLDIST – Build Document | User Manual | Modular Grid
Features:
- Serge-type wavefolder
- Bipolar SYM slider with CV input and attenuator
- FDBK slider with CV input and attenuator
- Switchable JFET input stage distorts the incoming signal, even allowing wavefolding of square waves
- SPICE routesย the feedback through a full-wave rectifier for a more untamed sound
- VC decay envelope generator, normalled to the FOLD CVย input
- The PING inputย converts almost any signal into a suitable trigger for the internal EG
- ENV output
Specs:
- Width: 8 HP
- Depth: 25 mm
- power Draw: +12V: 55mA, -12V: 55mA
- Fully DC-coupled, except when JFET is engaged
- All CV inputs allow audio-rate modulation
- Input impedance: 100 kฮฉ
- Output impedance: 510ย ฮฉ
- Reverseย power polarity protectionย
- 2 mmย anodized aluminium panel
