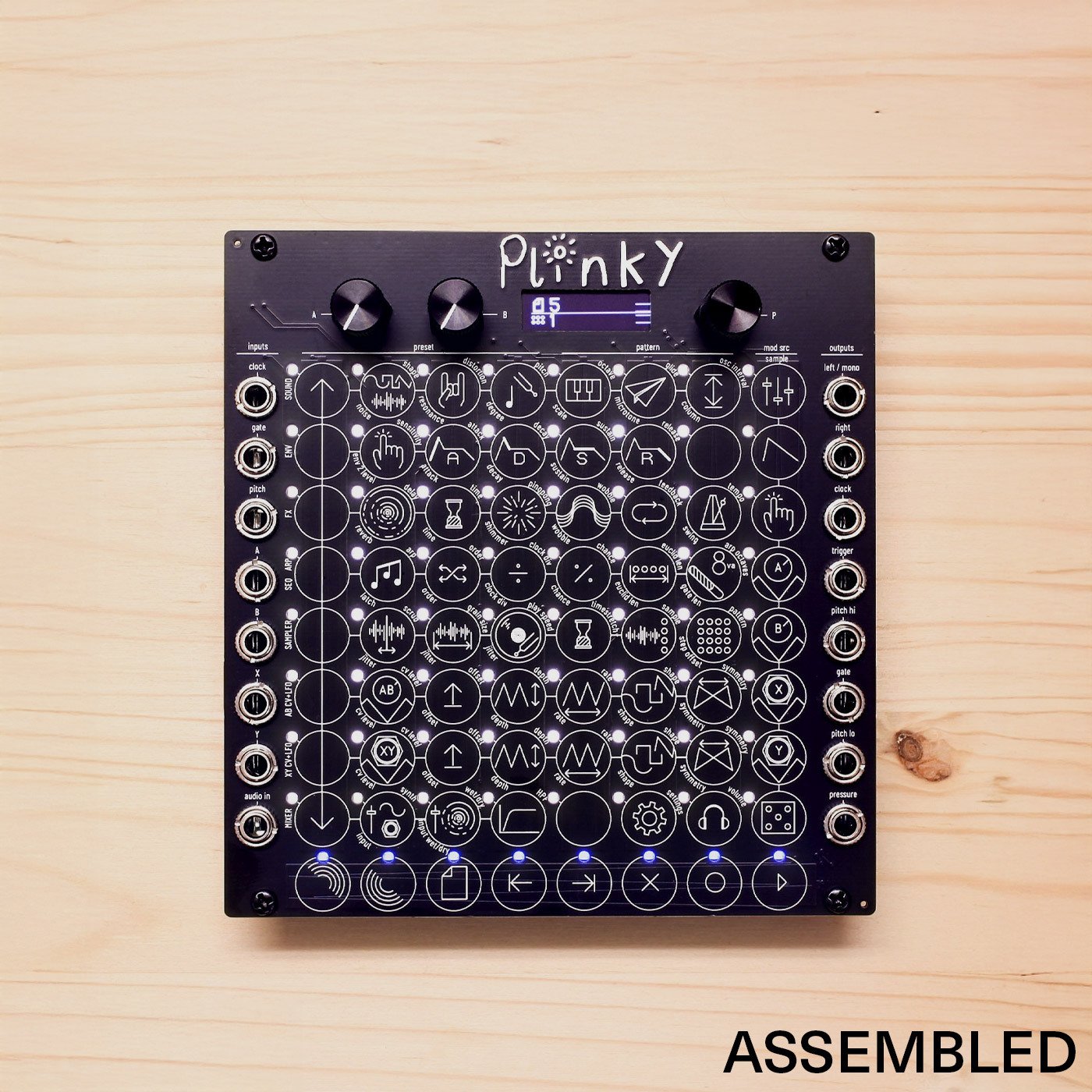

Plinky Synth – Assembled Synthesizer

£299.00 (Excl. VAT)

The brand new 2024 version of Plinky, an expressive polyphonic touch synthesizer.

WHILE STOCKS LAST – Papernoise design made a special edition back panel illustration for Plinky that comes with every new kit. Papernoise designed the Mutable Instrument, Hexinverter Edition Noire, Chrono Blob & Rabid Elephant panels. Free sticker too!

NOT A DIY PRODUCT – READY BUILT AND TESTED BY MAKING SOUND MACHINES



In stock

Description



Plinky is an 8 voice expressive polyphonic touch synthesizer that specializes in fragile, melancholic sounds, designed by mmalex. Think of it as an 8 stringed instrument, arranged in 8 vertical monophonic strips. You can play Plinky straight away with those 64 main pads. Plinky can be used either as a standalone desktop instrument or can be mounted inside a Eurorack case as a 24HP module.

Each of the 8 strings has:

  • 4 oscillators or sampler grains, detuned by the movements of your fingers
  • A white noise generator
  • Two ADSR envelopes
  • A resonant 2-pole low-pass gate
  • Distortion

Plinky also has global delay, reverb, high pass filter and saturation units along with a simple mixer, arpeggiator, sequencer and sampler. The row of 8 shift keys (blue LEDs) along the bottom are used in conjunction with the main pads to select parameters, presets, sequencer patterns, and samples. Plinky also supports 4 external CV modulation sources, each with their own LFO. This assembled version comes with “Meska” presets pre-installed.

Plinky was designed and released in 2021, but was then forced out of production due to the global chip crisis. In cooperation with Plinky’s creator mmalex, in 2024 Thonk and Making Sound Machines are bringing back the new and improved Plinky v3.

Plinky v3 integrates a TRS MIDI input and output directly on-board, so it’s now possible to sequence polyphonic chords externally and expressively play a melodic line on top. The USB connections have been updated to USB-C and the v3 circuit also improves the noise level on the inputs.

Best of all, Plinky is now open-source, with improvements and contributions from the Plinky community and PCB contributions from Making Sound Machines, TiNRS, Okyeron and LPZW.

You can power Plinky by either connecting it to your Eurorack power (it requires a 5V connection) or USB (although it is best not to power through both at the same time). For connecting USB you can use either one of the connectors on the front or the back (but again, don’t use both at the same time!).

Plinky Standalone Dimensions: Width 12cm, Length 13cm, Height 2cm

Plinky Rev3 – Play Guide | User Manual

Additional information

Weight 0.359 kg
HP Size
