Description

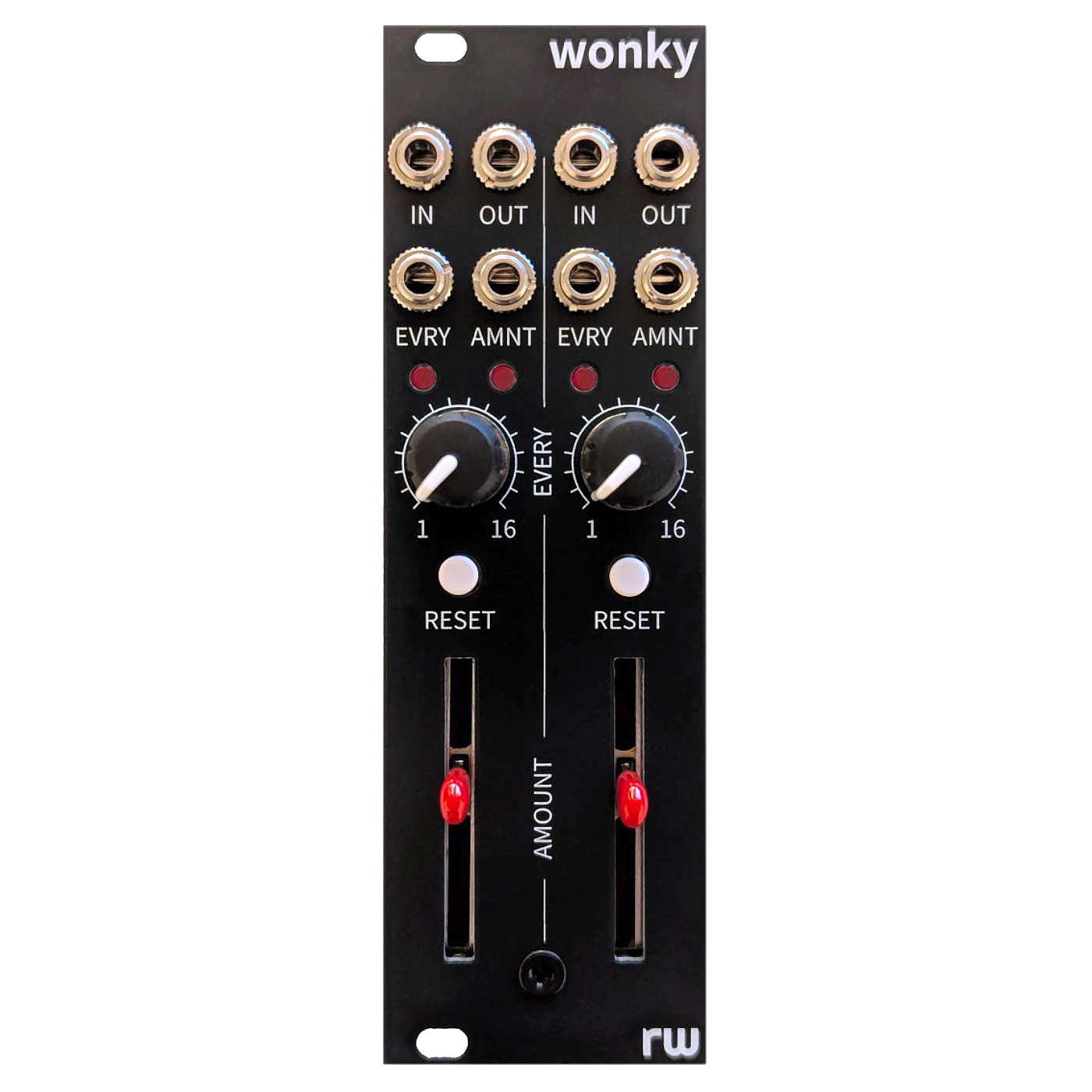

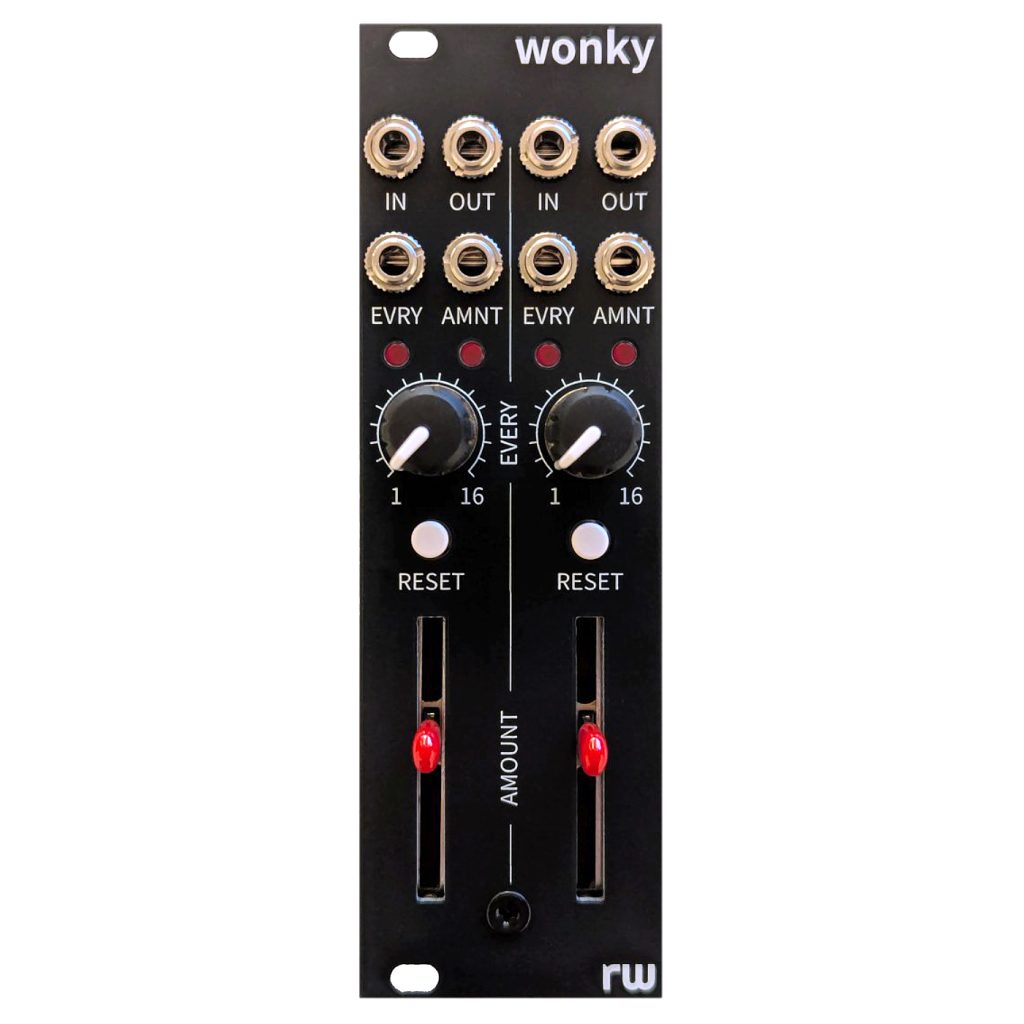

Wonky is a two channel rhythm generator for eurorack.
Feed the module a clock and you’ll get a trigger out for each input but on the selected clock division the clock signal is modified in one of three ways:
- Delay – delay the output by up to a whole beat
- Ratchet – create up to 8 triggers evenly spaced over one beat
- Probability – set the chance of the trigger being output or not
Tap the reset button to set the next input to beat 1 or hold the reset button to enter mode select and choose between the three available modes.
Use the two channels to generate two individual rhythms, combine then with a mixer or logic module to generate complex rhythms or send the output of one channel into the input of the others to get extra wonky!
CV inputs (+/-5V) are added to the knob positions to provide external control.
WONKY – Build Document | Quick Start Guide
All SMD comes pre-soldered! Only thru-hole parts to solder
Specs:
- Width: 8HP
- Depth: 25mm
- Power: 12v 55mA, -12v 5mA, 5v 0mA
