Reverse Landfill – Scaler – Full DIY Kit

£95.50 (Excl. VAT)

Quad voltage scaler for video

In stock

SKU: Kit_Reverse_Landfill_Scaler Categories: , , , , Brand: HP Size: 4 HP

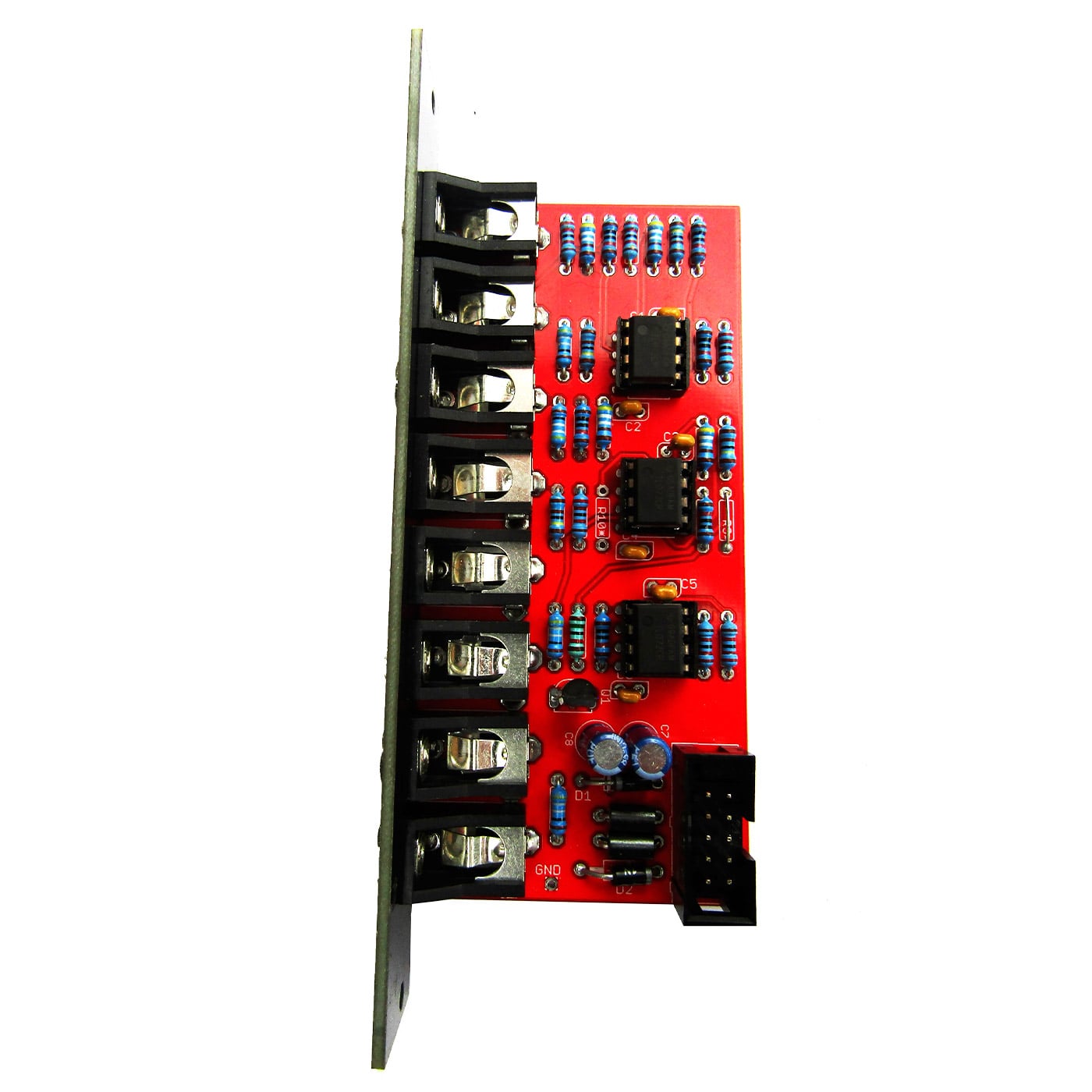

The Scaler from Reverse Landfill is a 4HP quad voltage scaler designed for use with video modular systems. The input jacks on Scaler are normalised for easy patching, and there are four different build options that are possible with the parts included in the kit.

The four build configurations are:

A) +1v to +5v
B) +1v to +-5v
C) +-5v to +1v
D) +-5v to +-1v

Option A: is for use with modules that have a positive only input (0 to +5v)

If you want to use audio modules as video effects, you can use 2 x Scaler modules: Option B to boost the video voltage up to audio level, and Option C to scale it back down again.

Option C: use this to control your video modules with (audio Eurorack) LFOs , VCOs and other modules that have a +-5v output.

Option D: some video modules can handle +-1v modulation

Scaler – Build Document


  • Width: 4HP


Additional information

HP Size
