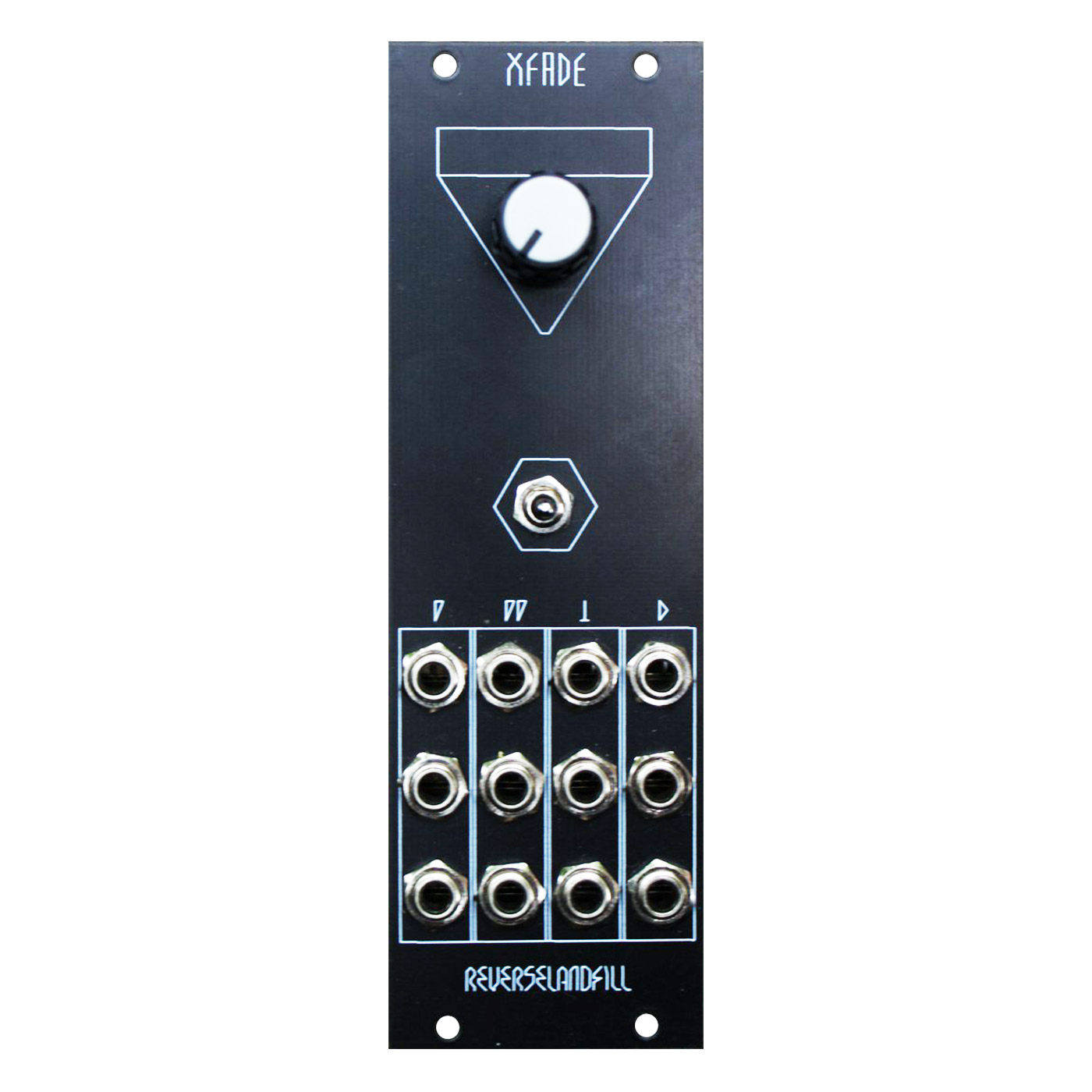

Reverse Landfill – XFADE – Full DIY Kit

£87.50 (Excl. VAT)

Video RGB Crossfade module

Out of stock

You must register to use the waitlist feature. Please login or create an account
SKU: Kit_Rev_Landfill_XFade Categories: , , , , Brand: HP Size: 8 HP

Description

XFADE is an RGB Crossfade module with interesting routings

This module features three crossfade VCAs that can be controlled by one source to achieve RGB fades and wipes. The VCAs can also be controlled separately as three single crossfaders (fade between 2 sources) and as three single VCAs (fade between a source and no source, a black image)

The XFADE has 1 x crossfade knob, 1 x switch to change the normalisations, 2 sets of 3 input jacks, 3x CV jacks and 3x output jacks. This way you can crossfade between two sets of full RGB signals with one knob or one CV source.

The second setting let you use the knob for crossfading separate channels while controlling one or more channels with CV sources, while the final setting disables the knob (extra feature thanks to the 3way switch)

The CV voltage range can be set from 0-1 volts up to 0-5 volts with a trimpot on the back of the module.

Build difficulty level: medium hard : vertical resistors and all parts are close together to make it fit on one PCB.

Features:

  • 2x 3 channel inputs
  • 3x CV inputs
  • 3x output jacks
  • 1x routing switch
  • 1x crossfade potmeter
  • 1x CV voltage range trimpot

Specs:

  • Power Consumption: +12v : 30mA, -12v : 30mA
  • Suitable for HD: yes
  • Reverse polarity protection
  • 8HP panel, grey / black knobs
  • Depth: 23mm
  • Signals: Video & CV

XFADE – Build Document
