THAT 2180 Series – IC Chips

£4.50£8.50

EU Price does not include EU VAT

Clear
SKU: EComp_Chip_THAT_2180_Series Categories: ,

Description

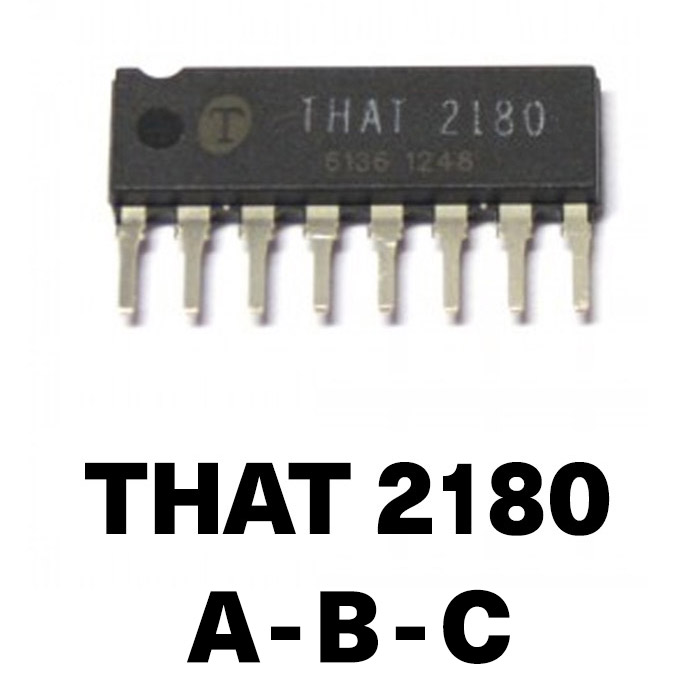

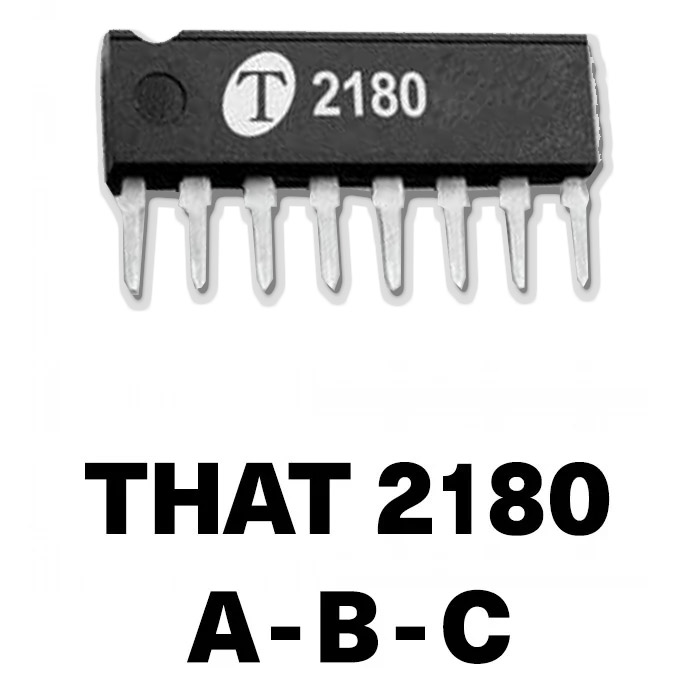

THAT 2180 Series integrated-circuit voltage controlled amplifiers (VCAs) are very high performance current-in/current-out devices with two opposing-polarity, voltage-sensitive control ports. They offer wide-range exponential control of gain and attenuation with low signal distortion. The parts are trimmed at wafer stage for low THD and control-voltage feedthrough without further adjustment.

The VCA design takes advantage of a fully complementary dielectric isolation process which offers closely matched NPN/PNP pairs, to deliver discrete performance at IC prices. The 2180 Series is available in an 8-pin single-in-line (SIP) package.

THAT 2180 Datasheets

Key Specifications

Parameter

Conditions

2180A
Typical
2180B
Typical
2180C
Typical

Units

Dynamic Range
120
dB
Gain Range
< -100 to > +40
dB
Total Harmonic Distortion
1V 0dB gain
0.005
0.01
0.03
%
Control Constant (both positive & negative-sense control available
± 6.1
mV/dB
Supply Current

2.4
mA
Power Supply Voltage
± 4 ~ ± 18
V
Output Noise
0 dB gain
-98
dBV

Additional information

Weight N/A
Audio Grade

2180C – High Grade, 2180B – Super High Grade, 2180A – Pointlessly Audiophile Grade
