Description

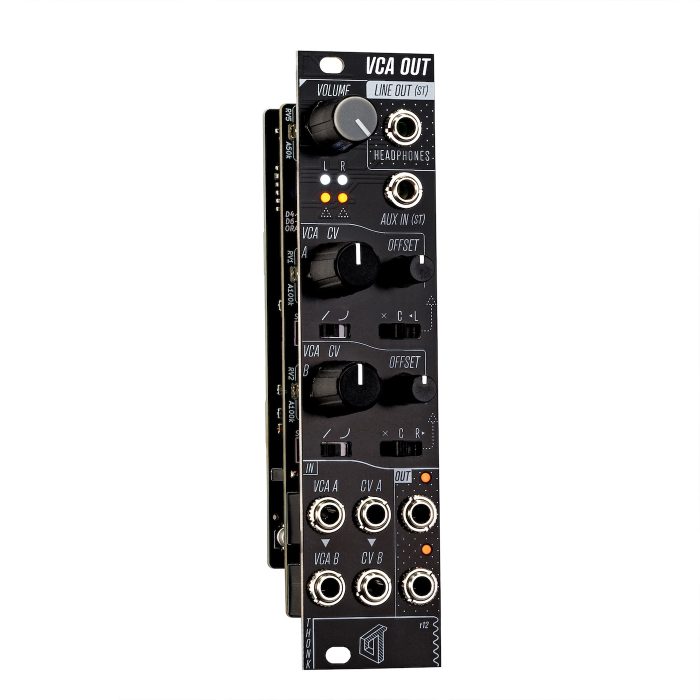

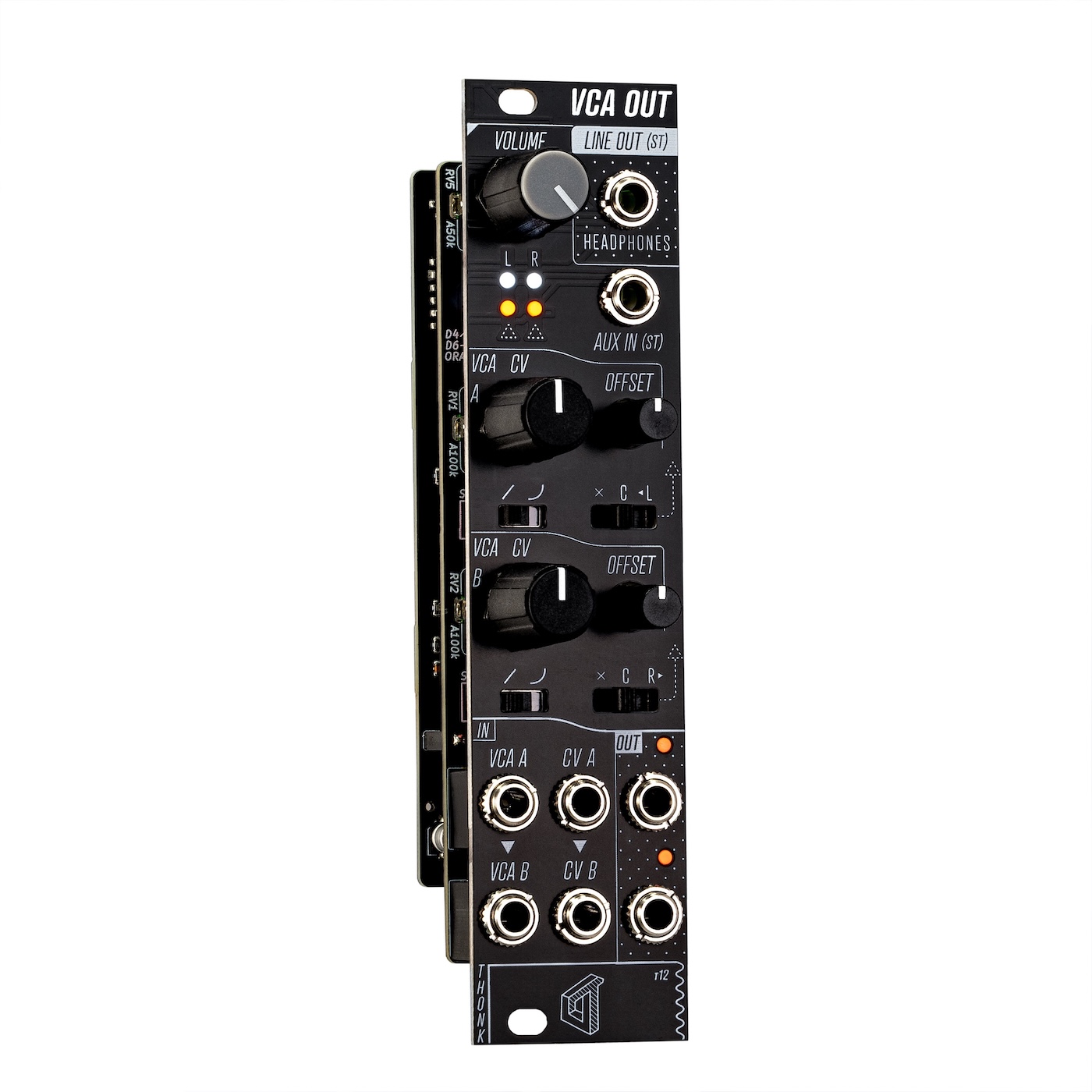

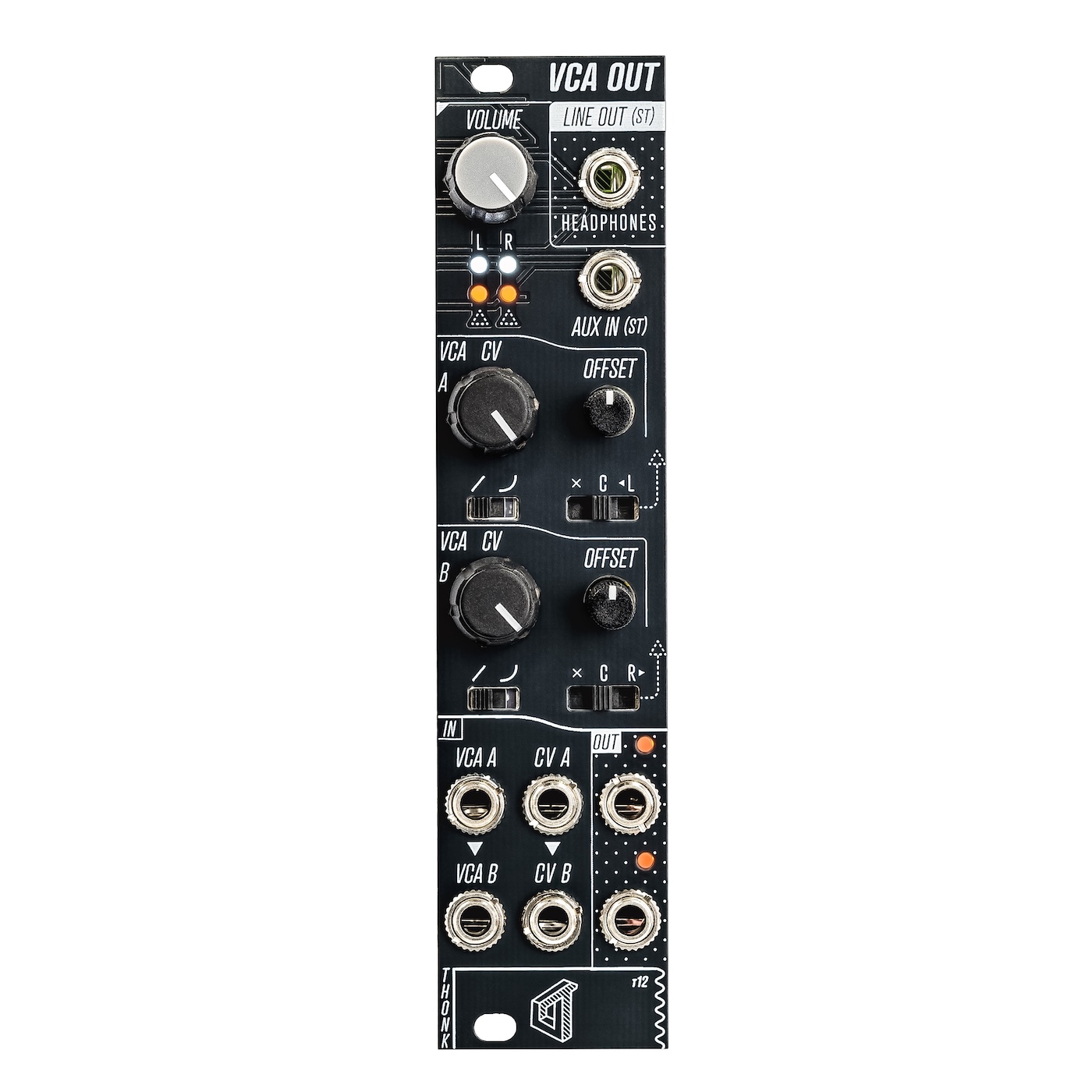

VCA OUT is designed to be the final stage in a modular system, providing the essential tools for finishing a patch. With control over dynamics, mixing and stereo placement, plus an integrated headphone / line output, for easily monitoring or recording patches directly from the rack.
Each VCA channel has its own mono output at eurorack level, but can also be routed to the headphone/line output in either dual mono or stereo configuration with the option to mute each channel as well.
VCA OUT features the same high quality circuitry as the T03 DUAL VCA, including linear/exponential CV responses and useful normalisation features. A stereo aux line-level input allows for sub-mixing an external source into the output mix.
Features
- 2 x VCA channels using the SSI2164 chip
- 2 x mono Euorack level output
- Headphone/Line level output with volume control
- Line level stereo auxiliary input
- Linear / Exponential VCA mode switch
- 0-5V bias/offset control per channel
- Designed in-house at Thonk
Specs:
- Width: 6HP
- Depth: 38mm (inc power connector)
- +12V 32mA, -12V 32mA
t12 VCA OUT – Build Document | User Manual

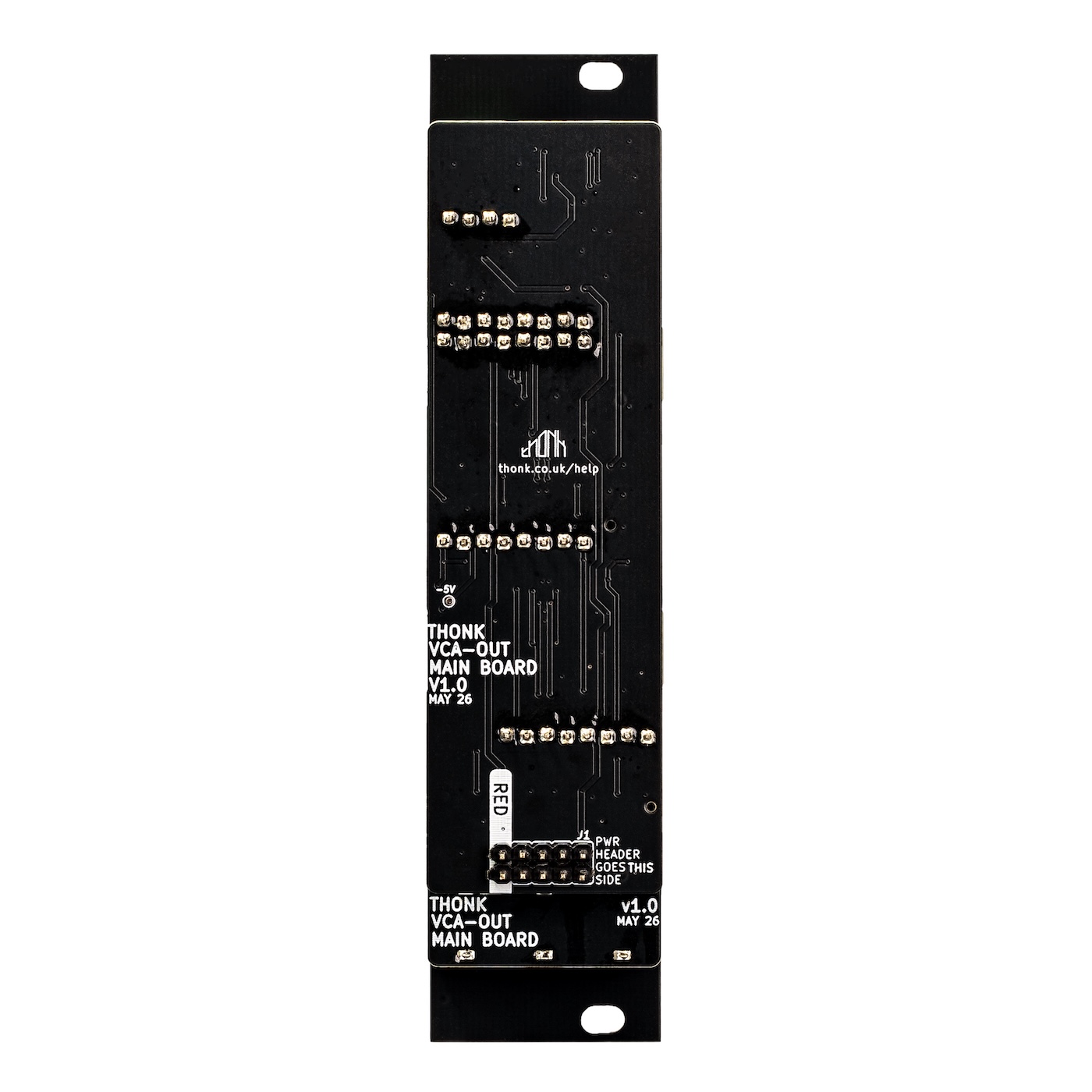

All SMD parts come pre-soldered
