Description

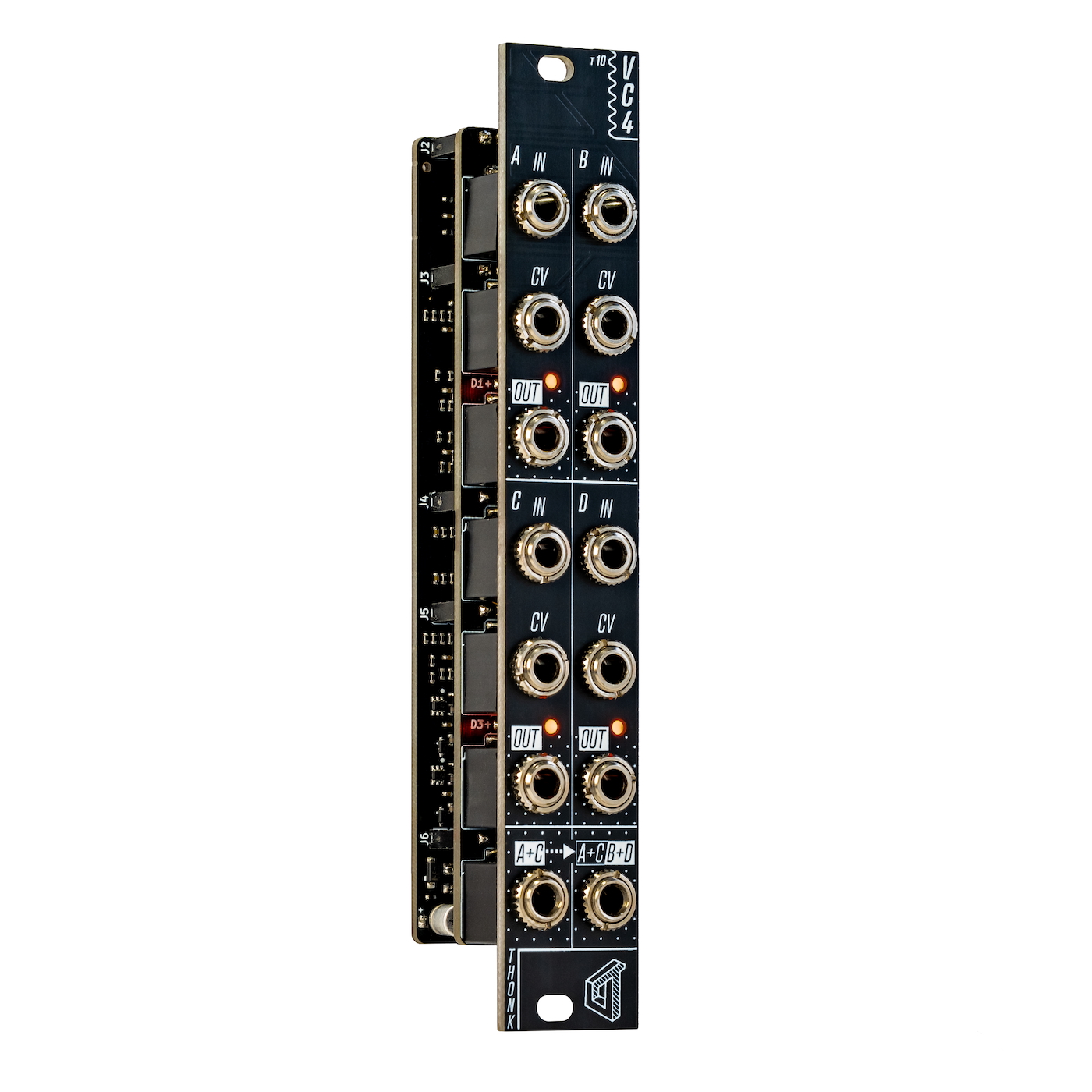

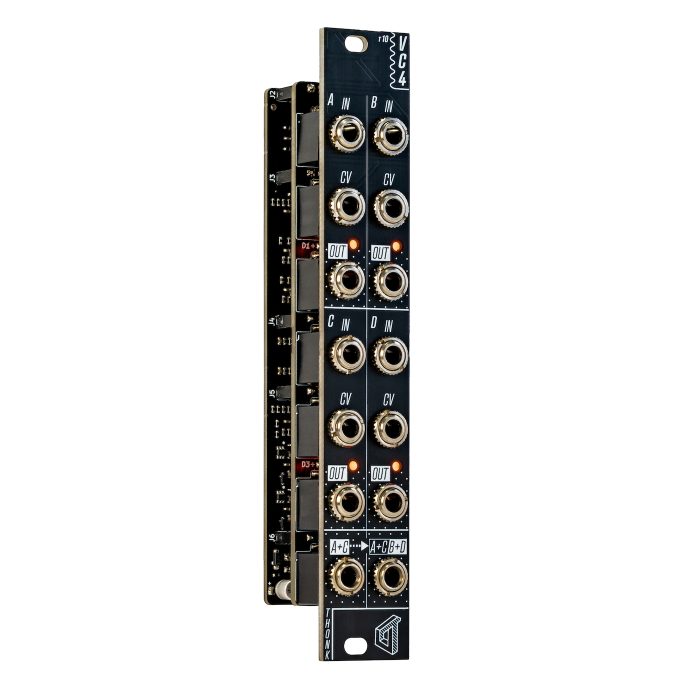

The t10 VC4 from Thonk Synth is a 4HP Eurorack quad voltage controlled amplifier module. The module features four identical linear, DC coupled high-quality VCA channels, labelled A, B, C & D.

In addition to the 4 individual VCA outputs, there are two MIX outputs at the bottom of the module – these combine VCA channels A+C and B+D respectively. When the A+C output is left unpatched then all four VCA outputs will be mixed into the B+D output, with the A+C signals inverted.

Features

• 4 x high quality, DC coupled linear VCAs
• 2 x additional mix outputs
• Designed in-house at Thonk

Specs:

• Width: 4HP
• Depth: 38mm (including power connector)
• Power: +12V 34mA, -12V 34mA

t03 VCA – Build Document | User Manual

All SMD parts pre-soldered, only thru-hole part to solder
