Description

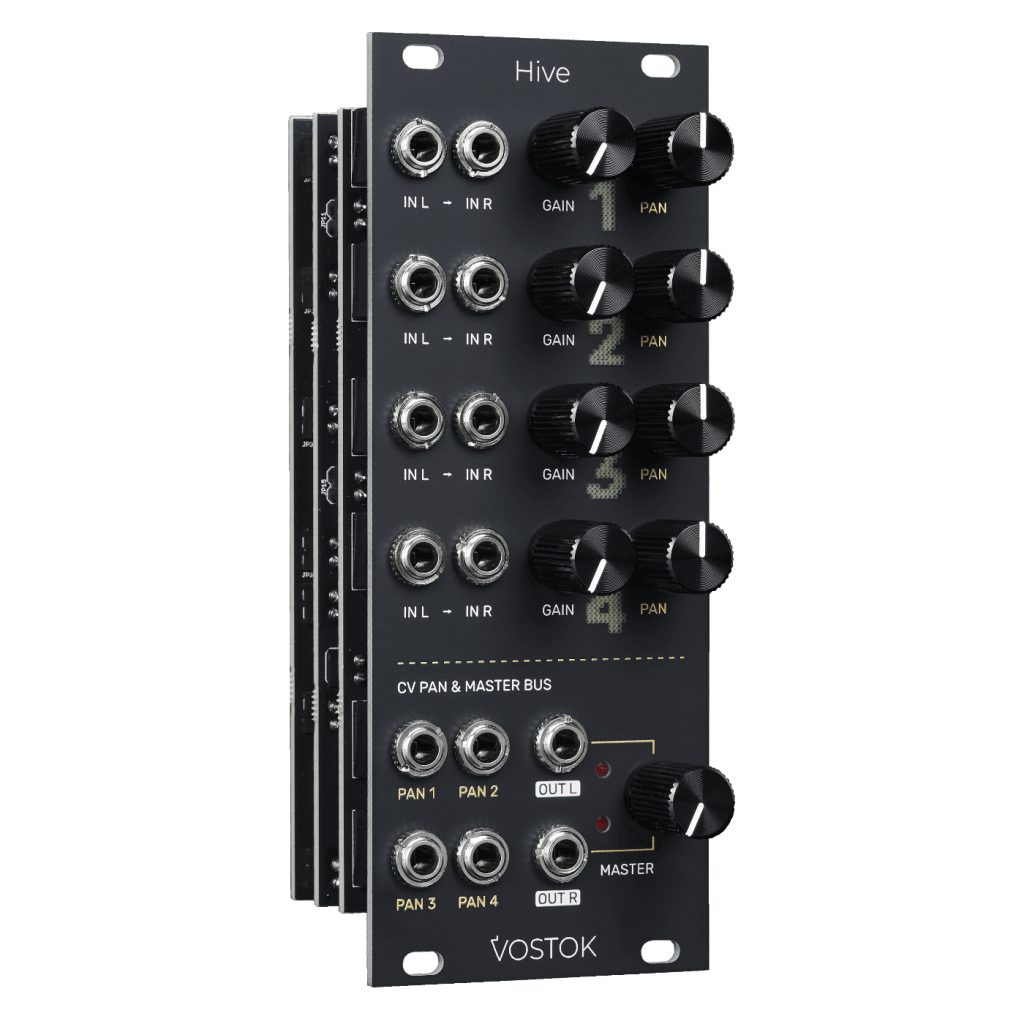

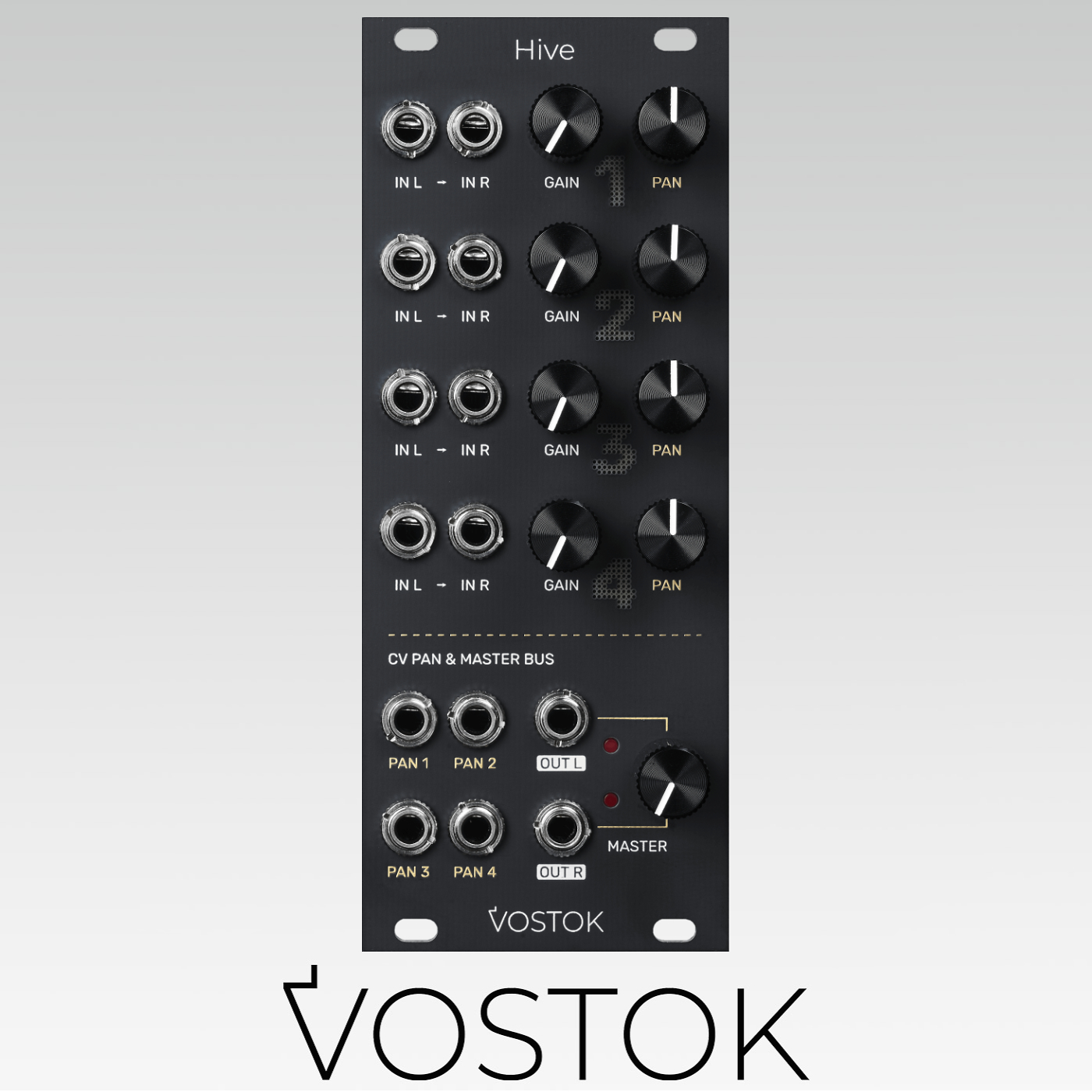

At its core, Hive is a four-channel stereo mixer with CV-controlled panning per channel, but like any other Vostok module, Hive comes with several quirks that make it a handy module for every system.
Each channel can boost incoming signals to perfectly match the level of your different modules, as well as bring pro-line level devices, such as desktop synthesizers or drum machines, into your rack.
The panning works with a custom panning-law slope of -1.5dB attenuation at the center position, ensuring smooth balance transitions either manually or with CV.
Several modules can be chained together using the dedicated connectors located at the back, allowing the use of other Hive modules as channel expansions or submixes.
Hive packs a bunch of useful features into a compact 10HP layout, making it a perfect stereo mangler, FX sub-mix system, end-of-the-line mixer, and much more.
Features:
- Four stereo/mono channels
- Manual and CV-controlled Pan per channel
- +9dB Gain boost per channel
- AC-Coupled audio path with Polypropylene capacitors
- Several units can be chained using the rear chain ports to create an expandable sub-mix system
Specs:
- Width: 10HP
- Current draw: +/-12V: 120mA, +5V: 0mA
- Depth: 35mm (including power cable)
- Input Impedance: 51kΩ (Audio Inputs), 100kΩ (CV Inputs)
- Output Impedance: 510Ω
- Pan CV Input Range: 5Vp-p
- Pan Law: -1.5dB at center position
- AC-Coupling Filter Cutoff Frequency: 10Hz
Hive – Build Document | User Manual
