Description

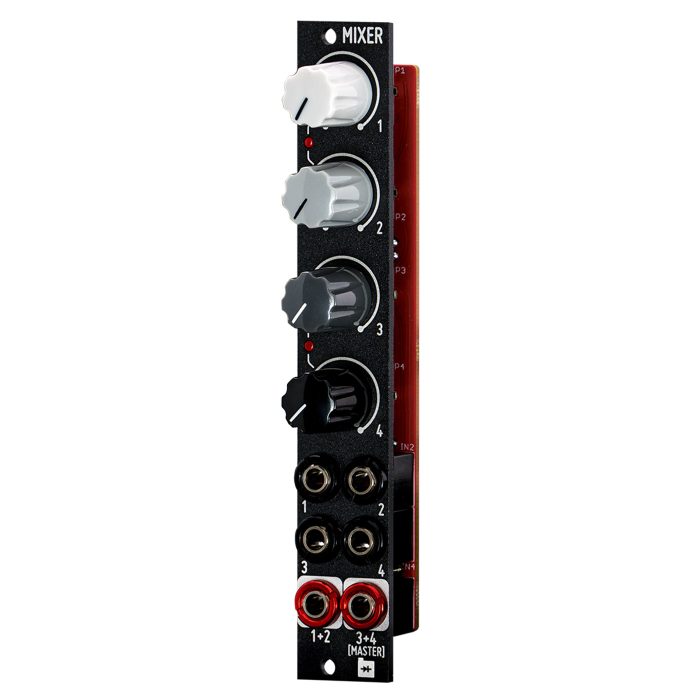

Combine up to four audio and or CV sources into one output, with independent manual level control. It can be used as a four-channel mixer or as two separate two-channel mixers, depending on the connection.

If a cable is connected to the Master output but not to the 1+2 output, all channels will be summed at the Master output. If both the Master and 1+2 outputs are connected, the Master will output the mix of channels 3 and 4, while the 1+2 output will provide the mix of channels 1 and 2. Each pair of channels has an LED indicator that shows the presence of a signal.

Features:

• Dual Summing topology.
• DC Coupled.
• LED Signal Indicators.

Specs:

• Width: 4 HP
• Depth: 25 mm
• Power Consumption: +12V: 35mA, -12: 25mA,
• Designed, kits prepared and modules assembled in Barcelona.

Mixer – Build Document | User Manual
