Description

Kit level: Easy – Perfect beginners kit! Contains everything you need except tools, time and solder.

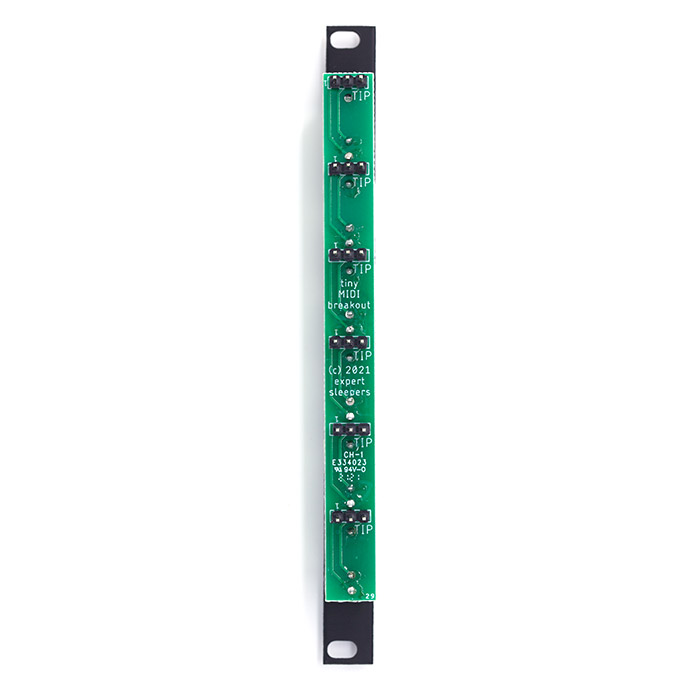

The Tiny MIDI breakout provides 3.5mm TRS MIDI connectors for compatible Expert Sleepers modules with breakout headers – the Disting mk4, Disting EX, ES-9, General CV, and FH-2. This expander can also be used with modules from other manufacturers e.g. the Michigan Synth Works F8R.

The six sockets can be shared amongst modules as needed. The module is entirely passive, and can be wired up for Type A or Type B 3.5mm MIDI. Connection details and example can be found HERE

Tiny MIDI Breakout  Build Document

Specifications

• Width: 2HP
• Depth: 30mm (including cables)
• Power consumption: Passive (module does not draw current)
