Description

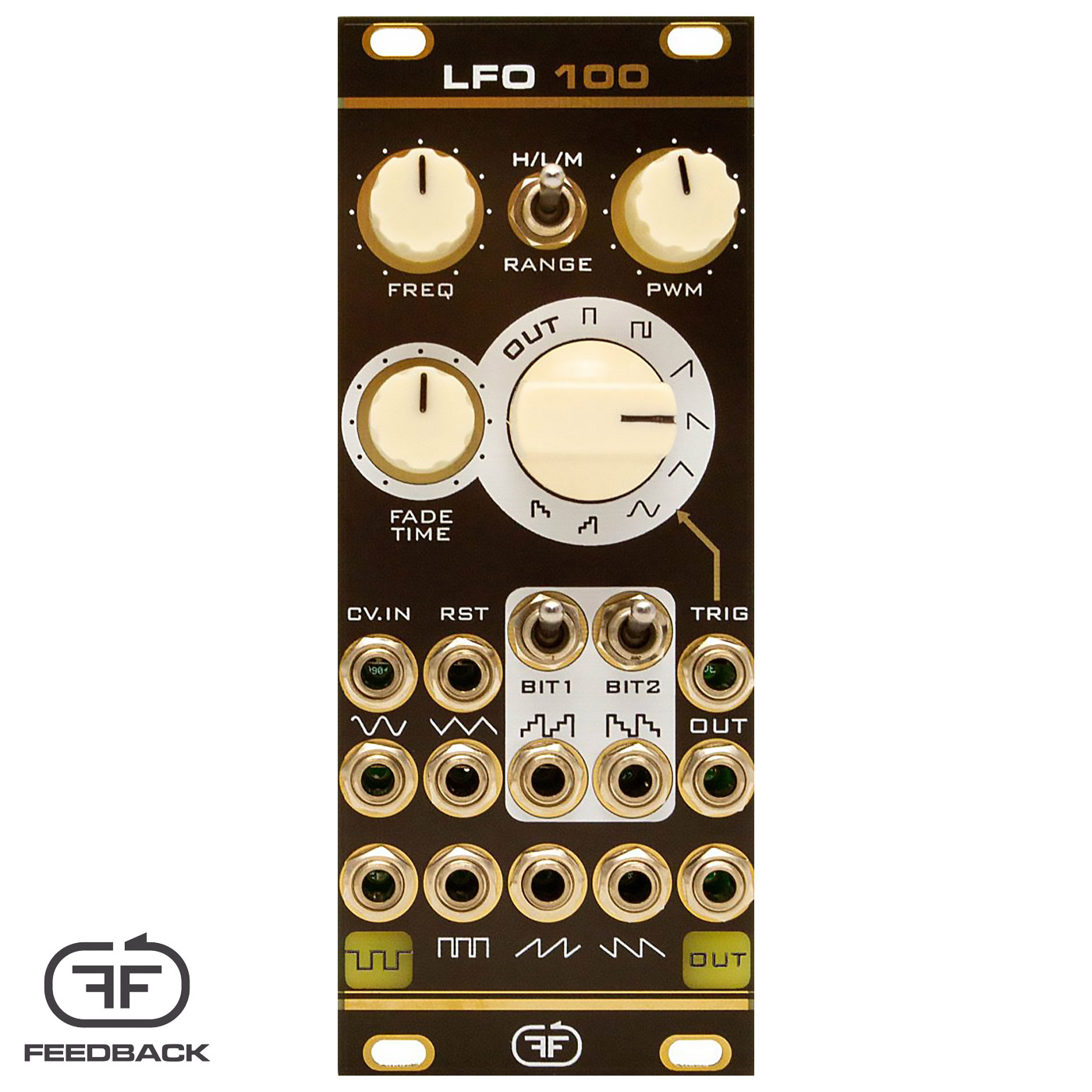

Feedback Modules LFO100 is an advanced vintage-inspired analog LFO with complex waveform creation. The module offers eight different waveforms with individual outputs, including classic shapes and more unusual ones. The latter includes stairs like waveforms with selectable 16 steps, 8 steps, 4 steps, or mangled form.

Additionally, there are two linked outputs for which you can select any of the waveforms using the big switch. An exciting addition to the alternative output is the built-in VCA, which allows for fading in the LFO signal in a defined duration with a dedicated fade time potentiometer, a feature that you rarely find on a budget LFO. Then, you get full control over the frequency of the LFO, the option to set the range (high, low, mid), and apply pulse-width modulation as well. Plus, it includes CV control input and a waveform reset socket.

Specs:

• Width: 10HP
• Depth: 35mm behind front panel including the power connector
• Power Consumption: +12V 30mA , -12V 10mA
• Frequency Range Switch:
  LOW   –  0.07Hz (14sec) – 1Hz
  MEDIUM  –  0.3Hz (3sec) – 4Hz
  HIGH  –  3Hz  – 33Hz

LFO100 – Build Document | User Manual
