Description
Grid System
Grid is a modular creative controller built for musicians, producers, video editors and all digital artists who demand more from their gear. Whether you’re in the studio or on the go, Grid gives you the tools to work the way you want.
Separate Grid modules connect magnetically and draw power from a single USB-C cable. Without the need for a hub, one cable enables control over your whole Grid setup, and supplies enough power for up to 8 modules connected together.
More than just a MIDI controller—Grid is a customizable control surface that adapts to any creative workflow. From tweaking synth parameters to launching clips or triggering automations, Grid is made to keep up with your creativity.
PO16 Controller

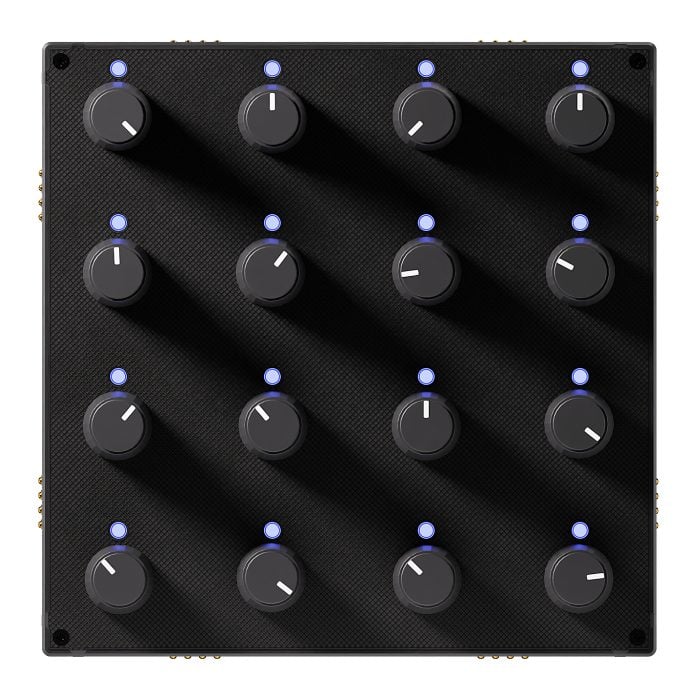

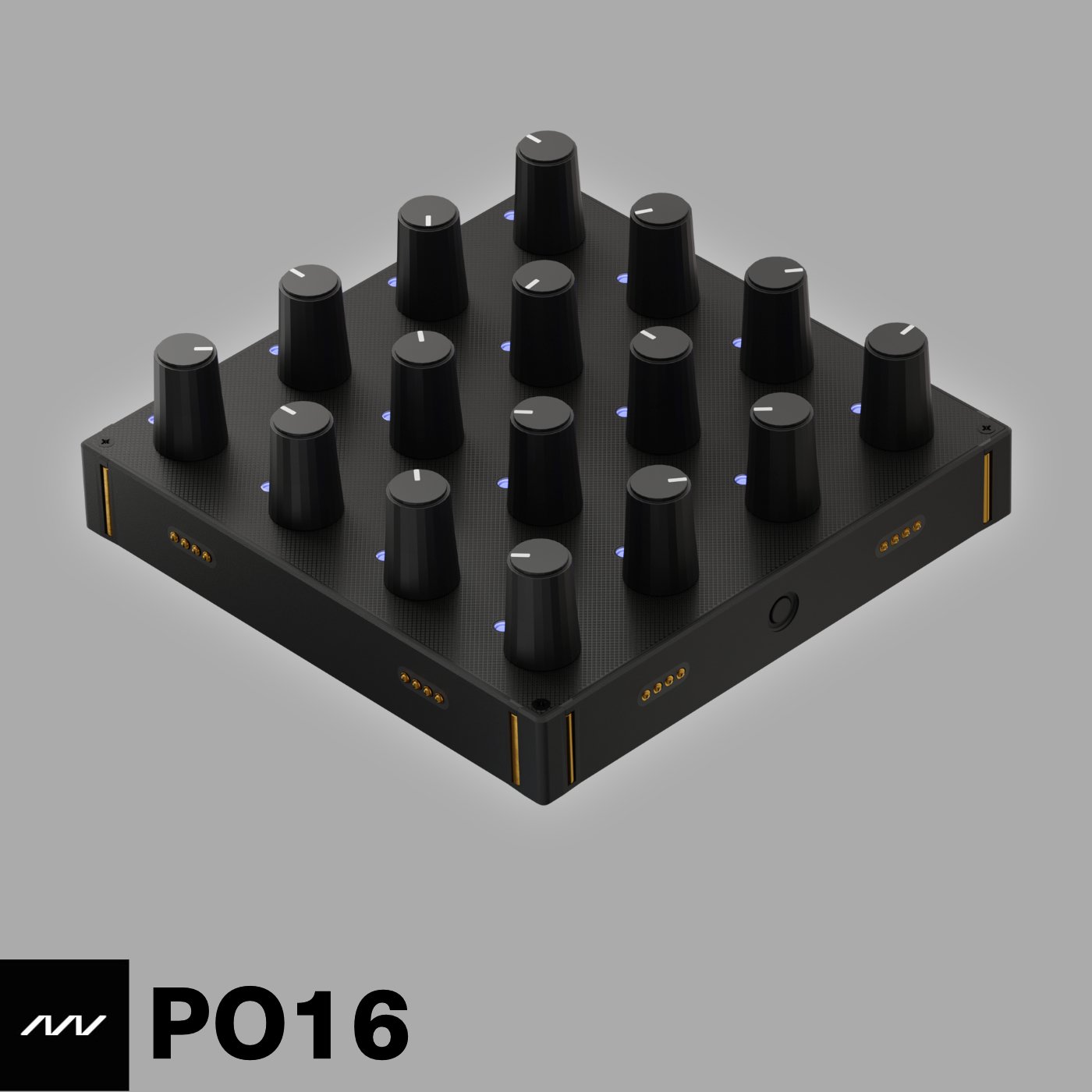

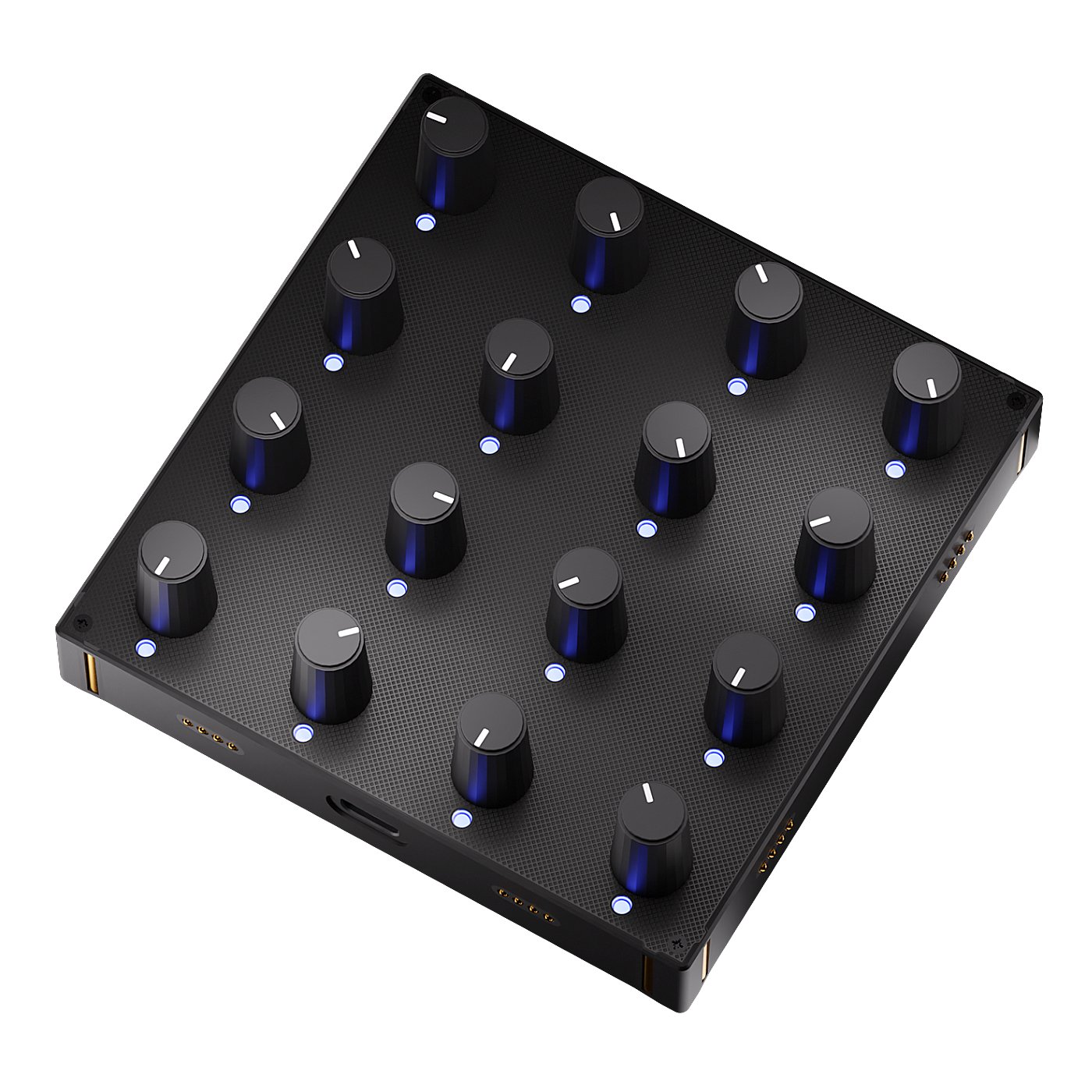

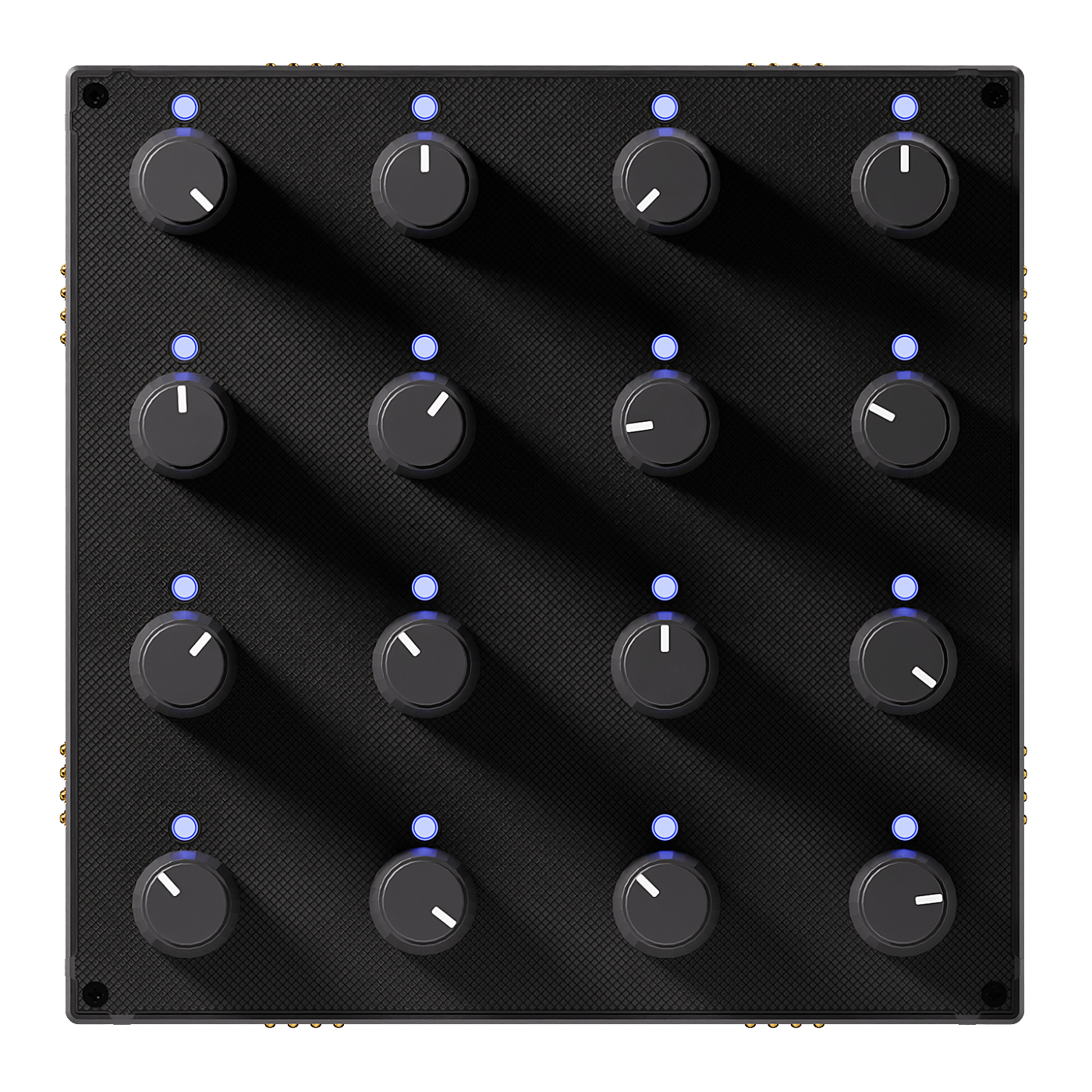

The PO16 is a sleek, compact, single-turn rotary potentiometer controller with metal shaft pots. Suitable for controlling quick motion changes like EQ, filters, or synth parameters, which are mapped out as one-knob-per-function. Equipped with customisable multi-colored LED lights to enable labelling in dark environments. Facilitate differentiating each control element by changing the color of each indicator LED, adjusting brightness levels individually or adding pulsing animations.
As with all Grid modules, PO16 features magnetic side connections and golden pins, allowing it to be flexibly expanded and seamlessly paired with other Grid controllers.
In-depth configurability
The Grid Editor enables a highly-customizable controlling solution through in-depth programmability in LUA code.
Multi-platform support
Compatible with Mac OS, Windows, Linux operating systems and mobile platforms. Grid supports USB native control options like MIDI, HID keyboard, mouse and game control.
DIY Kit warranty terms
Intech Studio provides 1 year warranty for the parts shipped in this DIY Kit.
All parts are tested for functionality before shipping.
Specs

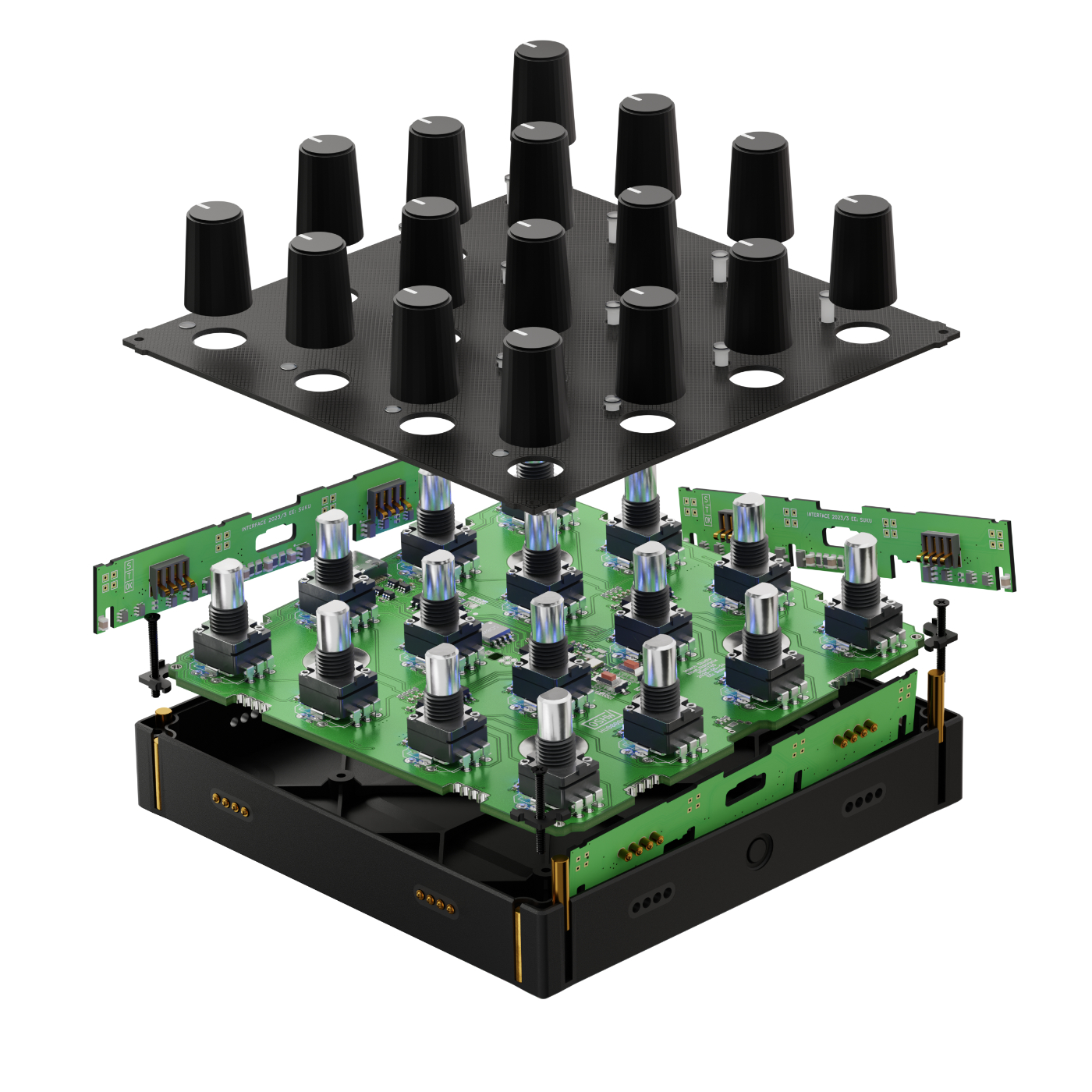

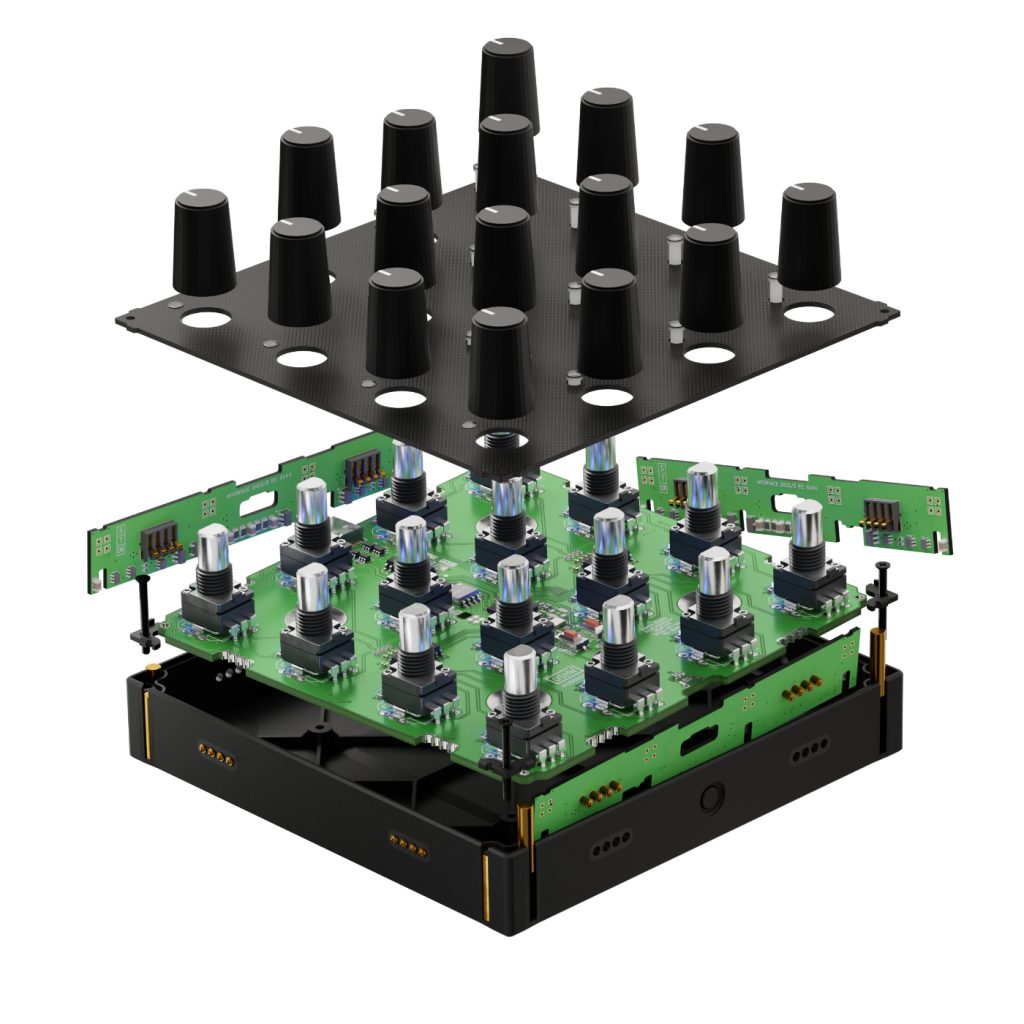

- Easy mechanical build – no soldering required
- High-quality, single turn potentiometers
- Innovative magnetic interface for modular connection in any direction with other Grid controllers
- High speed USB-C connection
- 250mA power draw
- RGB LED indicator for each control element
- Side button for page changes
- Robust build with injection moulded base and sturdy front panel
PO16 – Assembly Guide | Grid Editor Software
