Description

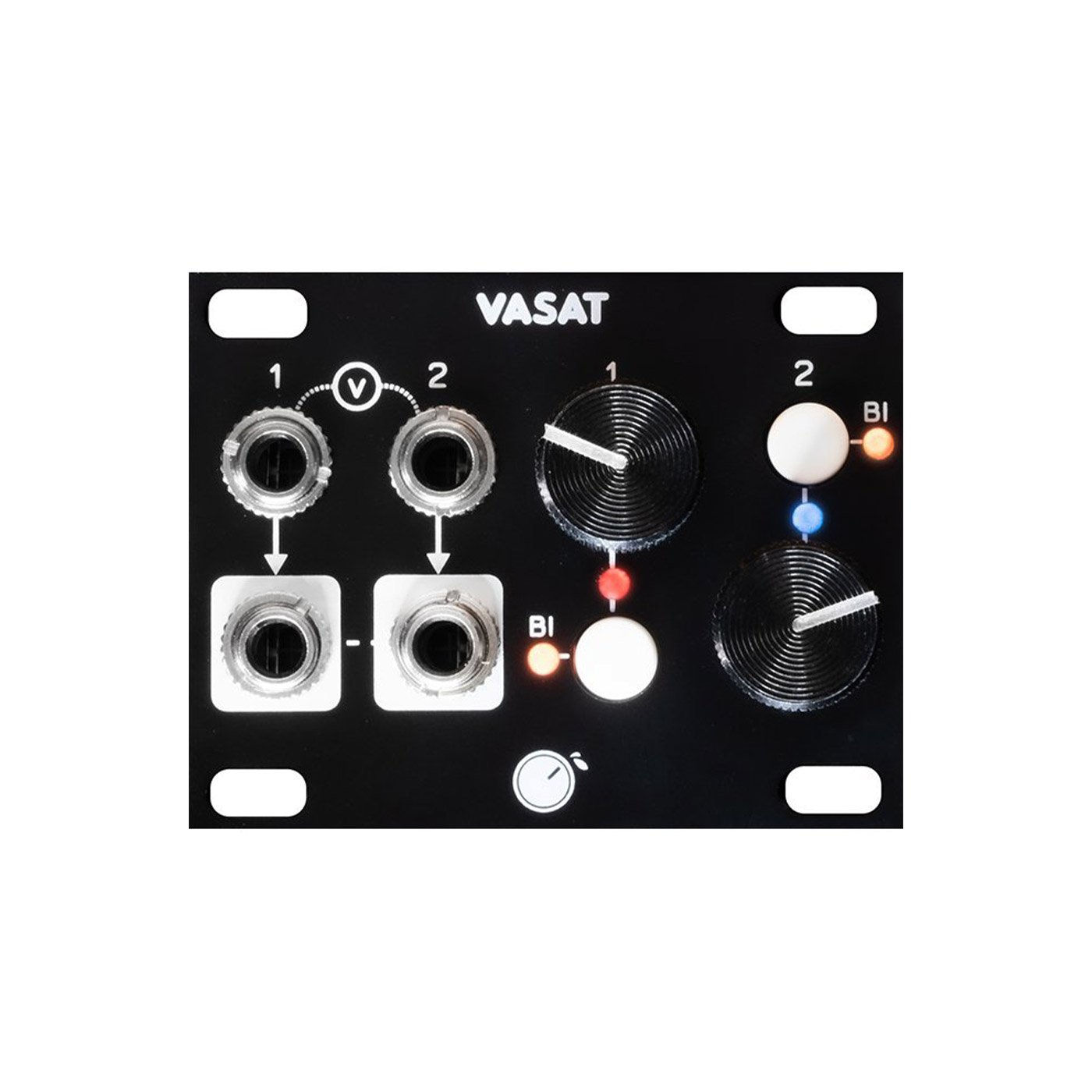

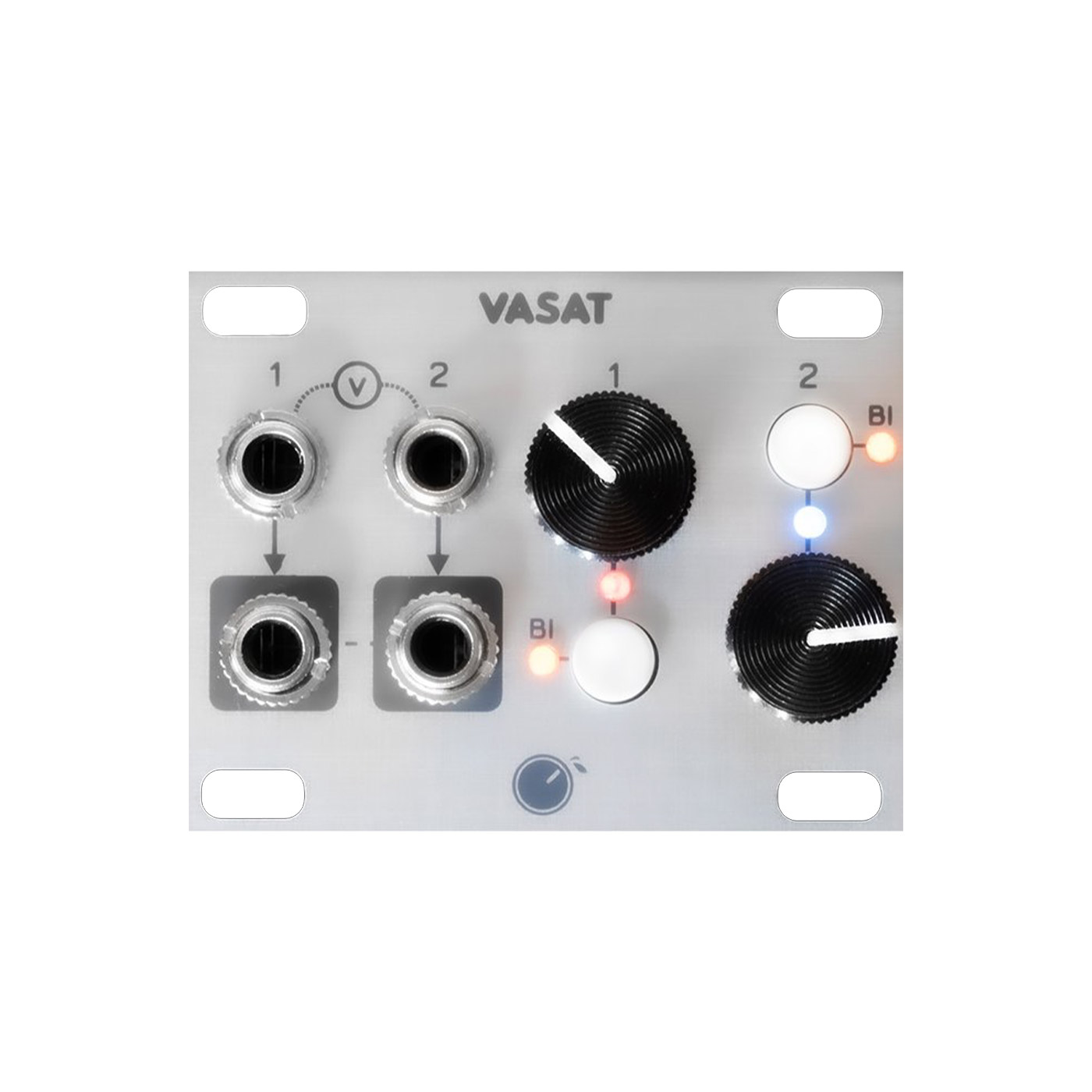

VASAT is a dual channel expandable Mixer / Attenuverter / Offset and precision voltage source with variable range.

Features:

• VASAT can process two channels of audio or CV.
• Polarity push buttons can configure knobs to work as attenuators or as attenuverters.
• Unconnected inputs are normalised to an internal precision voltage source which can produce either a +2.5V, +5V, +7.5V or +10V.
• VASAT outputs are limited to -/+ 10V to protect against clipping.
• VASAT outputs are daisy-chained allowing channels to be mixed.
• VASAT is expandable – Several units can be chained together to get a bigger mixer.

Specs:

• Intellijel format 1U tile
• Width: 10HP
• Depth: 20mm
• Power Consumption: 10 mA +12V, 10 mA -12V

VASAT – Build Document | User Manual
