Description
Welcome to the Envy Machine !
A compact quad-channel modulation machine, with an envious array of Envelopes, LFOs, random voltages even Knob Recording.
With four channels of modulation, ENVY MACHINE makes an ideal companion to the RYK ALGO module
Each of the four channels on the ENVY MACHINE can be set to one of five super-flexible modulation modes:
– ADSR Envelope
– AD Envelope
– AD LFO
– Random Voltage
– Recordable Knob Voltage Control
Ghost hand – Parameters can be animated using KNOB RECORDING to create timed variations in your patch.
Oh, and with the dedicated MOD input per channel, you can use an external CV to control anything – TIME, LEVEL, WAVESHAPE, colour of your hair etc . . .
Polarity paradox – Modulation inputs AND channel Outputs come with bipolar attenuverters, now you can choose either bipolar or unipolar, with continuously variable level control.
Slippery slopes – WAVESHAPES are continuously variable between LOG, EXPO, SIN, TRAPEZOID, and SQUARE !
Please note: this kit is recommended for experienced builders
To build the kit you MUST have the following:
-Two mini clamps
-Clean high quality 2/3mm tip solder iron [ chisel type recommended ]
-Mini Phillips screwdriver for M3 & M2 pan head screws
-Mini M2 hex head driver / allen key
-Electrical insulation tape
The PCB is double sided, and any mistakes soldering some parts might be very difficult to fix later on!

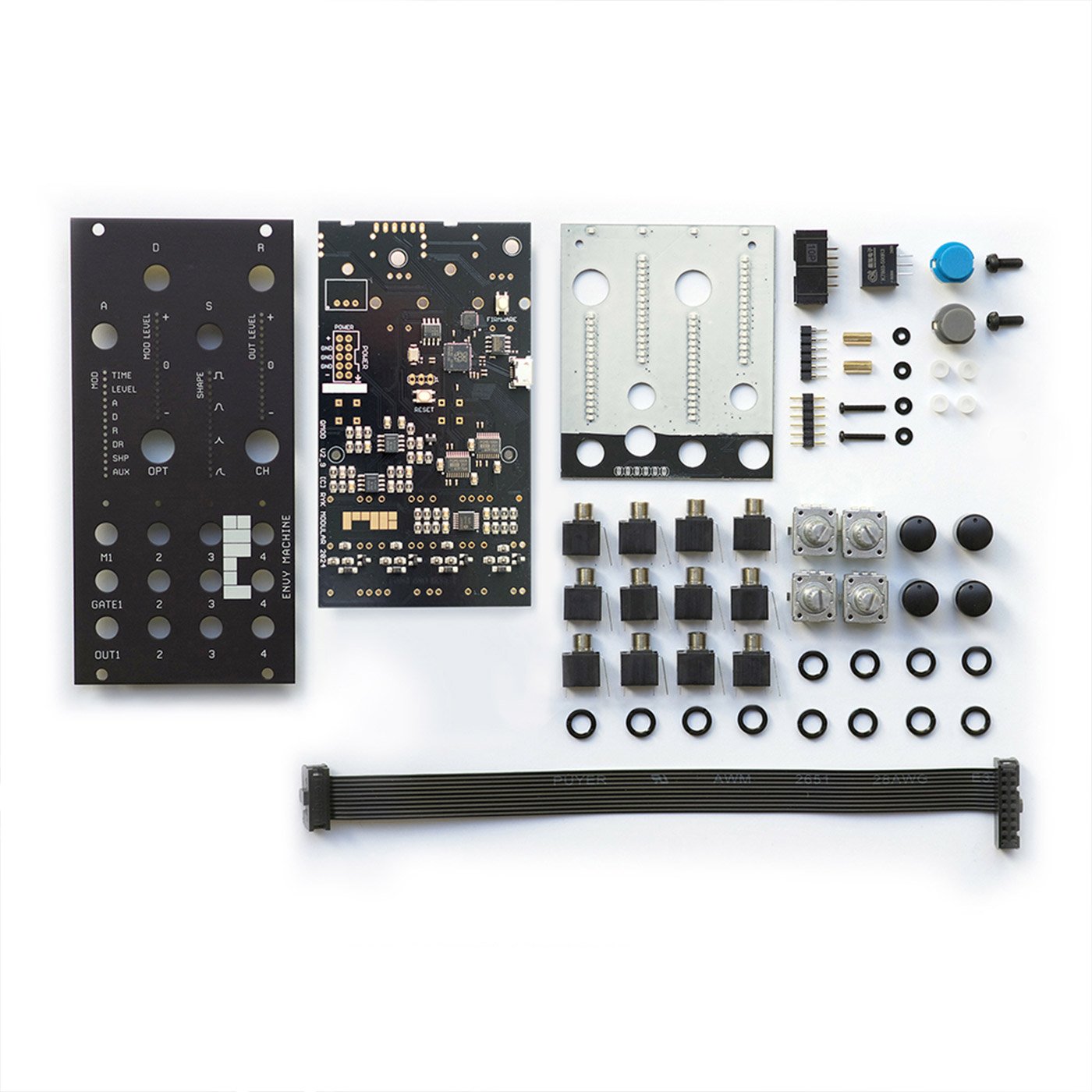

This is a complete kit for Eurorack, Including all parts:
1xPCB (All SMD parts come already pre-soldered), a high quality screen printed 2mm aluminium panel, encoders, knobs, switches, LED display PCB, jack sockets.
Includes USB data cable for firmware install, and sexy black Eurorack power cable.
Specs:
- TIME
Envelopes: 1.5ms – 4min
LFO: 88hz – 7min
Random: 2khz – 2min - OUTPUT VOLTAGE RANGE
Envelopes: 0/8V (inverted: 8V/0V)
LFO/Random: 0/8V (Unipolar) or -5V/+5V (Bipolar) - INPUT VOLTAGE RANGE
-5V/+5V - DIMENSIONS
12 HP wide
25 mm deep - POWER CONSUMPTION
-12V 5mA
+12 70mA
Envy Machine – Build Document | User Manual
