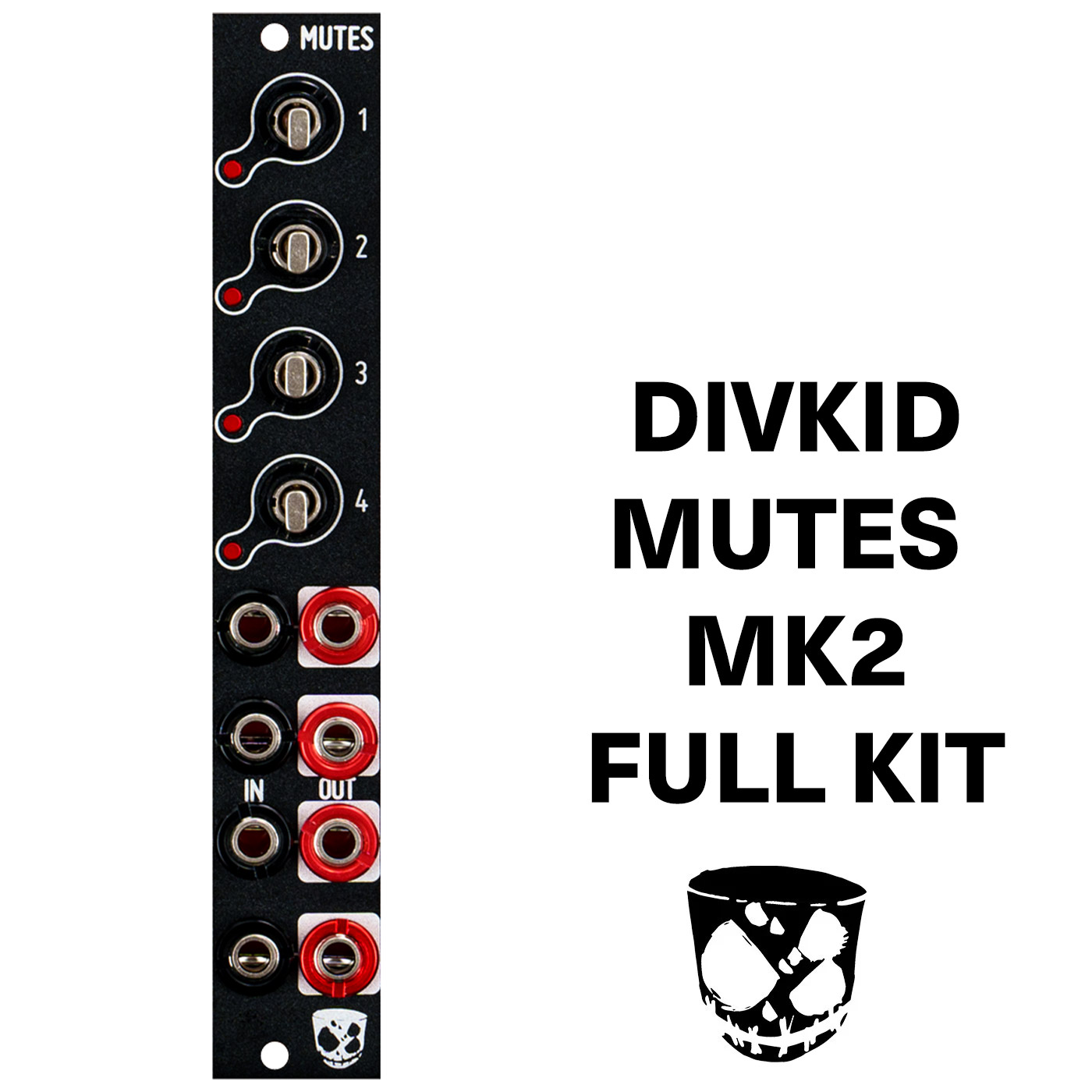

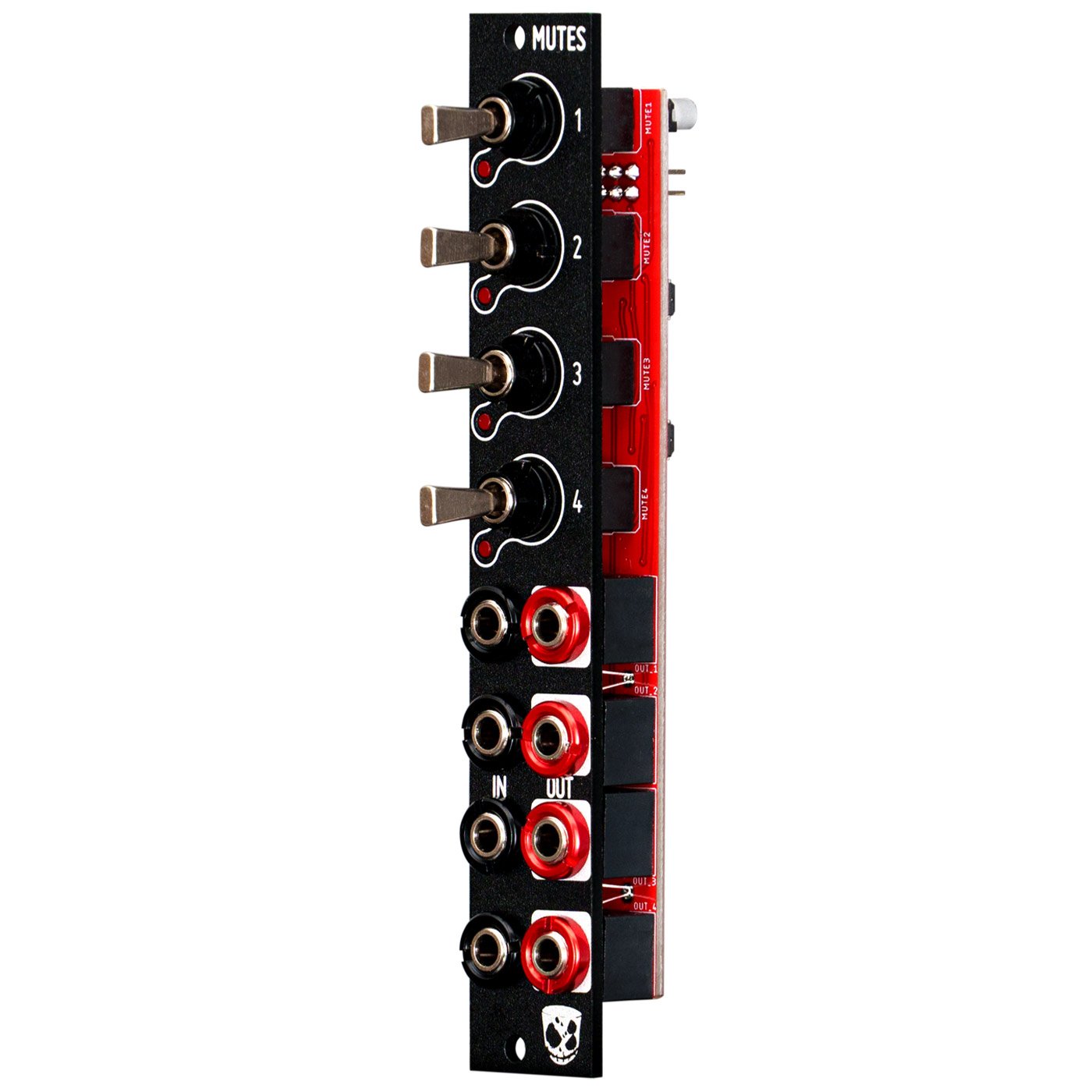

Divkid “Mutes” MK2 – Full DIY Kit

£72.00 (Excl. VAT)

Performance focused multi-channel mutes.

Includes 1U panel option

In stock

SKU: Kit_Divkid_Mutes_MK2 Categories: , , , , Brand: , HP Size: 4 HPHP Size: 24 HP

Description

Mutes from Divkid goes above and beyond basic muting by allowing you to split groups of signals to multiple destinations, making it great for FX dub performing and varied signal routing.

This new unit uses VCA based technology that offers improvements in noise floor / bleed and the signal integrity passing through the channels. It also retains the well loved response and feel of the original click-free muting and the performable 3 way: MOMENTARY – OFF – ON switches.

Three-position switch:
MOMENTARY signal pass-through (it springs back to the centre when released) ; OFF (or muted) in the centre ; and ON to the right.

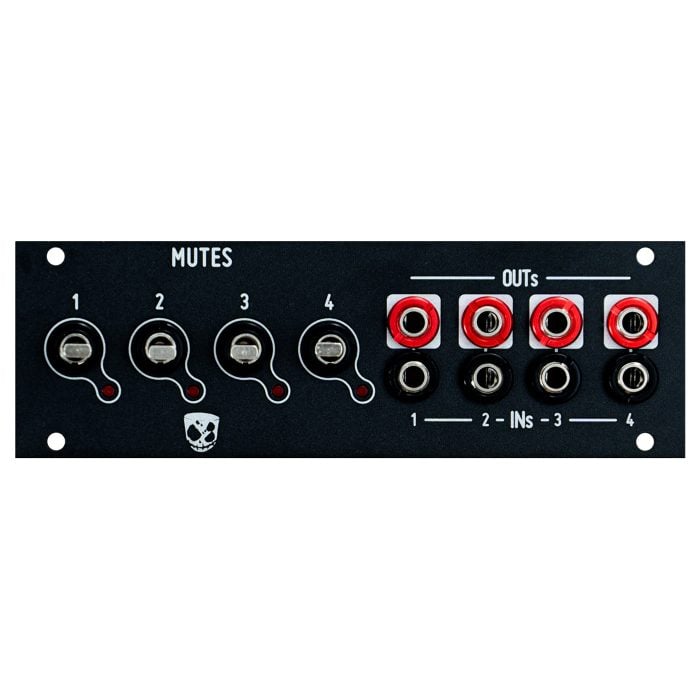

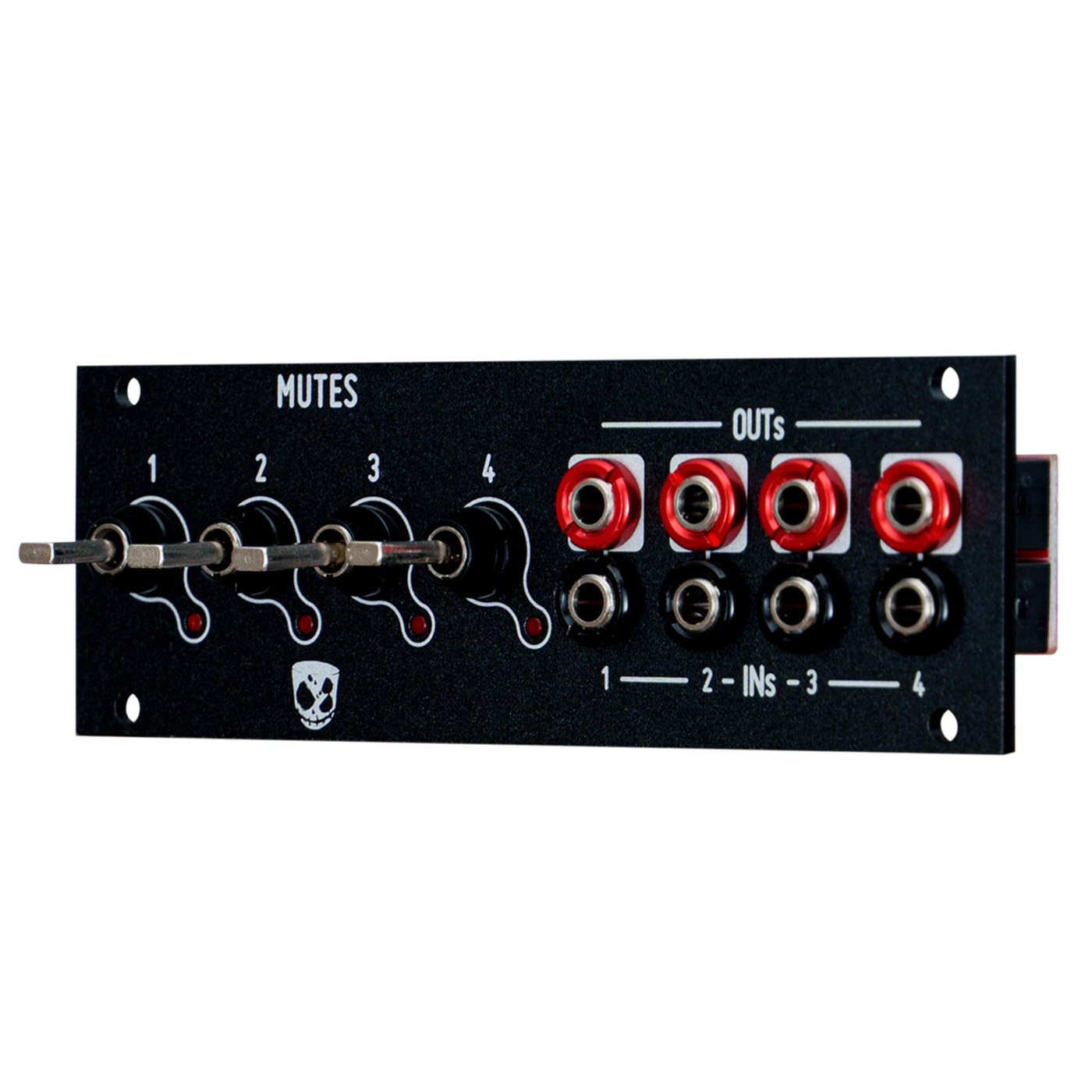

Mutes mk2 also now comes with a 1U alternative panel to sideways mount the module in compatible, Intellijel format 1U rows and cases. The panel is included in the box/kit with the normal 3U version.

  • LEDs to visualise signals
  • 3 way momentary – off – on switching
  • Buffered and cascading normalising of inputs
  • Black metal panel

Specs:

  • Width: 3U = 4 HP, 1U = 24HP
  • Depth: 32mm (including power connector)
  • Power Consumption: +12V: 20mA
  • Aluminium, heat-treated front panel

Mutes Mk2 – Build Document

Additional information

Weight 0.150 kg
